Bose 321 Series III User Manual

20
System Setup

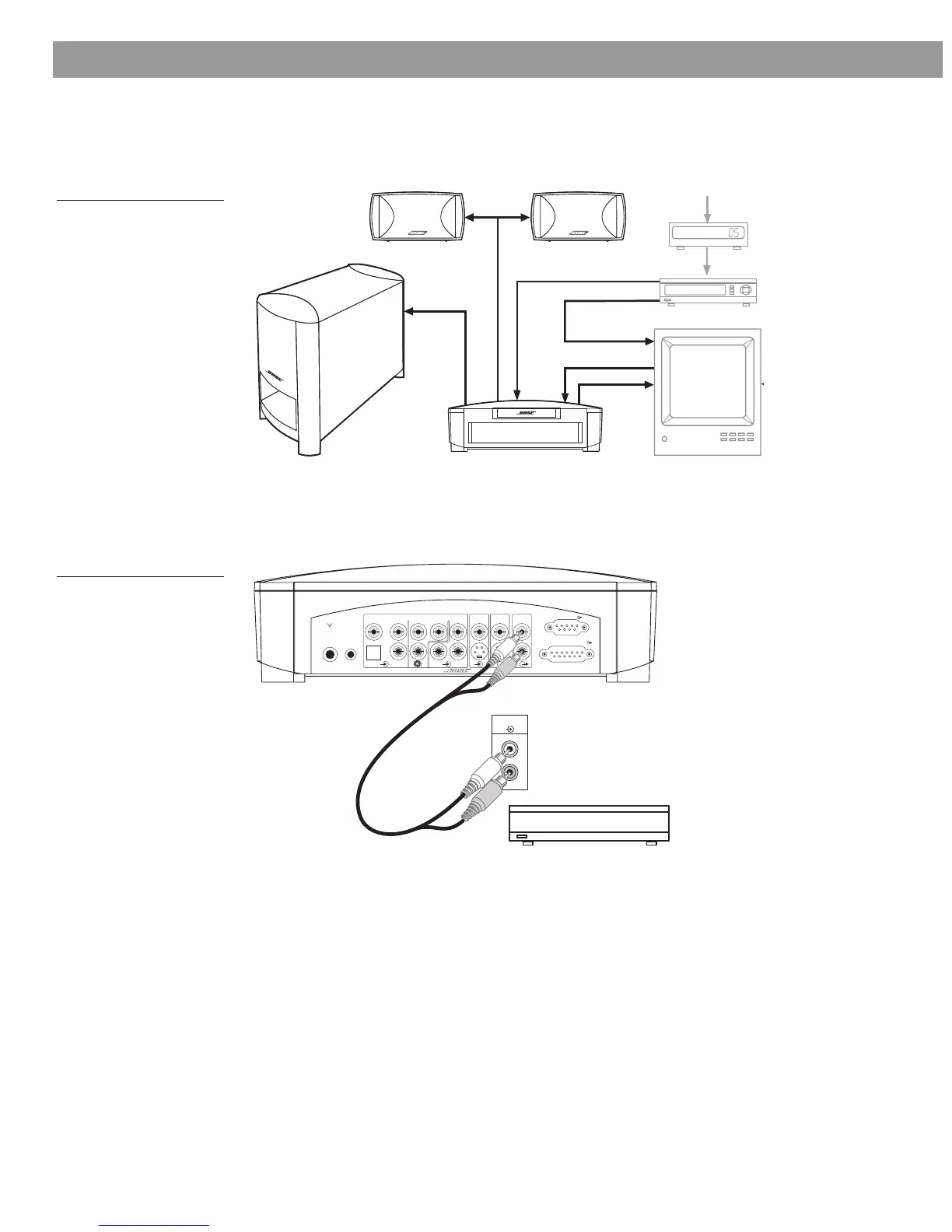

In Figure 20, the audio from both the cable or satellite box and the VCR is routed to the TV,
and the TV audio is connected to the media center. This delivers all of the video source sound
through one jack (for instance, VIDEO 1) on the media center. This allows you to use just one
button on your remote to select the sound from any video program you play.
Figure 20
The media center receives
all audio-for-video signals
directly from the TV
Connecting recording equipment
The rear panel of the media center provides audio output (RECORD) connections for audio
recording (Figure 21).
Figure 21
Record/playback connec-
tions
Input from cable
audio & video
audio & video
video
audio
audio
video
audio
Cable/sat
VCR
TV
RECORD
INPUT
L
R
L
R
D
D
L
R
C
S
C
S
L
R
VIDEO I VIDEO 2
AUX
AUDIO INPUT
AUDIO
OUTPUT
VIDEO
OUTPUT
VIDEO
INPUT
OPTICAL
75
Ω
FM
ANTENNA
AM
LOOP
ANTENNA
D
SPEAKERS
ACOUSTIMASS
MODULE
R
L
Recording component
Media center
AM256950_02_V.pdf • January 29, 2002

Bose 321 Series III Specifications

General

Subwoofer	Acoustimass module
Audio Formats	Dolby Digital, DTS
Remote Control	Yes
Number of Speakers	2
Outputs	Composite Video
Media Type	DVD
System Type	2.1-channel home theater system
