Setting Up
Connecting the speakers
CAUTION: Never connect the cube speakers directly to a receiver output. Always connect
them to the powered Acoustimass
®
module, then connect the module to the receiver.
CAUTION: Never use broken or frayed wiring, which can result in electrical shock or damage
to your system. The supplied cables are not intended for in-wall installation. Check local build-
ing codes or enlist a qualified installer.
Connecting front cube speakers to the Acoustimass module
Three individual 20-foot (6.1 m) speaker cables connect the center, right, and left front cube
speakers to the Acoustimass module (
Figure 5). Be sure to match the correct cable with the
corresponding speaker location. Front speaker cables have blue RCA connectors at one end
with L (left), R (right), or C (center) molded into the connectors. The other ends of the cables
have two wires. The red collars on the + wire are labeled LEFT, RIGHT, or CENTER.

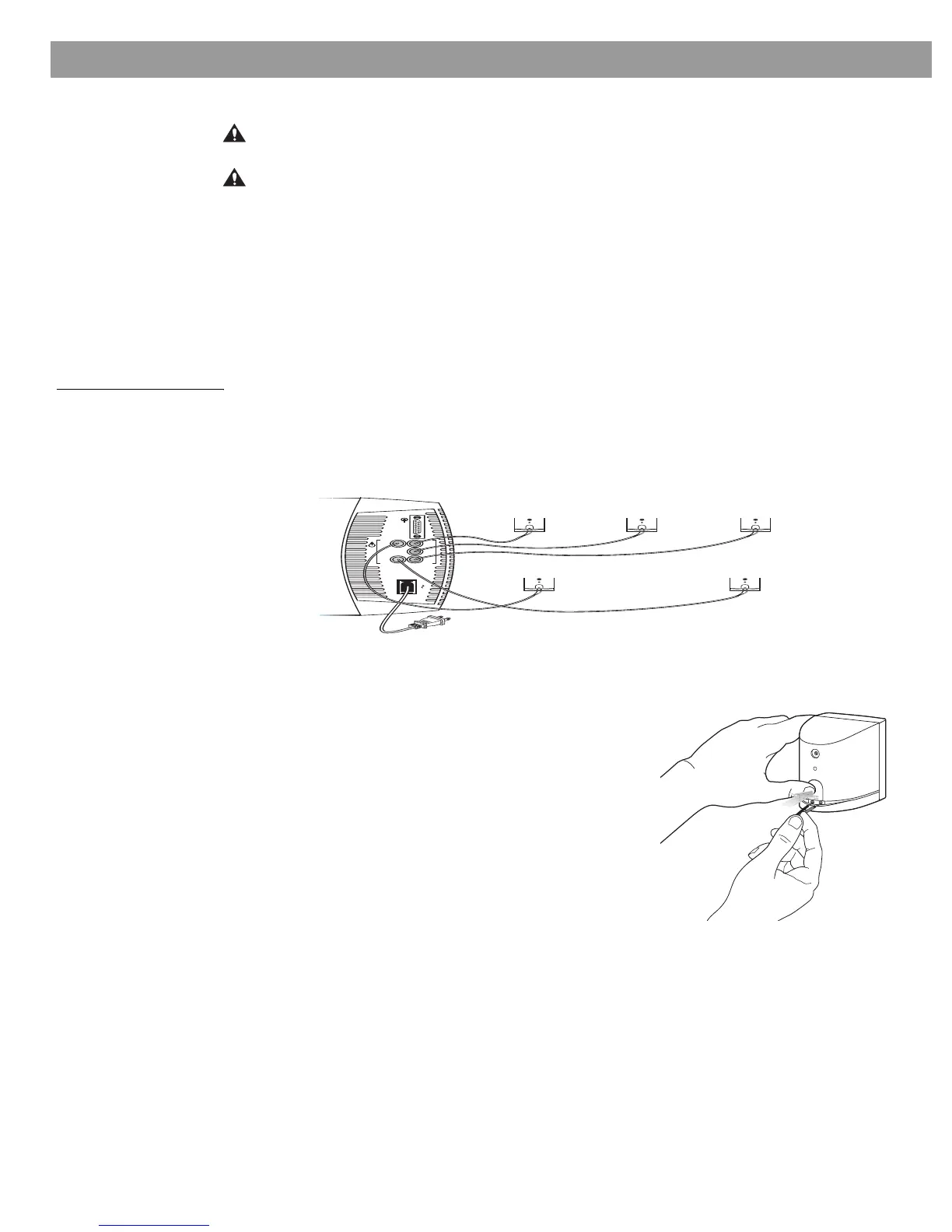

Figure 5
Cube speaker connections
to Acoustimass module
Audio Output
Left
Rear
Right
Rear
Left
Front
Center
Front
Right
Front
Audio Input

Bose Acoustimass 10 Series III Specifications

General

Speaker System	5.1
Satellite Speakers	4
Center Speaker	1
Subwoofer	1
Impedance	4-8 ohms
Satellite Speaker Weight	2.4 lbs
Power Handling	10-200 watts per channel
