Setting Up

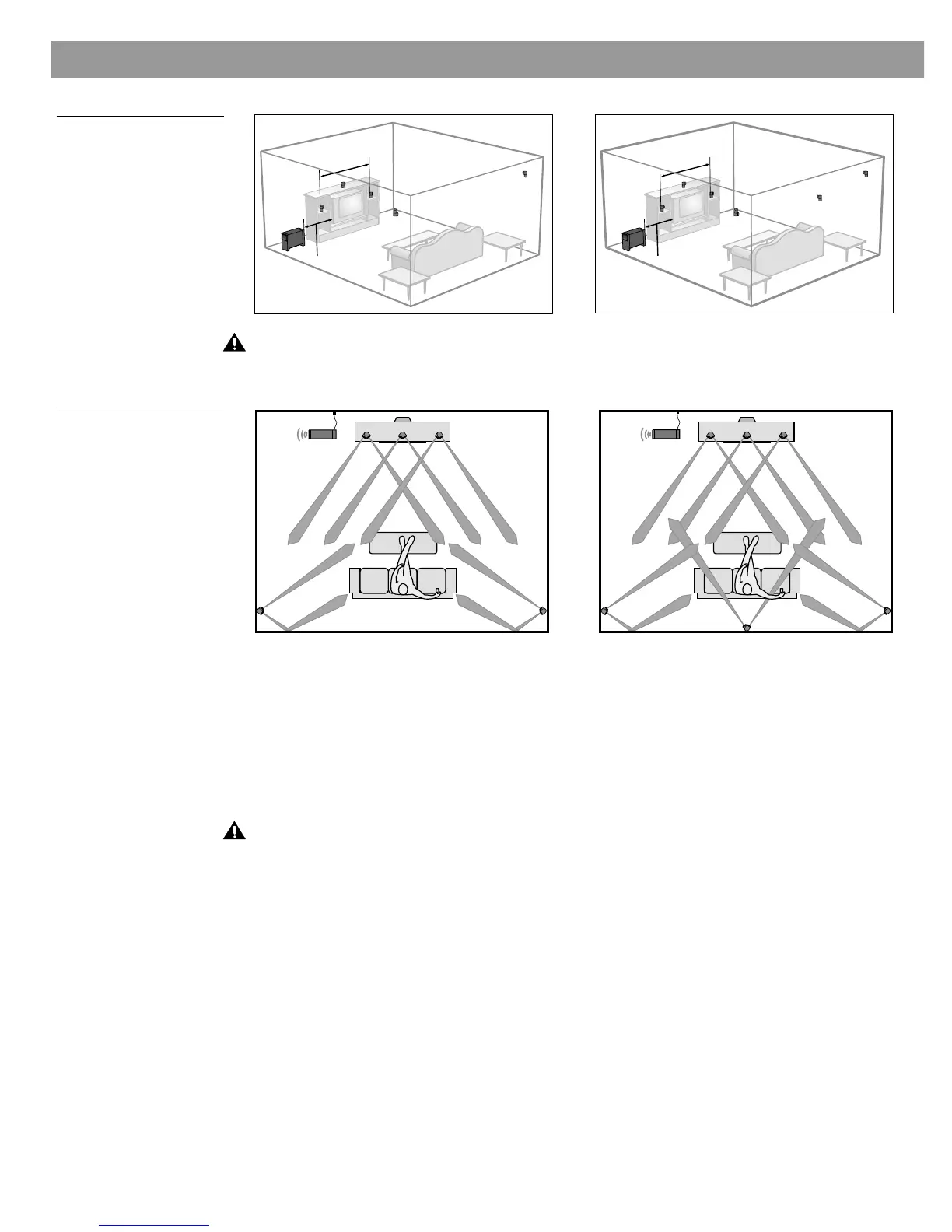

Figure 2
Suggested home theater
layouts
CAUTION:
To prevent interference, keep the Acoustimass module at least 2 feet (.6m) from
your TV set.
Figure 3
Sound patterns
Front center cube speaker array
The front center cube speaker array localizes action and dialogue on your screen. Sound
should seem to come from within the picture.
• Place the front center cube speaker array above, below, or on top of your television. If
below, be sure that it is not supporting the weight of the television in any way.
• Keep the front cube speaker array as close to the vertical center of the screen as possible,
for the most accurate dialogue reproduction.
CAUTION:
Choose a stable and level surface for your cube speaker arrays. Vibration can
cause them to move, particularly on smooth surfaces like marble, glass, or highly polished
wood. If you are placing the center cube speaker array on top of your television, use the set
of four rubber feet provided. You may obtain additional rubber feet (part number 178321-04),
free of charge, by contacting Bose
®
Customer Service. See the list of phone numbers
included with your system.
6
'
- 15'
(2 - 5m)
2'+
(0.6m+)
LR
RR
L
C
R
6
'
- 15'
(2 - 5m)
2'+
(0.6m+)
LR
RR
L
C
R
CR
For Acoustimass
®
15 Series II For Acoustimass 16
For Acoustimass 15 Series II For Acoustimass 16
AM264924_00 _V.pdf • August 13, 2002
To Next Page
