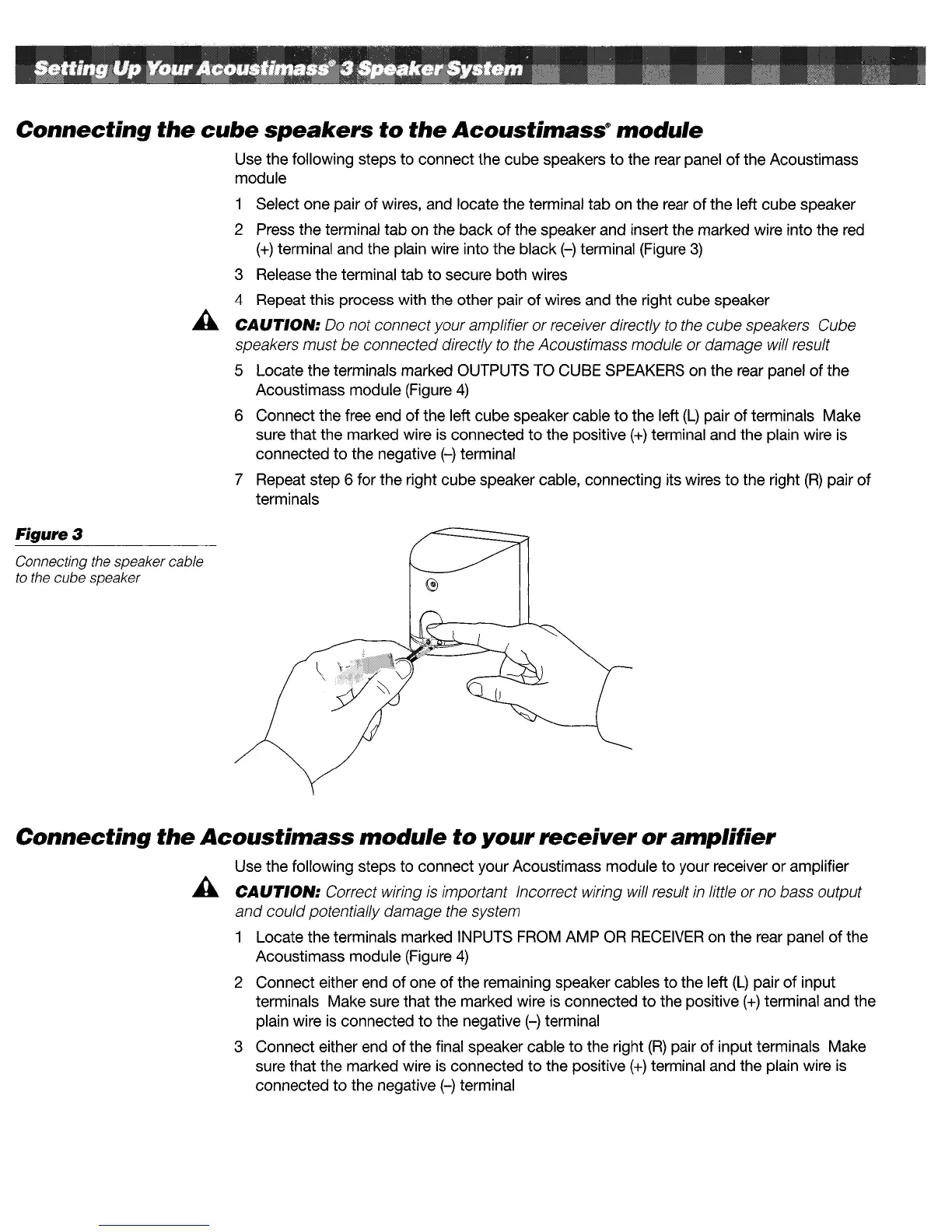

Connecting
the
cube
speakers
to
the
Acoustimass®
module
Use the following steps to connect the cube speakers to the rear panel of the Acoustimass
module
1 Select one pair of wires, and locate the terminal tab on the rear of the left cube speaker
2 Press the terminal tab on the back of the speaker and insert the marked wire into the red
(+)
terminal and the plain wire into the black (-) terminal (Figure
3)
3 Release the terminal tab to secure both wires
4 Repeat this process with the other pair of wires and the right cube speaker
A CAUTION: Do not connect your amplifier
or
receiver directly
to
the
cube
speakers Cube
speakers must be connected directly to the Acoustimass module
or
damage will result
5 Locate the terminals marked OUTPUTS TO CUBE SPEAKERS on the rear panel of the
Acoustimass module (Figure
4)
6 Connect the free end of the left cube speaker cable to the left
(L)
pair of terminals Make
sure that the marked wire
is
connected to the positive
(+)
terminal and the plain wire is
connected to the negative (-) terminal
7 Repeat step 6 for the right cube speaker cable, connecting its wires to the right
(R)
pair of
terminals
Figure
3
Connecting the speaker cable
to
the cube speaker
Connecting
the
Acoustimass
module
to
your
receiver
or
amplifier
Use the following steps to connect your Acoustimass module to your receiver or amplifier
A
CAUTION:
Correct wiring is important Incorrect wiring will result in little
or
no bass output
and
could
potentially damage the system
1 Locate the terminals marked INPUTS FROM AMP
OR
RECEIVER
on the rear panel of the
Acoustimass module (Figure
4)
2 Connect either end of one of the remaining speaker cables
to
the left
(L)
pair of input
terminals Make sure that the marked wire is connected
to
the positive
(+)
terminal and the
plain wire
is
connected
to
the negative (-) terminal
3 Connect either end of the final speaker cable to the right
(R)
pair of input terminals Make
sure that the marked wire
is
connected to the positive
(+)
terminal and the plain wire
is
connected to the negative (-) terminal
6
