Bose Acoustimass 5 Series User Manual

Acoustimass
®
5 Series III Loudspeaker System Crossover (see Figure 4)

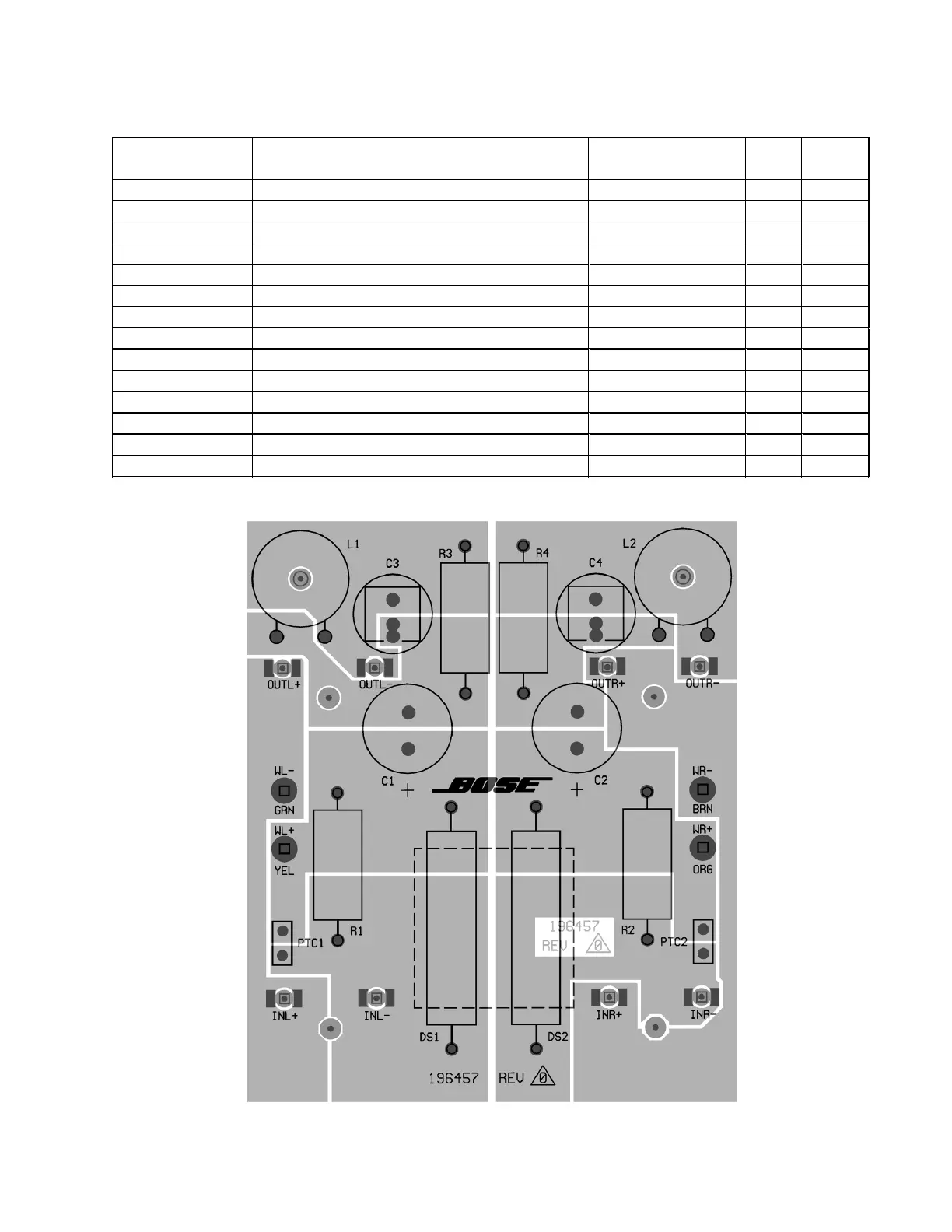

Figure 4. Acoustimass
®
5 Series III Loudspeaker System Crossover Layout Diagram
PART LIST
9
Reference
Designator
Description Part Number Qty. Note
R1, 2 39 Ohm, WW, 5W 132105-390 2
R3, 4 5.1 Ohm, WW, 5W, 10% 132105-5R1 2
C1, 2 47 uF, EL, BP, 85, 50V, 20% 136548 2
C3, 4 15 uF, EL, BP, 85, 50V, 20% 132079 2
DS1, 2 LAMP 141989 2
L1, 2 350 uH, INDUCTOR ASSY, 196463 2
PTC1, 2 SWITCH, POLY, 50V, 4mm 175233-1 2
- CONN, TERMINAL, 1 POS, FEMALE 147946 8
- PIN, GROOVED, .52x.34x.045 129000-5234 4
- TAPE, FOIL, W/LINER 134636 1
- WASHER, .125" #4, FLAT 108258-04 2
- WASHER, FLAT, .141", #5 108258-05 2
- SCREW, MACH, 4-40x1, PAN, XREC 103146-16 2
- NUT, HEX, 4-40 103234-440 2
