Bose ACOUSTIMASS PRO - Main Assembly Part List

10
Iten
Number
Part
Number
Description QTY Notes
1 131306 WOOFER ASSY, 12" 1
2 131321-5 DRIVER ASSY, 4.5" 6
3 129028-1 AMP ASSY, PROTON, 120V 1 1, 2
4 142941-AA GRILLE ASSY, PROTON, BLACK 1
5 131075-B1 GASKET, LRG, W/ADH 1
6 135983-08 SCREW, MACH, 8-32x.5, CAP, SOCK 18
7 135984-06 SCREW, MACH, 10-32x.375, BTN, SOC 8
8 135152-16 SCREW, TAPP, 10-10xl, FILL, XRC/SQ 24
9 137923-10 WASHER, FLAT, .219", #10 16
10 131380-B GASKET, PROTON 1
11 172672-12 SCREW, TAPP, 8-llx.75, PAN, XRC/SQ 2
12 133504-10 SCREW, MACH, .25-20x.625, CAP, HEX 1
13 131779 INDUCTOR, 14mH 1 3
14 131948 CAP, DUAL LUG, 240VAC, 10%, 25uF 1 3
15 135339-10 SCREW, MACH, 6-32x.625, PAN, XREC 1
16 121112 CONN, FUSE CLIP, l POS, FEM 2
17 111620 CLIP, CORD, ADH BACKED 1
18 137050 SCREW, THUMB, M8 x l.25x25mm 2
19 134907 WASHER, BEVELED, .255" 1
20 134908 WASHER, FLAT, .260" 2
MAIN ASSEMBLY PART LIST
WIRE HARNESS
ORANGE
BLACK
BLACK/ORANGE
RED
TO AMP GROUND
GREEN
13
14
15
16
11
13
12
19
20
20
14
15
SIDE VIEW OF
CROSSOVER
THUMB SCREW
MOUNT

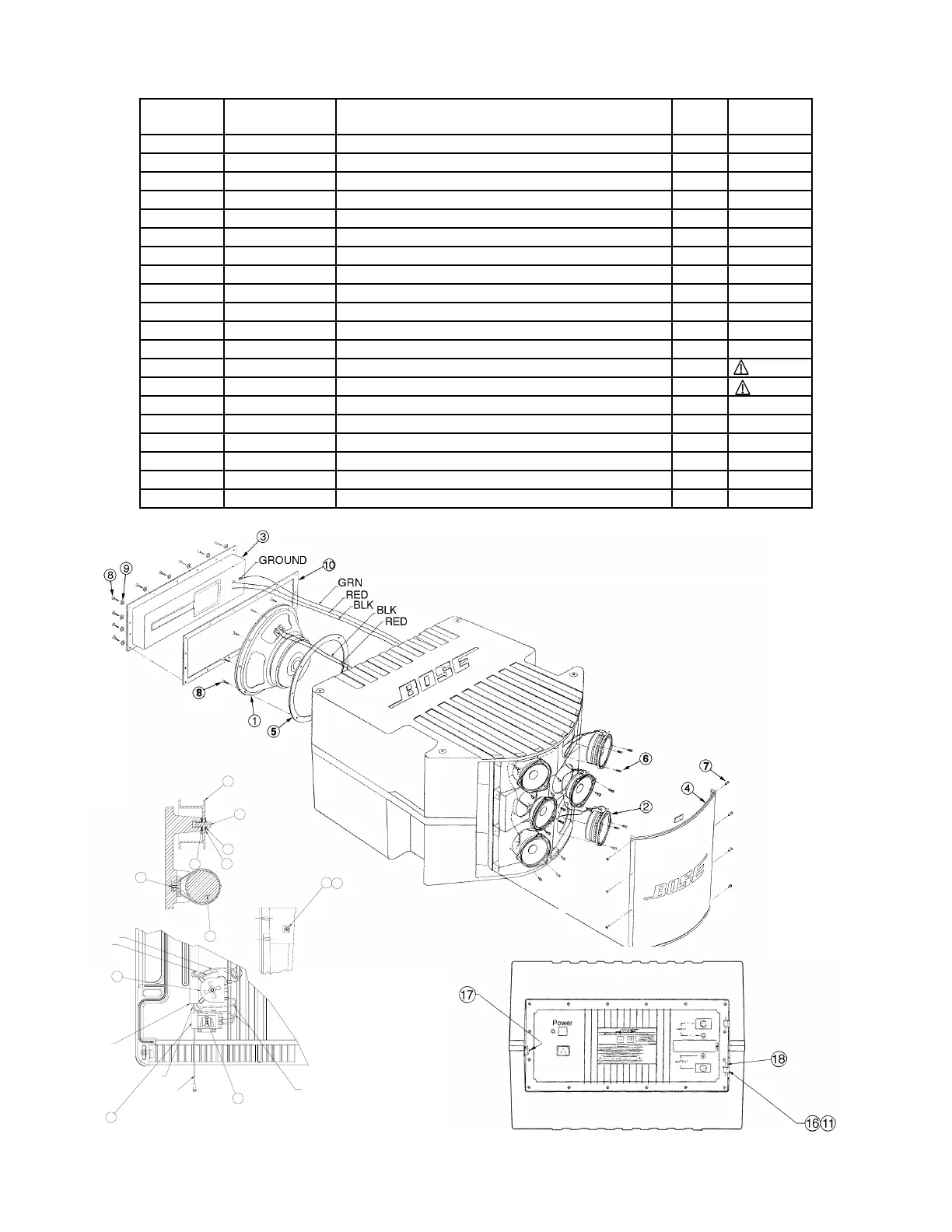

Figure 4. Exploded View
