2. At the other end of the speaker cable, separate the left and right speaker cords as much
as necessary to reach each speaker (Figure 9).

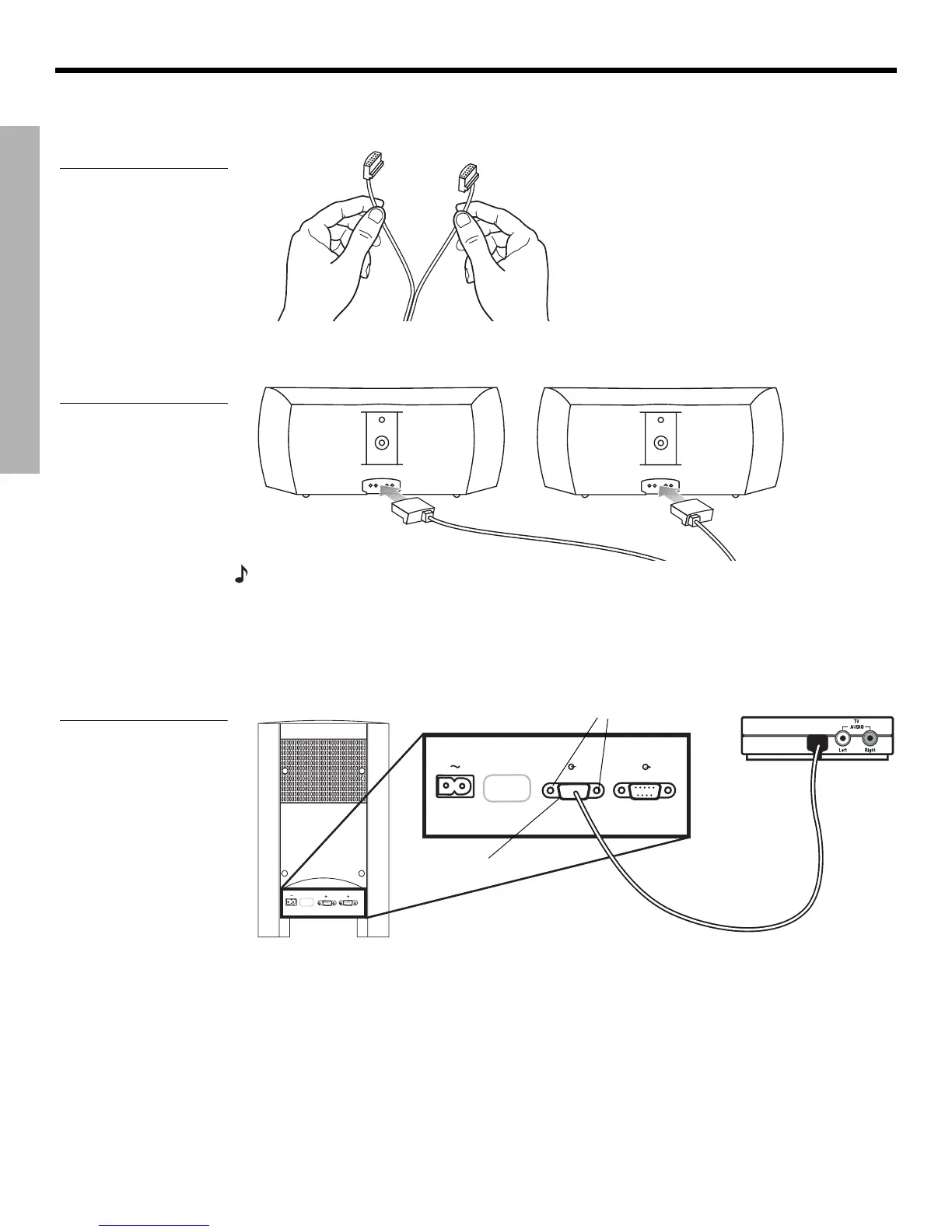

Figure 9
Separating left and right
speaker cords
3. Plug the LEFT speaker cable into the rear jack of the left speaker (Figure 10). Plug the
RIGHT speaker cable into the rear jack on the right speaker.
Figure 10
Left and right speaker
connections
Note: A longer speaker cable can be ordered from Bose, if you need it. To contact Bose, refer to
the address sheet included in the carton.
Connecting the Interface module to the Acoustimass
®
module
On the Acoustimass module, insert the Interface module connector into the input jack
(Figure 11). Firmly tighten the two thumbscrews on the connector.
Figure 11
Interface cable connection
R
IGHT
L
EF
T
Thumbscrews
Input jack
