SYSTEM SETUP
SYSTEM SETUP
EnglishFrançais Español
Note: On 220-240V models only, turn the Acoustimass
®
module POWER switch to on (l).

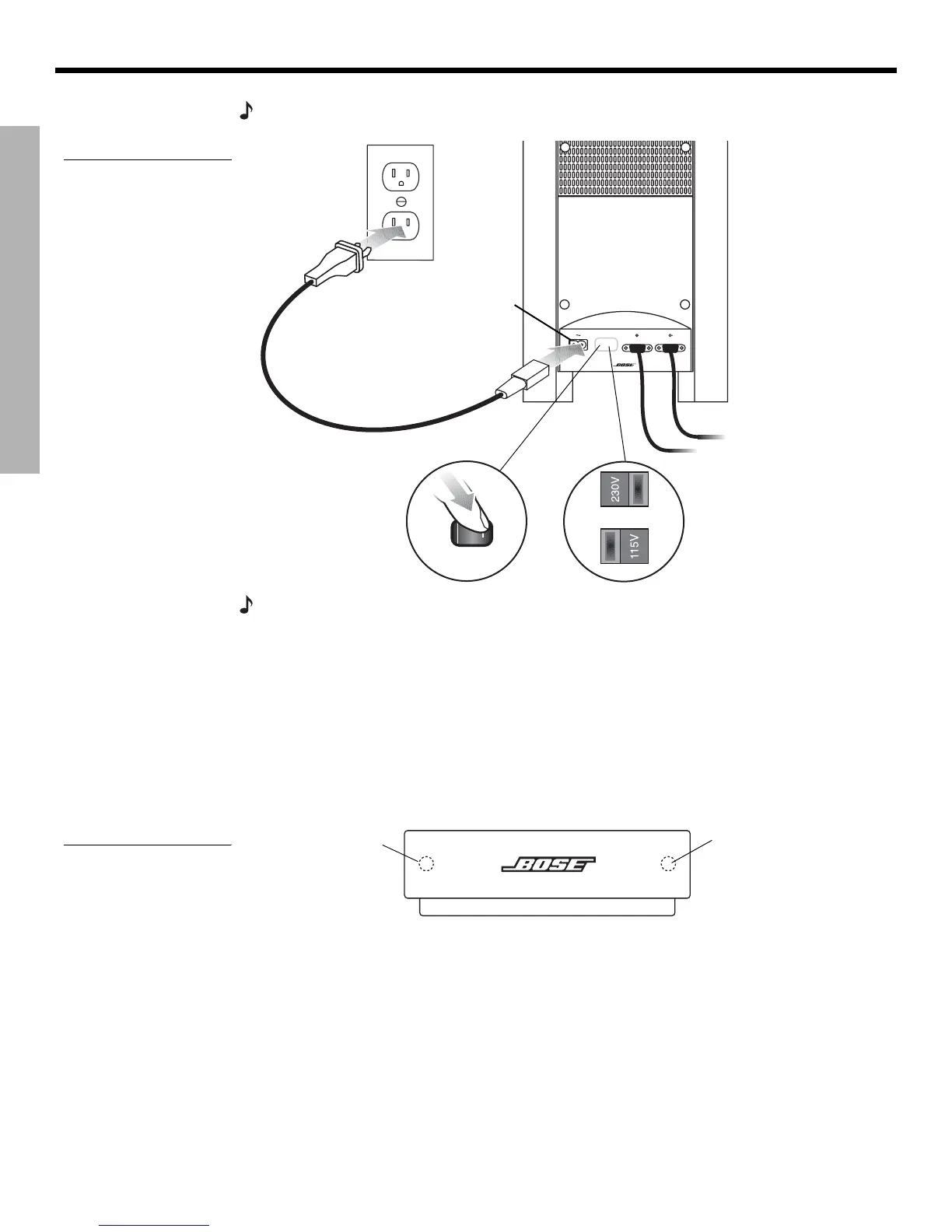

Figure 13
Power cord as the final
connection
Note: Bose recommends using a safety agency-approved surge protector on all electronic
equipment. Voltage variations and spikes can damage electronic components in any system.
A quality suppressor can eliminate the vast majority of failures attributed to surges and may be
purchased at electronics stores.
Standby and Power LED indicators
Once you have connected the CineMate
™
system to a power source, the red LED on the front
of the Interface module will light, indicating that the system is in Standby mode.
When the system is powered on, the green LED on the front of the Interface module will light.
The green LED will flash each time the Interface module receives a command from the
remote.
Figure 14
Standby and power LEDs
on the Interface module
S
P
E
A
K
E
R
S
AC power switch
Provided on 220-240V
rated systems only
115/230V selection switch
Provided on 115/230V
dual-voltage rated systems only
AC power
connector
Power LED (green) Standby LED (red)
