4
Product Description

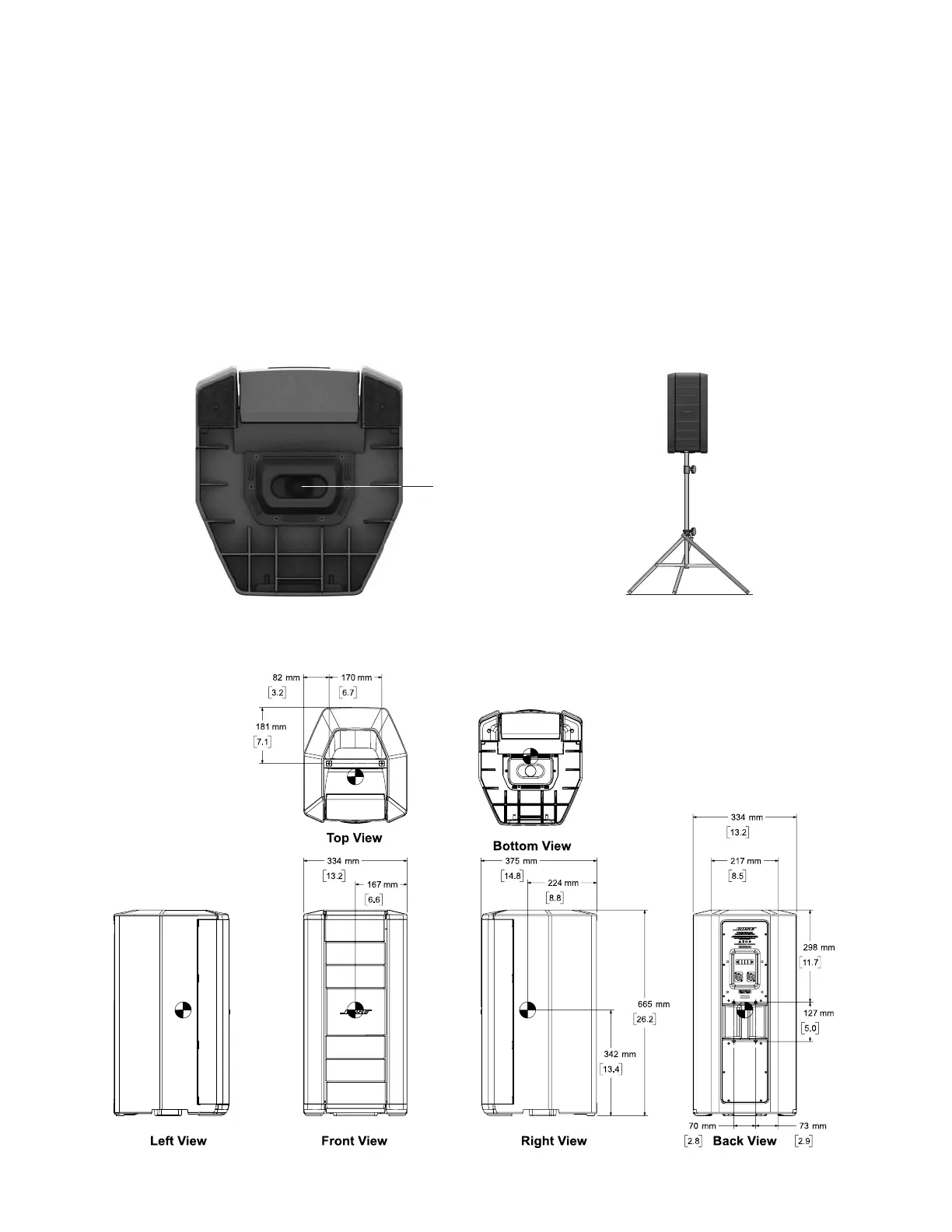

Loudspeaker Dimensions
Pole cup fits a
standard 35 mm
tripod stand
Using the F1 Model 812 Passive on a Tripod Stand
The bottom of the F1 Model 812 Passive loudspeaker includes pole cup for mounting the loud-
speaker on a tripod speaker stand. The pole cup fits a standard 35 mm post.
WARNING: The F1 Model 812 Passive loudspeaker is not compatible with the stand provided
with the F1 Subwoofer.
WARNING: Do not use the F1 Model 812 Passive loudspeaker with a tripod stand that is un-
stable. The loudspeaker is only designed for use on a 35 mm pole, and the tripod stand must be
capable of supporting a loudspeaker with a minimum weight of 47 lb (21.31 Kg) lbs and an
overall size of 26.2” H x 13.2” W x 14.8” D inches (665 mm H x 334 mm W x 373 mm). Using a
tripod stand that is not designed to support the size and mass of the F1 Model 812 Passive
loudspeaker may lead to an unstable and hazardous condition that could result in injury.
