Bose FreeSpace 3 Service Manual

9
MAIN PART LIST

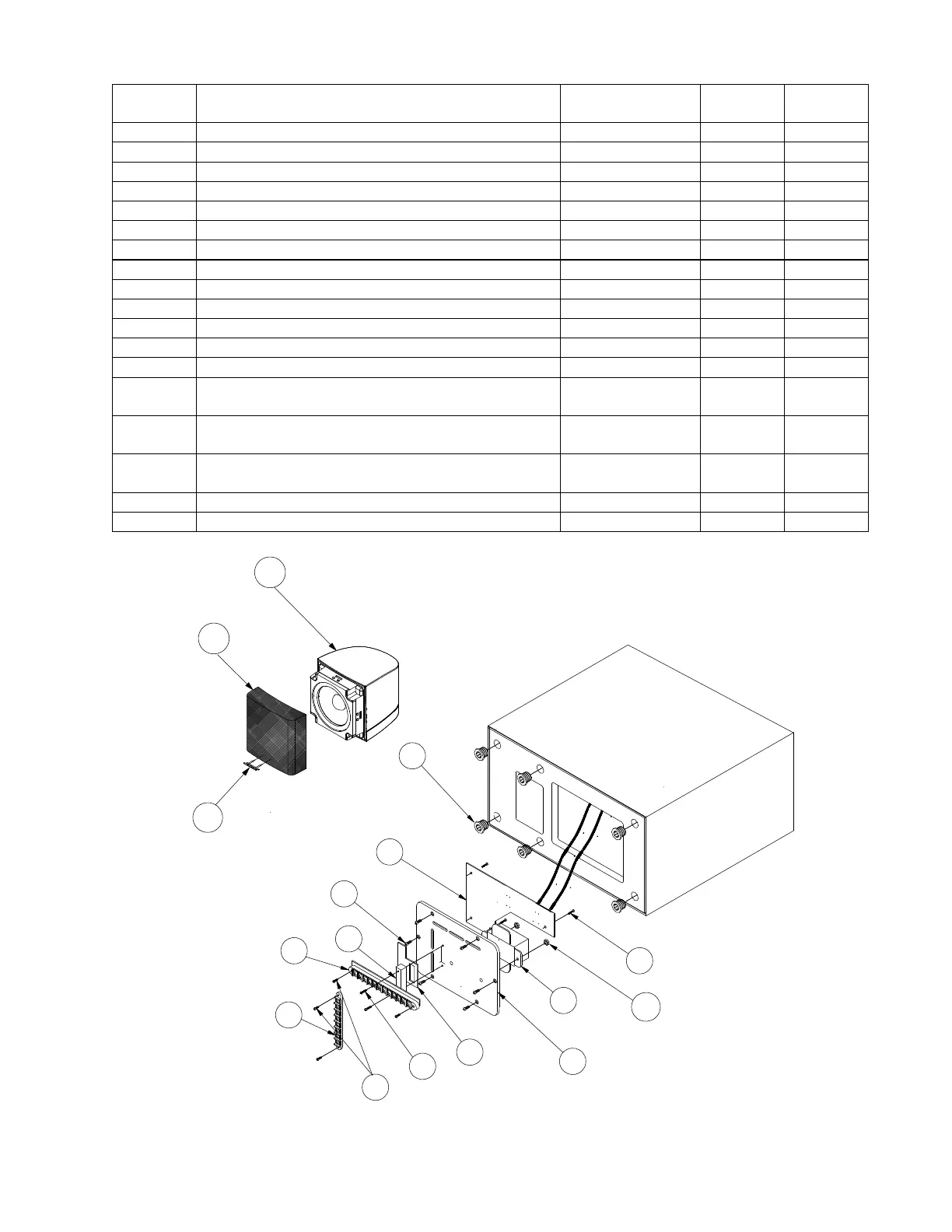

Figure 3. FreeSpace 3
®
Bass Module Exploded View
16
15
14
1
2
13
7
12
11
3
5
10
6
8
9
4
X2
X4
X6
X4
X2
X6
Item
Number
Description Part Number Qty. Note
1 SCREW, #8-32 x .25, PAN, XREC 290303-04 4 4
2 NUT, HEX, 8-32, KEPS 118260-08 2 4
3 TRANSFORMER, AUTO, 100W 291091-001 1
4 PLATE, I/O 292292 1
5 GASKET, TERMINAL BLOCK 187460 1
6 SCREW, TAPP, 6-20, PAN, XREC - 4
7 SCREW, TAPP, 6-20, PAN, XREC 290301-10 6 4
8 CONNECTOR, BARRIER, WR PINS 254416-08 1
9 CONNECTOR, BARRIER, WR PINS 254416-12 1
10 CONNECTOR, TERMINAL BLOCK STRIP 254416-03 1
11 SCREW, WOOD, 8-11x .75, FLAT, XREC 289388-012 10 4
12 CROSSOVER, ASSEMBLY 291027-001 1
13 GROMMET, GRILLE, .635” 117995 6
14 NAMEPLATE, 1”, DIAMOND CUT, BLACK
NAMEPLATE, 1”, DIAMOND CUT, WHITE
193250-11
193250-12
2
15 GRILLE ASSEMBLY, SATELLITE, BLACK
GRILLE ASSEMBLY, SATELLITE, WHITE
192410-019
192410-029
2
16 SATELLITE ASSEMBLY, BLACK
SATELLITE ASSEMBLY, WHITE
250490-149
150490-159
2
- BRACKET, BASSBOX 184892 1
- SCREW, ¼ x 20, 3/4L, HEX 179114-12 4 4

Bose FreeSpace 3 Specifications

General

Certification	CE
Product color	White
Housing material	Polystyrene (PS)
Recommended usage	-
Suitable for outdoor use	No
Driver diameter	64 mm
Number of drivers	1
Speaker placement	Tabletop/bookshelf, Wall-mountable
Audio output channels	2.0 channels
Impedance	5 Ω
Sensitivity	82 dB
Frequency range	50 - 16000 Hz
RMS rated power	- W
Package weight	1800 g
Transformer taps	25, 50, 100, 200 W
Harmonized System (HS) code	85182200

Weight and Dimensions

Depth	102 mm
Width	77 mm
Weight	800 g
Depth (with stand)	149 mm
