24
PARTS LIST NOTES
1. This part is not normally available from Customer Service. Approval from the Field Service
Manager is required before ordering.
2. Refer to the Panel Assembly Parts List for parts located on the panel.
3. Refer to the Electrical Parts List for components located on this PCB. Components
with 500 series designators are located on this PCB.
4. This part is not illustrated.
5. This part replaces the original hardware which consisted of: 2 threaded tie rods, P/N 131032-4,
and 4 acorn nuts, P/N 145550.
6. This part is critical for safety purposes. Failure to use a substitute replacement with the same
safety characteristics as the recommended replacement part might create shock,fire and/or other
hazards.
7. Current production units slated for US and Japanese markets do not have this hardware
mounted on the junction box.
8. Current European units should contain two owner's manuals: the original manual, P/N 145549,
and the German version of the manual, P/N 149629.
9. Refer to the Electrical Parts List for components located on the PCB assemblies. 100-400 series
designators are located on the Main PCB and 0-99 designators are located on the I/O PCB.

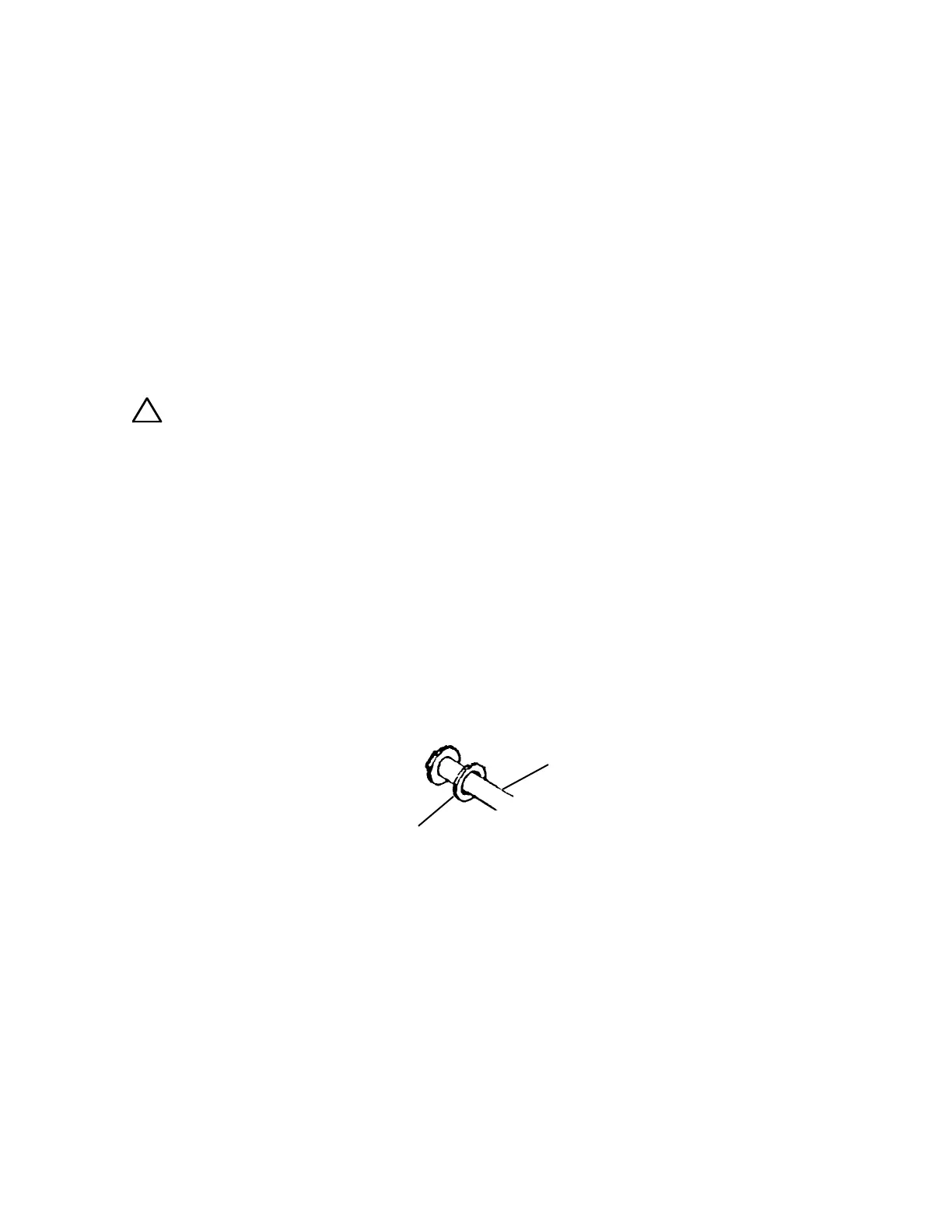

10.Recent production runs of the bass module have 1 washer added to each long screw (Item 3 on
the Bass Module Parts List). This part is not illustrated in Figure 4,but a figure is provided here for
reference.
!
Washer
Long Screw
