Bose FreeSpace DS 16S Service Manual

7
MAIN PART LIST
FreeSpace
®
DS16 SE Loudspeaker (Outdoor Version)

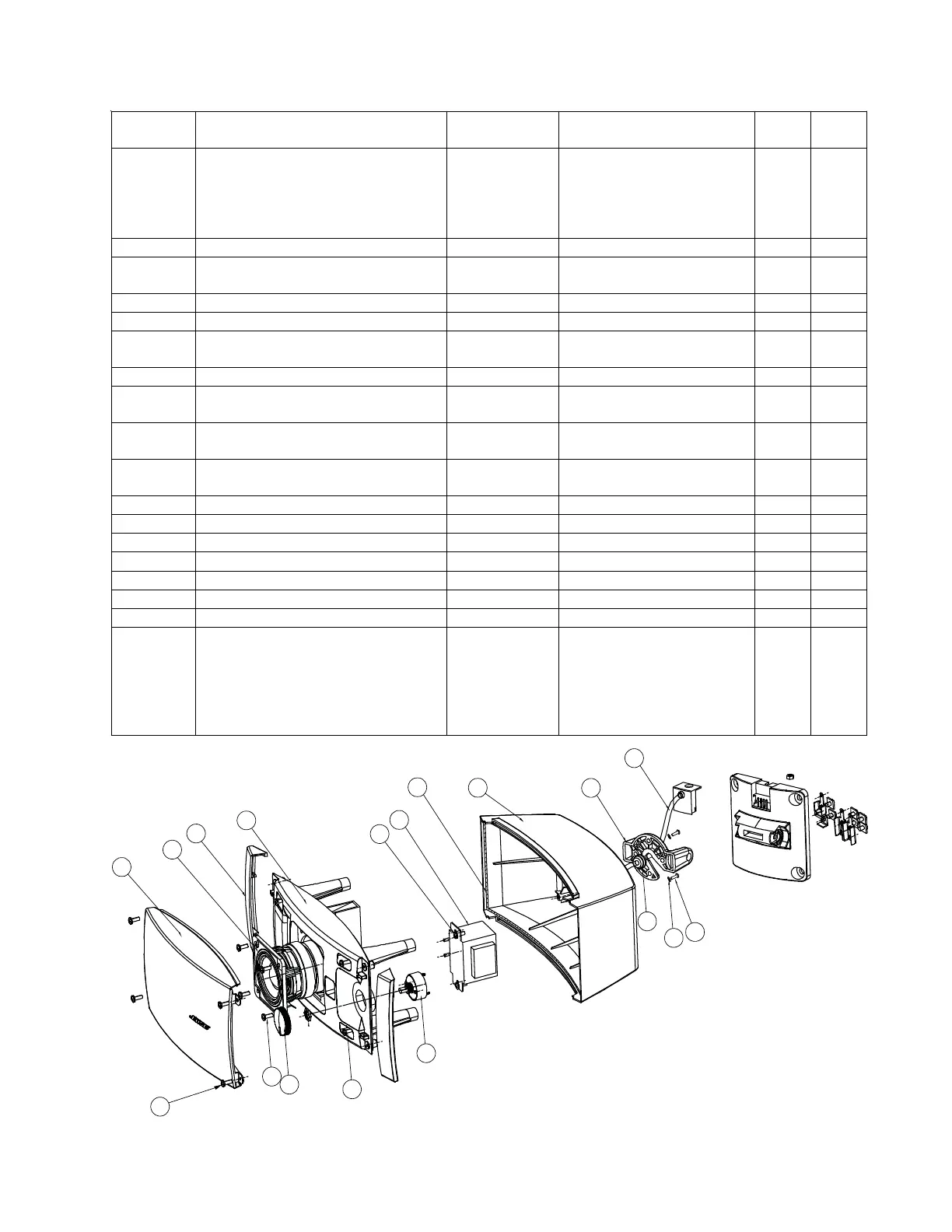

Figure 3. FreeSpace DS 16SE (Outdoor Version) Exploded View
1
2
3
4
5
6
7
8
9
10
11
12
13
14
5
15
5
16
Item
Number
Description Bose
®
Part
Number
Vendor Part Number Qty. Note
1 GRILLE, OUTDOOR, BLACK
GRILLE, OUTDOOR, WHITE
INCLUDES:
BOSE LOGO, BLACK or
BOSE LOGO, WHITE
298083-001
298083-002
303039-001
303039-002
SVC-MOESO11+GRIL
SVC-MOESO12+GRIL
-
-
1
2 DRIVER, 2.75” 298082 8900-3830+0 1
3 CAP, GRILLE, BLACK
CAP, GRILLE, WHITE
295897-001
295897-002
1467-7001+0
1467-7002+0
2
4 FRONT BAFFLE 295899-001 4155-1931+0 1 4
5 SCREW, TAPPING, M4X10 - 2954-4010+3000 10 4
6 XFMR/ROTARY SWITCH ASSY,
70/100V, 16W, 8 OHM
296602 SVC-AMOE11+TRANS 1
7 GASKET - 4149-0701+0 1 4
8 CABINET, REAR, BLACK
CABINET, REAR, WHITE
295895-003
295895-004
1467-6903+0
1467-6904+0
1 4
9 BRACKET, MOUNTING, BLK
BRACKET, MOUNTING, WHT
295892-001
295892-002
4155-1993+0
4155-1994+0
1
10 WIRE-CONN, 4P, P3.96, BLK 295894-001 7012-7710+0 1
WIRE-CONN, 4P, P3.96, WHT 295894-002 7012-7711+0
11 SCREW, M4X14, BLACK - 2904-4014+3000 2 4
12 WASHER - 2600-4008+0783 2 4
13 GROMMET, RUBBER, BLK 295893-001 4157-1071+0 1
14 ROTARY SWITCH - 5200-4933+0 1 4
15 TAP KNOB 295898-001 2447-3601+0 1
15 NUT, HEX, ROTARY SWITCH - - 1 4
16 SCREW, TAPPING, M3X10 - 2954-3010+3000 4 4
- BOSE LOGO ASSY, BLACK
BOSE LOGO ASSY, WHITE
INCLUDES:
CUP WASHER, PLASTIC
SPRING
WASHER, SELF LOCKING
303039-001
303039-002
-
-
-
-
-
2612-8520+1401
2510-3931+0
2610-4003+1203
1
4
4
4
