MAIN PART LIST
Basic Elevation Bracket (included with loudspeaker)

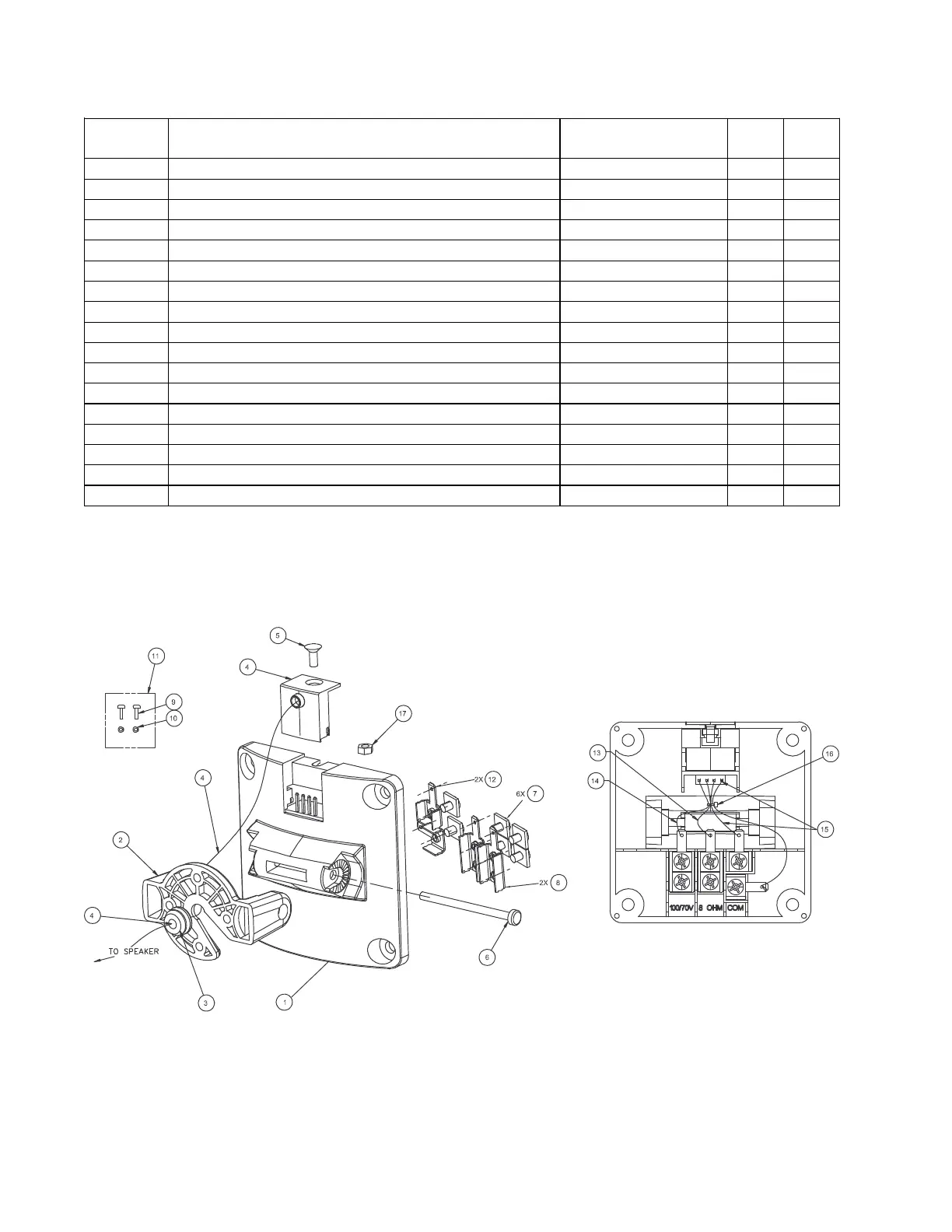

Figure 4. Basic Elevation Bracket Exploded View
Item
Number
Description Vendor Part
Number
Qty. Note
1 WALL MOUNT, PC/ABS 4155-1981+0 1 4
2 SPEAKER MOUNT, PC/ABS 4155-1991+0 1 4
3 GROMMET, RUBBER SBR 4157-1071+0 1 4
4 CONNECTOR, 4-PIN, PVC 7012-7710+0 1 4
5 SCREW, M4x8mm, FLAT HEAD 2901-4008+3000 1 4
6 SCREW, M4x60mm, PAN HEAD, SEMS 2900-4060+3000 1 4
7 SCREW, 8-32, WITH SQUARE WASHER 2AZZ-0003+ZZZZ 6 4
8 TERMINAL, DOUBLE HOLE, BRASS 4135-6481+0 2 4
9 SCREW, M4x20mm, 4mm SOCKET HEAD 2900-4020+3000 2 4
10 WASHER, M4, LOCK 2600-4008+0783 2 4
11 BAG, POLY 1497-0032+0 1 4
12 TERMINAL, SINGLE HOLE, BRASS 4135-6491+1 2 4
13 WIRE, INSULATED, 18 AWG, UL1007, BLUE 1681-0060+A 1 4
14 WIRE, INSULATED, 18 AWG, UL1007, YELLOW 1681-0040+A 1 4
15 WIRE, INSULATED, 18 AWG, UL1007, WHITE 1681-0090+A 2 4
16 CABLE TIE, 2.6x120mm 6360-1341+0 1 4
17 NUT, HEX, M4 2640-4030+0703 1 4
