Bose FreeSpace FS4SE User Manual

4 • English FreeSpace FS4SE • Installation Guide
PRO.BOSE.COM
Setup
Installation Options
Installation Options and Accessories
q Mounting bracket (included)
w WBPWR-50 pan-and-tilt bracket (optional; for outdoors)
e RMUBRKT1 pan-and-tilt bracket (optional; for indoors)
r CMBS2 ceiling-mount bracket (optional; for indoors only)

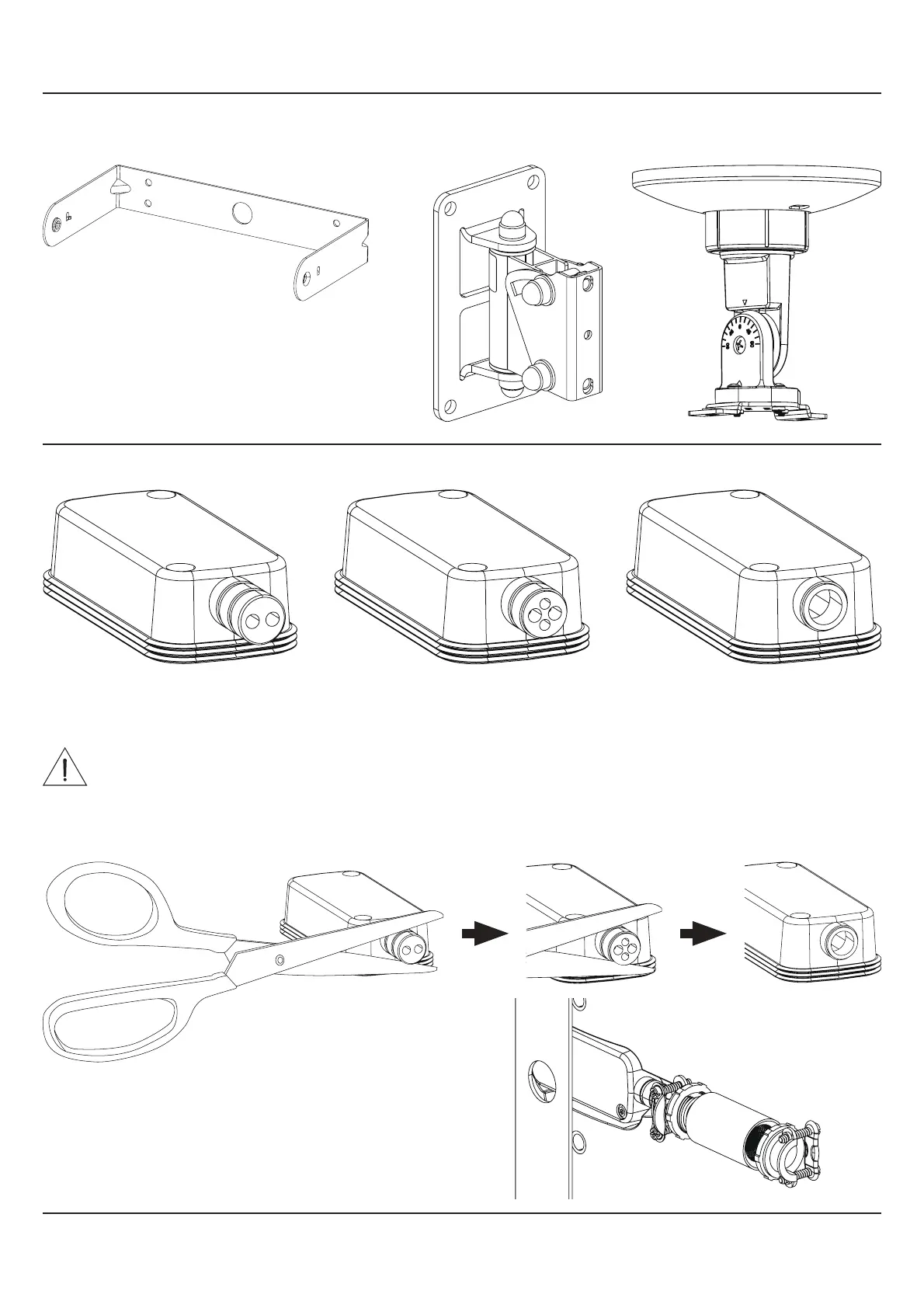

Preparing the Input Cover
The input cover is designed for three dierent wiring scenarios (see above). To change the configuration of the input cover to support
your wiring scenario, cut along the perforation on the rubber conduit. Use one ½-inch to ½-inch threaded coupling and two ⅜-inch trade
size conduit fittings for ½-inch knockouts (see diagram below).
CAUTION: Do not use the wide open wiring scenario when installing the input cover with a flexible conduit.
CAUTION: To prevent water ingress, do not install the input cover facing upward.
Note: It is the installer's responsibility to seal against water ingress into the Euroblock connector. Use outdoor or marine-grade silicone to
seal all wiring connections to ensure a tight seal.
Note: Flexible conduits and couplings must be UL Listed, suitable for the application, and installed in accordance with the local authorities
having jurisdiction.
Single In In and Out Wide Open
q ew r

Bose FreeSpace FS4SE Specifications

General

Backlight	No
Certification	IP55 UL 1480, ULC-S541
Product color	White
Housing material	Plastic, Steel
Recommended usage	Universal
Suitable for outdoor use	Yes
Operating temperature (T-T)	-25 - 70 °C
Package weight	8320 g
Connectivity technology	Wired
Impedance	8 Ω
Frequency range	70 - 19000 Hz
RMS rated power	40 W
Peak Music Power Output (PMPO)	160 W
Speaker type	Full range
Driver diameter	114 mm
Speaker placement	Tabletop/bookshelf, Wall-mountable
Audio output channels	- channels
Number of woofer drivers	1
Woofer diameter (imperial)	4.5 \
Transformer taps	2.5, 5, 10, 20, 40 W

Weight and Dimensions

Depth	174 mm
Width	171 mm
Height	277 mm
Weight	3420 g
