English • 7Installation Guide • FreeSpace FS4SE
PRO.BOSE.COM
Installation

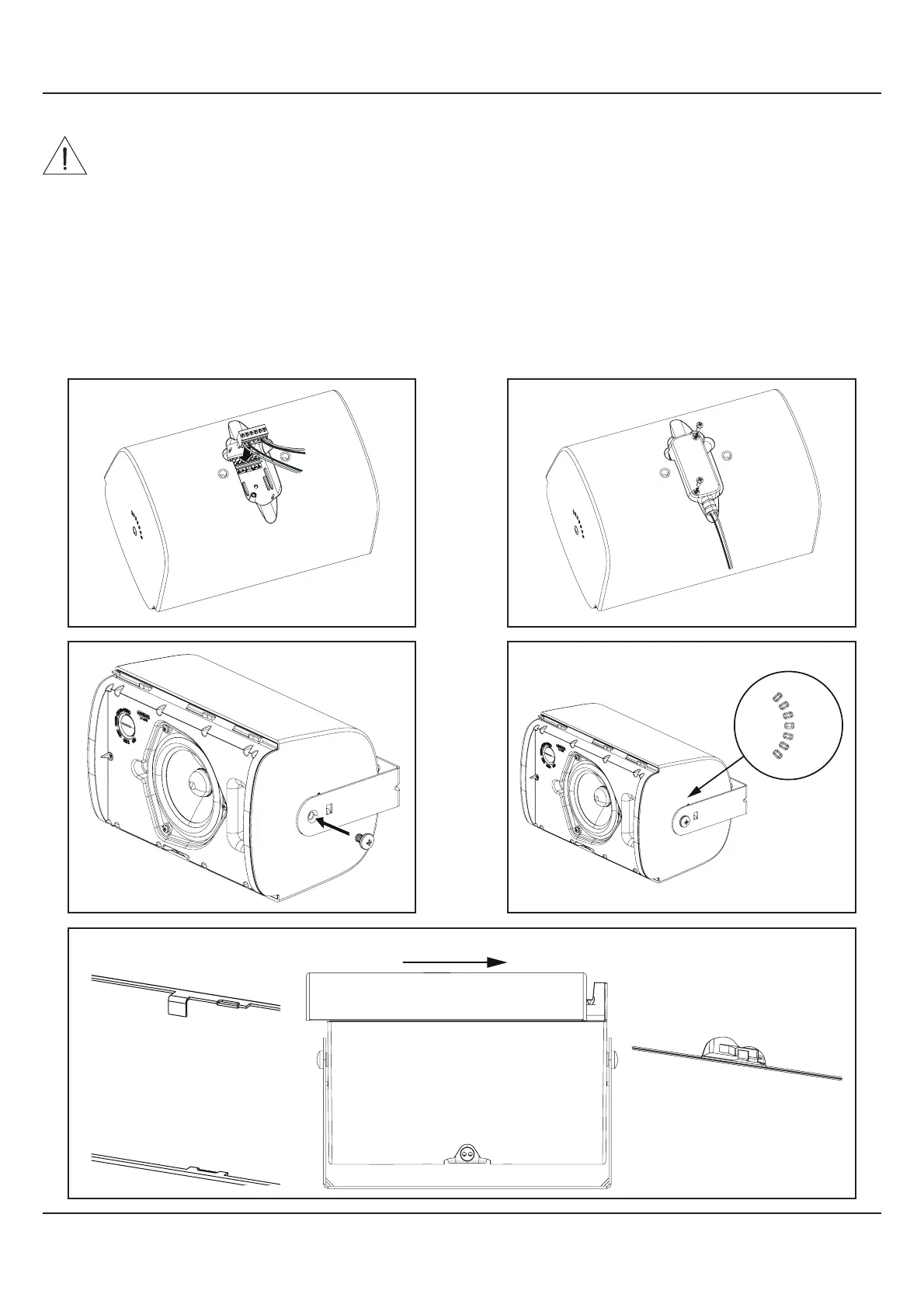

Installing the Loudspeaker
WARNING: Failure to follow the steps below could lead to an unsafe mounting condition, which could create a falling hazard.
1. Attach the wired connector to the loudspeaker.
2. Place the input cover over the connector and press it firmly against the loudspeaker to create a tight seal. Use the two included input
cover screws to secure the input cover. See Preparing the Input Cover on page 4.
3. Hold the loudspeaker in between the bracket arms and insert one of the included bracket screws into each side of the loudspeaker
using the threaded inserts.
4. Align the pins on the mounting bracket with the angle slots appropriate for your installation and snap the bracket into the loudspeaker.
Note: The angle of the loudspeaker can be adjusted to 0°, ±15°, ±30°, or ±45°.
Note: In outdoor applications, do not install the loudspeaker with an upward pitch.
5. Tighten the screws on both sides of the loudspeaker to secure the loudspeaker to the mounting bracket. Do not over-torque the screw.
Note: Before attaching the grille, adjust the loudspeaker tap settings to the appropriate setting for the installation. See Loudspeaker
Settings on page 5.
6. Locate the extended grille tab on the inside of the grille. Attach the grille by sliding it into place. Be sure the extended grille tab
attaches to the grille lock on the loudspeaker enclosure.
w
e
q
0°
15°
30°
30°
45°
45°
15°
r
y
