Bose II Series

ENGLISH

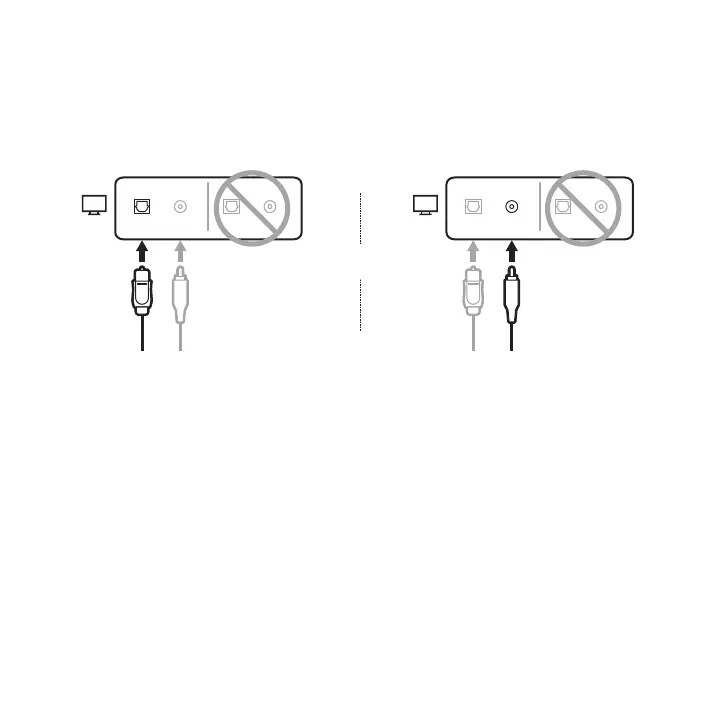

Option 1 (Preferred): Optical
a. Remove the caps and insert one end of
the optical cable into the Audio OUT
panel on your TV.
b. Insert the other end into the Optical port
on the soundbar.
CAUTION: Inserting the plug with the cap
on or in the wrong orientation
can damage the plug and/or
the port.
Option 2 (Not provided): Coaxial
If your TV doesn’t have an optical port, use
the coaxial cable.
a. Insert one end of the coaxial cable into
the Audio OUT panel on your TV.
b. Insert the other end into the Coaxial port
on the soundbar.
Audio OUT
Optical Coaxial
Audio IN
Optical Coaxial
Audio OUT
Optical Coaxial
Audio IN
Optical Coaxial
OR
b
Choose an audio cable and connect to your TV
