INTRODUCTION
What
distinguishes
the
two
units
The connection panel on each unit identifies it by name: TRANSMITIER or
RECEIVER.
Two
Bose®
link jacks and a Channel button further distinguish the transmitter.
For compatibility, the
two
units have a matching Setup Code, set at the factory with both
switches
in
the "up" position (Figure
2).
A Status
LED
lights when each unit is plugged
in
and
the
two
units are communicating.
Setup
Code
Receiver
Setup
Code
Transmitter
Status LED
-------'
;
Note:
For information on the meaning
of
the different Status
LEO
lights, refer to
"Check the indicators
and
settings" on page
8.

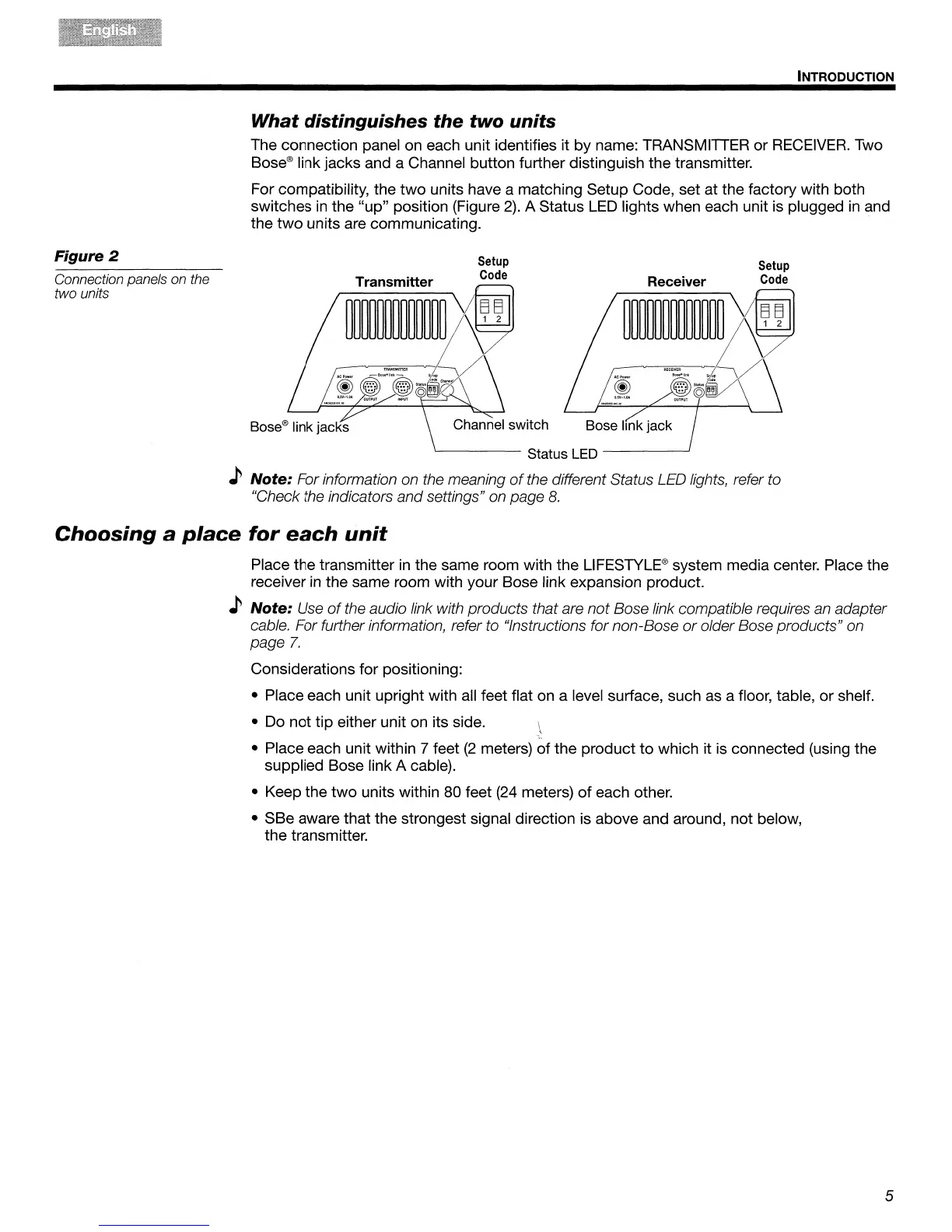

Figure
2
Connection panels on the
two units
Choosing
a
place
for
each
unit
Place the transmitter
in
the same room with the
LIFESTYLE®
system media center. Place the
receiver
in
the same room with your Bose link expansion product.
;
Note:
Use
of
the audio link with products that are
not
Bose link compatible requires an adapter
cable. For further information, refer to "Instructions for non-Bose
or
older Bose products" on
page
7.
Considerations for positioning:
• Place each unit upright with all feet flat
on
a level surface, such as a floor, table, or shelf.
• Do not tip either unit on its side.
.\
• Place each unit within 7 feet
(2
meters) of the product
to
which it is connected (using the
supplied Bose link A cable).
• Keep the
two
units within 80 feet
(24
meters)
of
each other.
• SBe aware that the strongest signal direction is above and around, not below,
the transmitter.
