SETUP
For
the
receiver
1.
Connect one end
of
the second
Bose®
link A cable
to
the jack labeled
Bose®
link
OUTPUT on the receiver.
2.
Connect the other end
of
the cable
to
the Bose link Input jack on the expansion room
system, amplifier, or powered speaker (Figure
5).

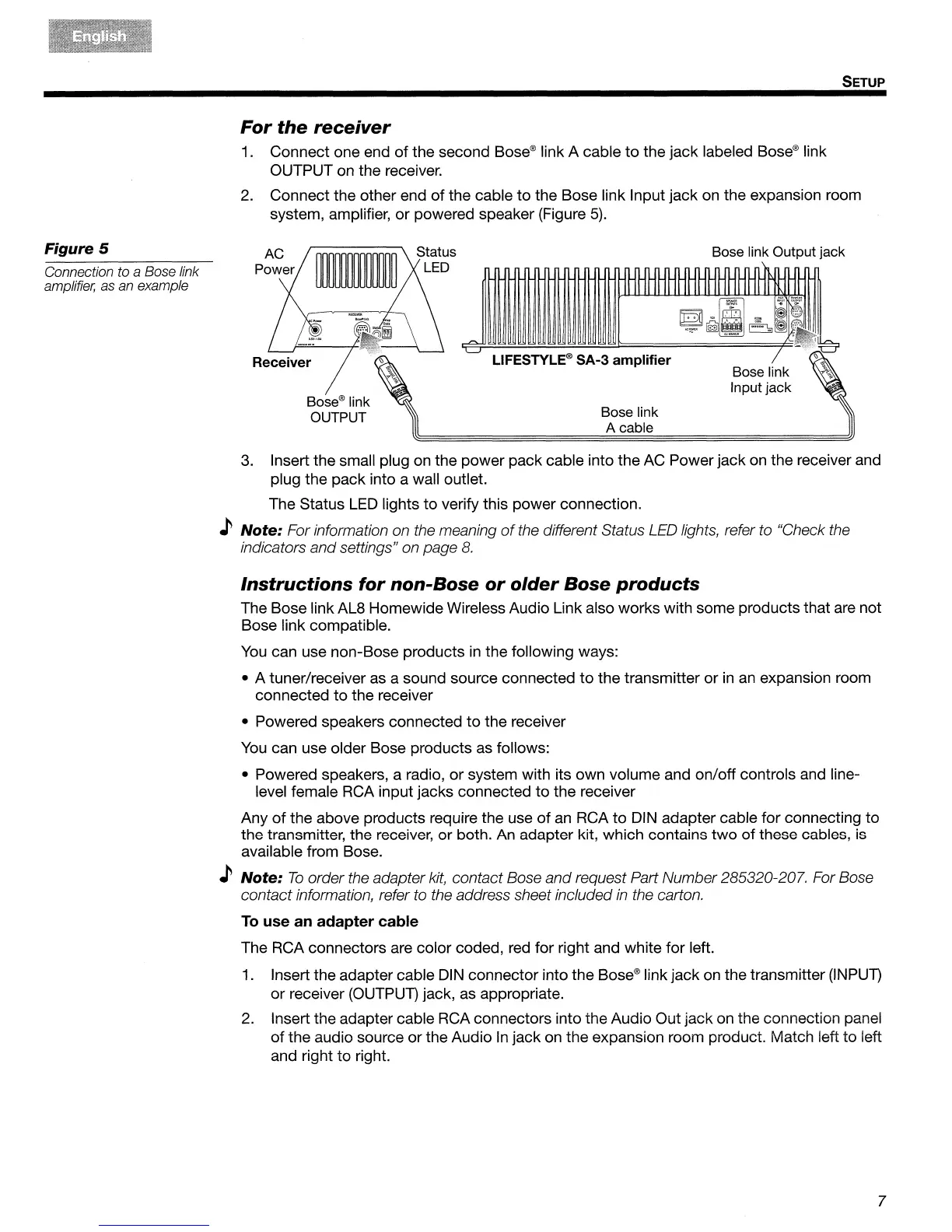

Figure
5
Connection to a Bose link
amplifier,
as an example
AC
Power
Bose®
link
OUTPUT
LIFESTYLE®
SA-3
amplifier
Bose link
A cable
Bose link Output jack
Bose link
Input jack
3.
Insert the small plug on the power pack cable into the AC Power jack on the receiver and
plug the pack into a wall outlet.
The Status
LED
lights
to
verify this power connection.
J
Note:
For information on the meaning
of
the different Status
LEO
lights, refer to "Check the
indicators
and
settings" on page
8.
Instructions
for
non-Bose
or
older
Bose
products
The Bose link
ALB
Homewide Wireless Audio Link also works with some products that are not
Bose link compatible.
You
can use non-Bose products
in
the following ways:
• A tuner/receiver as a sound source connected
to
the transmitter or
in
an
expansion room
connected
to
the receiver
• Powered speakers connected
to
the receiver
You
can use older Bose products as follows:
• Powered speakers, a radio, or system with its own volume and on/off controls and line-
level female RCA input jacks connected to the receiver
Any
of
the above products require the use
of
an
RCA
to
DIN adapter cable for connecting to
the transmitter, the receiver, or both.
An
adapter kit, which contains
two
of
these cables, is
available from Bose.
J
Note:
To
order the adapter
kit,
contact Bose
and
request Part Number 285320-207. For Bose
contact information, refer to the address sheet included
in
the carton.
To
use
an
adapter
cable
The RCA connectors are color coded, red for right and white for left.
1.
Insert the adapter cable DIN connector into the
Bose®
link jack on the transmitter (INPUT)
or receiver (OUTPUT) jack, as appropriate.
2.
Insert the adapter cable RCA connectors into the Audio Out jack on the connection panel
of
the audio source or the Audio
In
jack on the expansion room product. Match left to left
and right to right.
7
