SETUP
Bose®
link
Bose®
link
INPUT OUTPUT
,..------'""""\
Expansion Room
Product
Audio Input
L
~
Source
Product
Audio Output
L~
R R

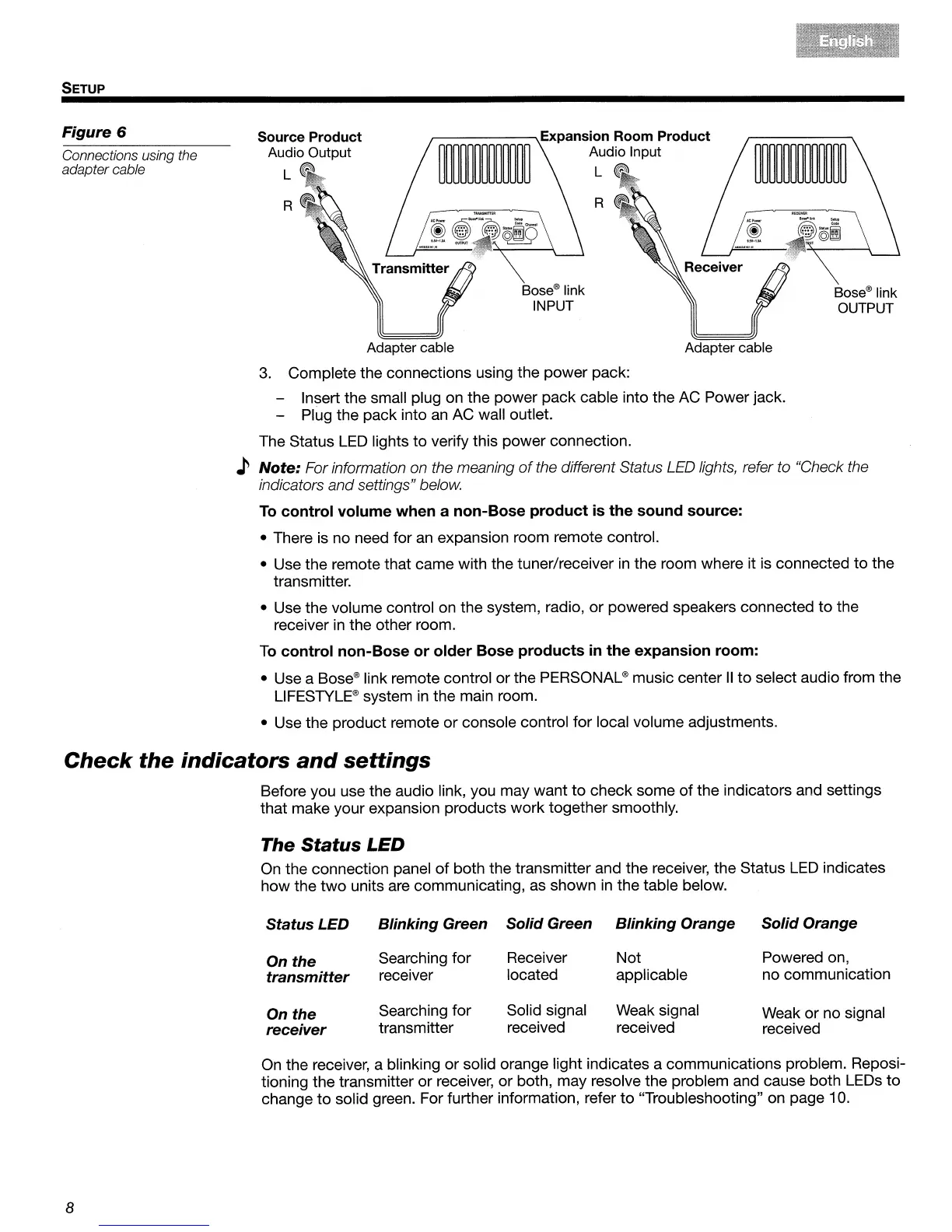

Figure
6
Connections using the
adapter cable
Adapter cable Adapter cable
3.
Complete the connections using the power pack:
- Insert the small plug on the power pack cable into the AC Power jack.
- Plug the pack into
an
AC wall outlet.
The Status
LED
lights
to
verify this power connection.
)
Note:
For information on the meaning
of
the different Status
LEO
lights, refer to "Check the
indicators
and
settings" below.
To
control
volume
when
a
non-Bose
product
is
the
sound
source:
• There
is
no need for
an
expansion room remote control.
• Use the remote that came with the tuner/receiver
in
the room where it is connected
to
the
transmitter.
• Use the volume control on the system, radio, or powered speakers connected
to
the
receiver
in
the other room.
To
control
non-Bose
or
older
Bose
products
in
the
expansion
room:
• Use a
Bose®
link remote control or the
PERSONAL®
music center
II
to
select audio from the
LIFESTYLE®
system
in
the main room.
• Use the product remote or console control for local volume adjustments.
Check
the
indicators
and
settings
Before you use the audio link, you may want
to
check some
of
the indicators and settings
that make your expansion products work together smoothly.
The
Status
LED
On
the connection panel
of
both the transmitter and the receiver, the Status
LED
indicates
how the
two
units are communicating, as shown
in
the table below.
Status
LED
Blinking
Green
Solid
Green
Blinking
Orange
Solid
Orange
On
the
Searching for
Receiver
Not Powered on,
transmitter
receiver
located
applicable
no communication
On
the
Searching for
Solid signal
Weak signal
Weak or no signal
receiver
transmitter
received
received
received
On
the receiver, a blinking or solid orange light indicates a communications problem. Reposi-
tioning the transmitter or receiver, or both, may resolve the problem and cause both LEDs
to
change
to
solid green. For further information, refer
to
"Troubleshooting" on page 10.
