Bose Panaray MA12 Service Manual

8
Disassembly Procedures

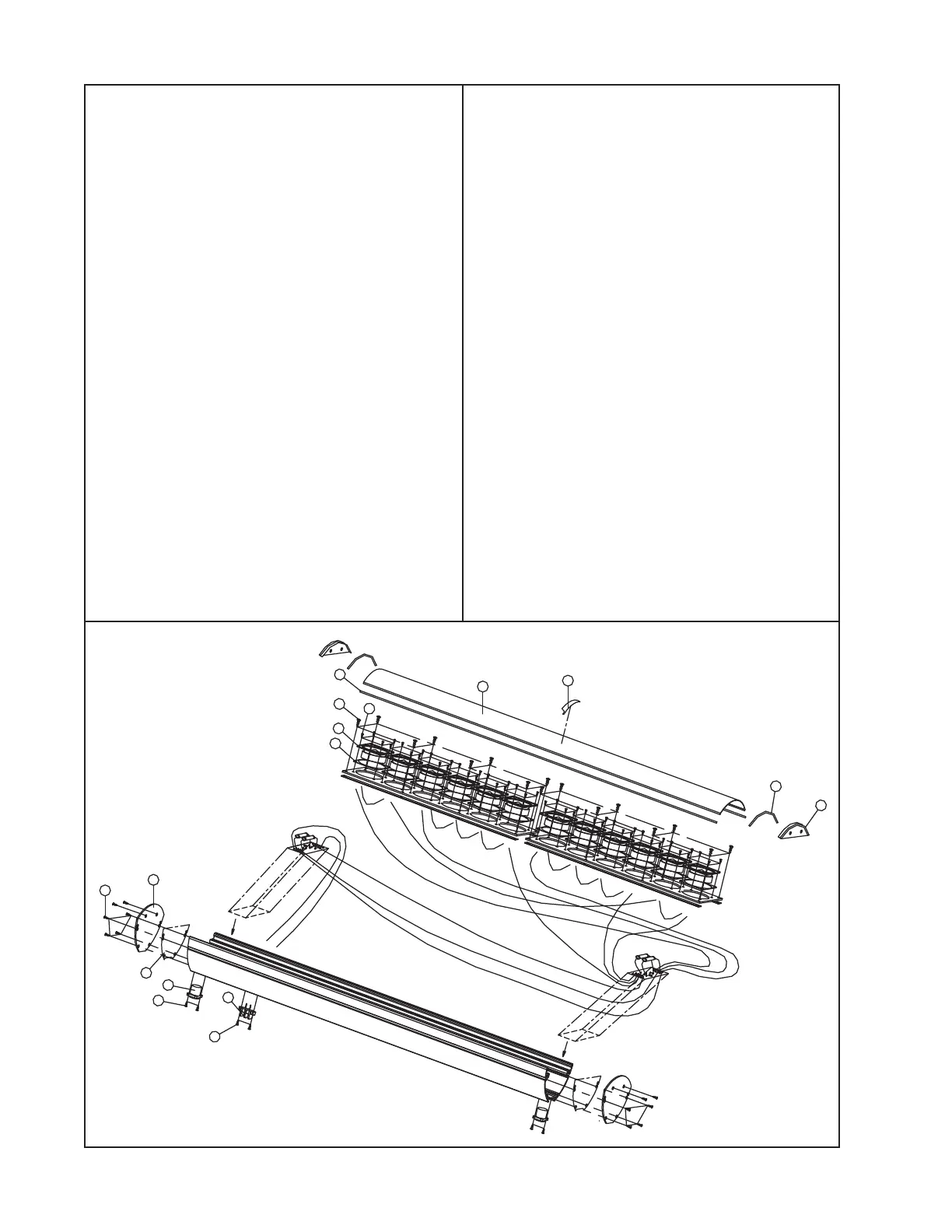

Note: Refer to the figure below for the
following procedures.
1. End Cap Removal
1.1 Using a Phillips-head screwdriver,
remove the six screws (4) that secure the
steel end cap (5) to the housing and grille
trim.
1.2 Gently pull the end cap away from the
housing.
Re-assembly Note: When replacing the end
cap, ensure that it is fully seated against the
housing for an airtight seal. Replace all six
screws to prevent air leaks.
2. Grille Assembly Removal
2.1 Remove the two screws at the front of
each end cap.
2.2 Take the grille trim (14) along with the U-
rubber channel (13) away from the end of
the grille (11).
2.3 Gently pull the grille assembly away
from the housing. Be careful not to mark
the surface of the grille or the housing.
3. Driver Removal
3.1 Perform procedure 2.
3.2 Using a Phillips-head screwdriver,
remove the sixteen screws (8) that secure
the baffle to the housing.
3.3 Lift the baffle with the six drivers (7) out
of the housing.
3.4 Unplug the driver cable wires from the
driver you wish to remove.
3.5 Using a Phillips-head screwdriver,
remove the four screws (9) that secure the
driver to the baffle. Lift out the driver.
3
3
1
2
6
5
4
7
8
9
01
11
2
1
31
4
1
61
5
1

Bose Panaray MA12 Specifications

General

Product color	Black
Recommended usage	-
Driver diameter	64 mm
Number of drivers	12
Audio output channels	- channels
Mid-range driver diameter (imperial)	2.25 \
Impedance	8 Ω
Sensitivity	88 dB
Frequency range	100 - 16000 Hz
RMS rated power	300 W
Peak Music Power Output (PMPO)	1200 W
Bluetooth	No
Connectivity technology	Wired

Weight and Dimensions

Depth	128 mm
Width	105 mm
Height	984 mm
Weight	8500 g
