Bose PANARAY MB4 Service Manual

5
Main Part List
Panaray
®
MB4 Bass Loudspeaker System (see Figure 2)

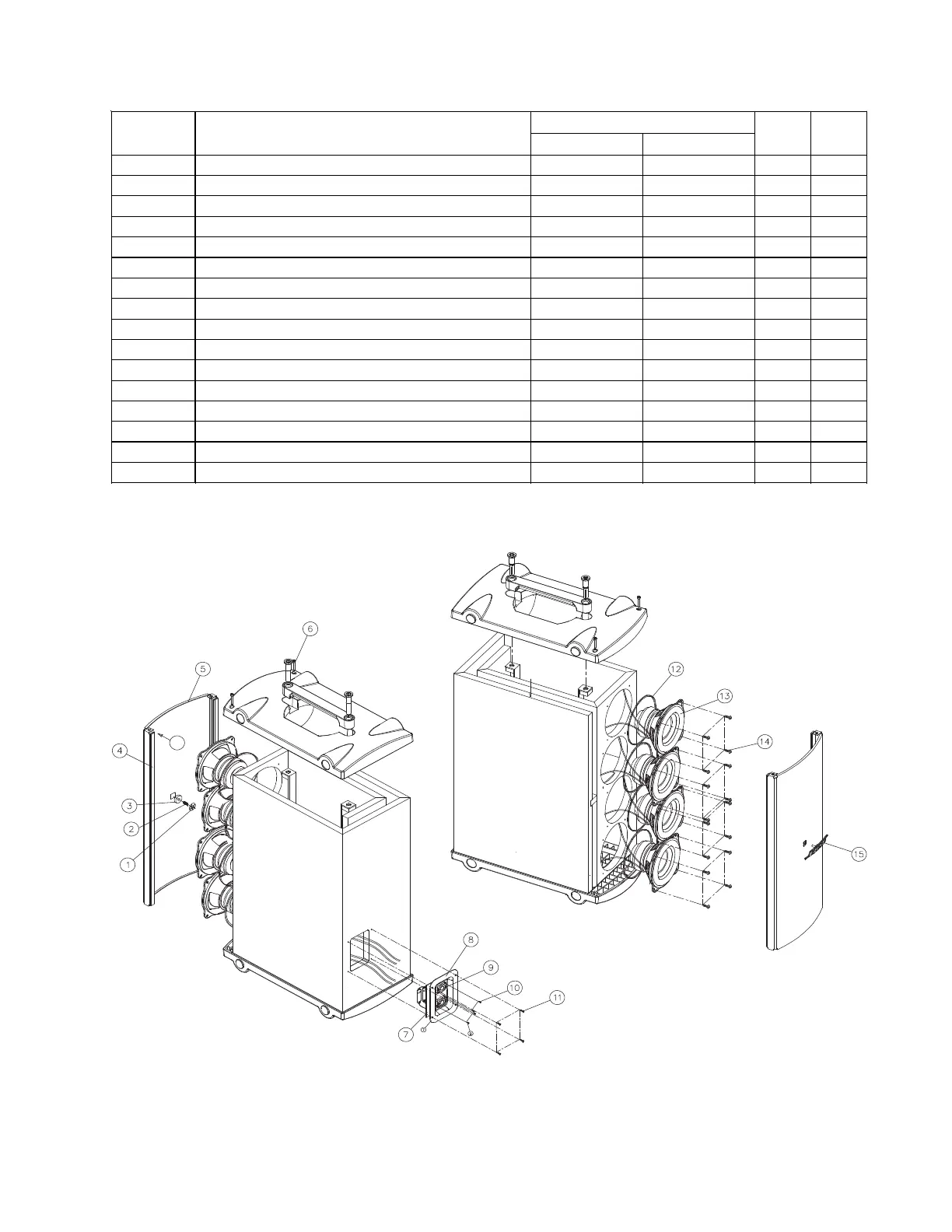

Figure 2. Panaray
®
MB4 Bass Loudspeaker Exploded View
6
1
Part Number Item
Number
Description
Black White
Qty
Note
1 LOCKWASHER, LOGO - - 1
2 SPRING, LOGO - - 1
3 CUP WASHER, LOGO - - 1
4 GRILLE GASKET - - 1
5 GRILLE ASSY (WITH ITEMS 1, 2, 3 & 4) 298571 298572 1
6 SCREW, GRILLE, M4x28 298573 298573 4
7 PROTECTION CKT ASSY 298574 298575 1
8 TERMINAL PANEL 259193-1 259193-1 1
9 CONNECTOR, NEUTRIK 298548 298548 2
10 SCREW, NEUTRIK CONN, M3x12 - - 4
11 SCREW, TERMINAL PANEL, M4x16 - - 4
12 GASKET, WOOFER 298576 298576 4
13 WOOFER ASSEMBLY 298577 298577 4
14 SCREW, WOOFER, M4x16 - - 16
15 LOGO ASSY (WITH ITEMS 1, 2 & 3) 298578-001 298578-002 1
16 SCRIM FOR WHITE VERSION SPKR - - 1
