HOW TO WEAR THE CONTROL MODULE (OPTIONAL)
14
|
ENG

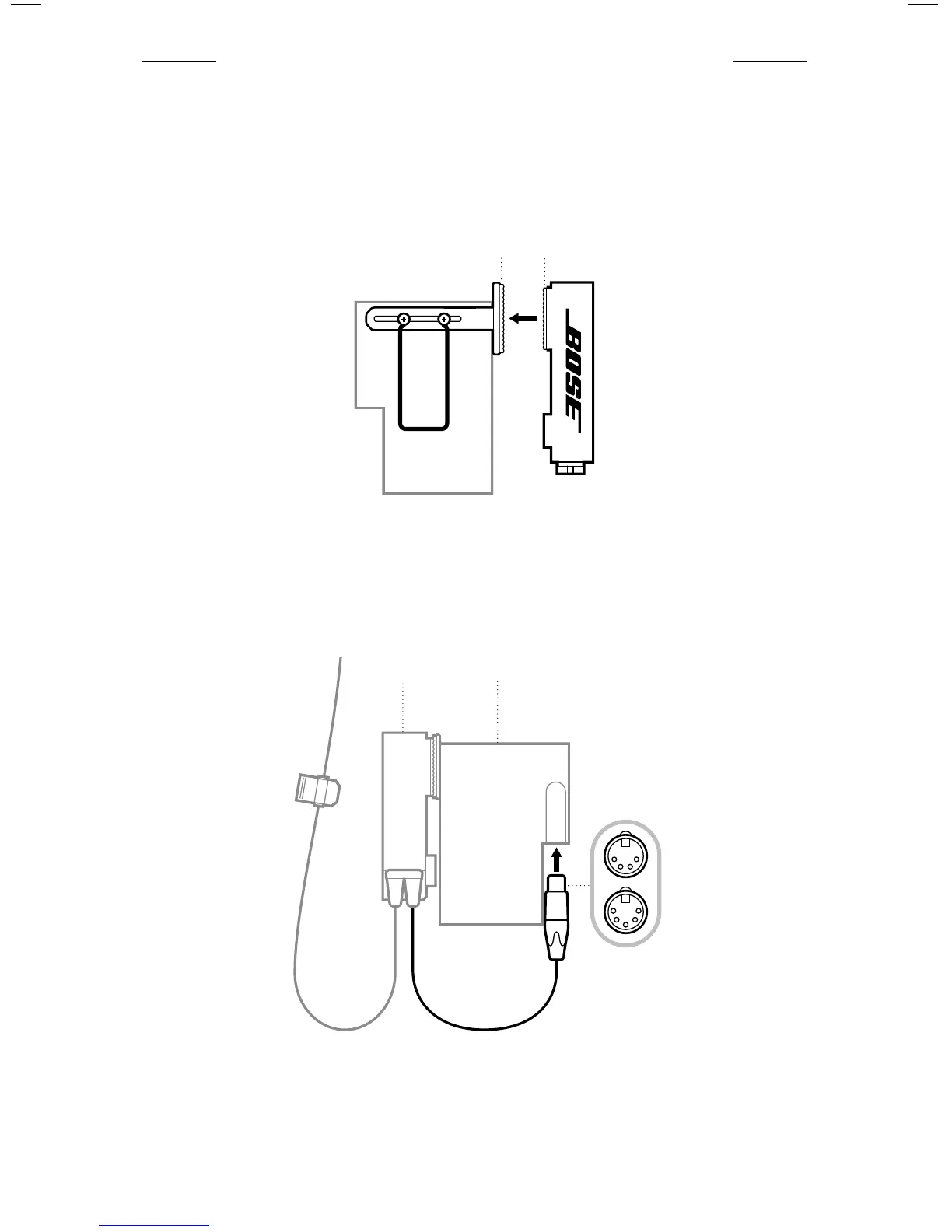

ATTACH THE CONTROL MODULE TO YOUR
RADIO/BELT PACK
1. Align the dual lock tab on the control module with the dual lock tab on the
belt pack bracket.
Dual lock tabs
2. Press firmly until you hear a click.
CONNECT THE CONTROL MODULE
1. Align the XLR connector with the pins on your radio/belt pack connector.
Belt pack
intercom
XLR connector
Control
module
2. Press firmly until you hear a click.
NOTE: The headset can also connect to a camera using the XLR connector. Refer to
your camera owner’s guide for connection instructions.
