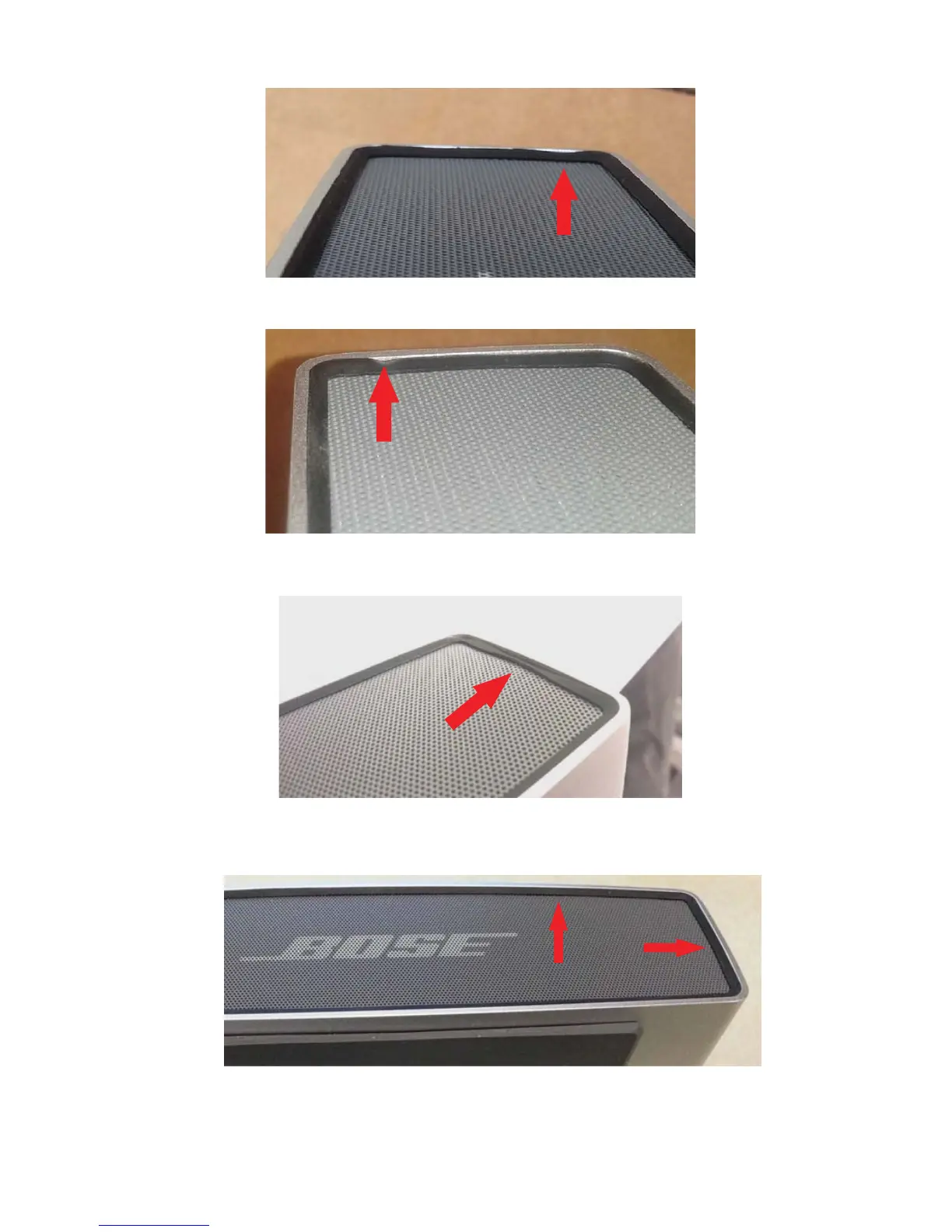

Acceptable gasket alignment
Not acceptable gasket alignment
Not aceptable gasket alignment - gasket rolled over/pinched
The gasket should align fl ush within the cabinet edges. The Gasket does not need to have the same
fl ushness to the top and side cabinet edges.
Figure 32. Grille Gasket Alignment
ASSEMBLY KEY POINTS
