Bose T1 ToneMatch Service Manual

8
Packaging Part List
T1 ToneMatch
®
Audio Engine (see Figure 1)
1234
546
7
8
9
10 11 12
13
14
15

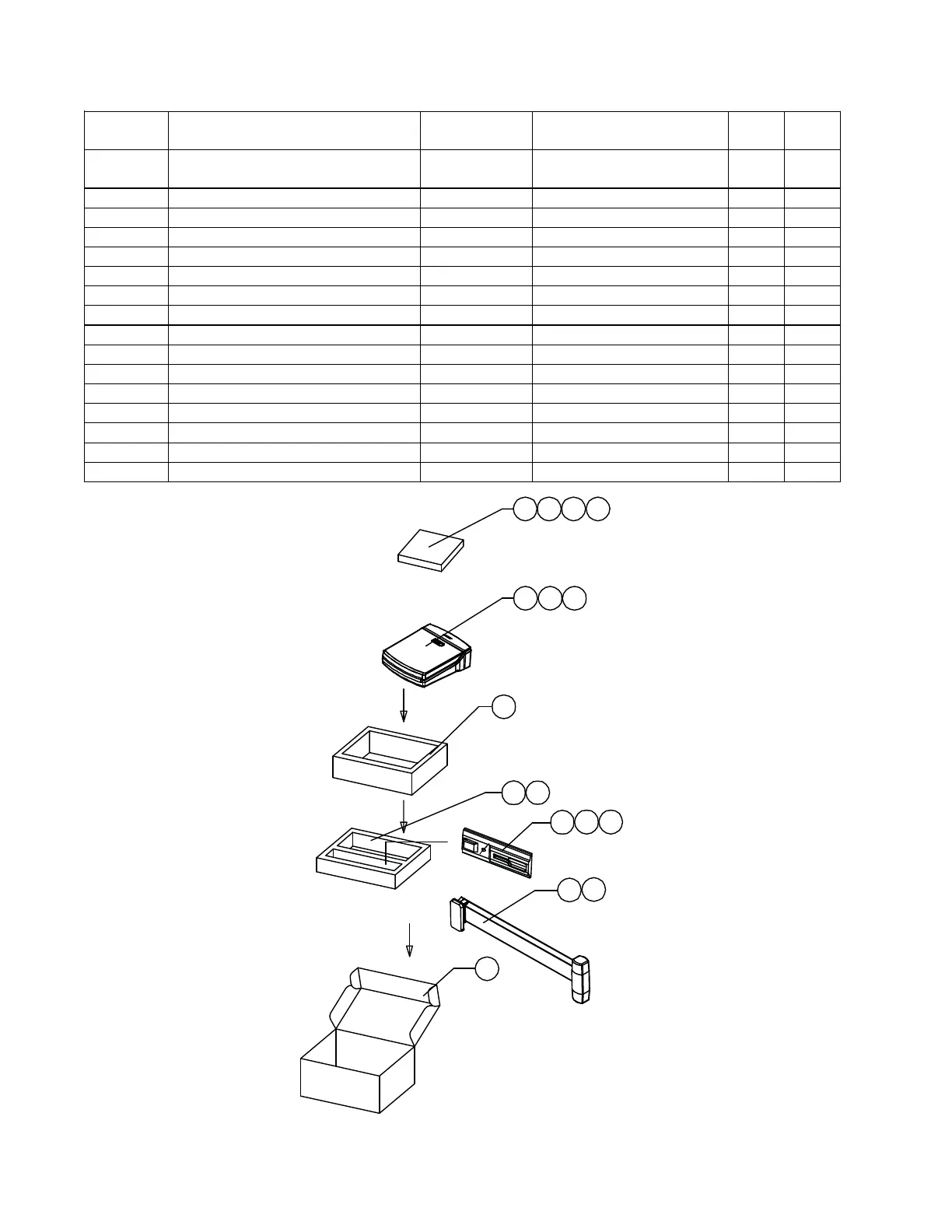

Figure 1. T1 ToneMatch Audio Engine Packaging View
Item
Number
Description Bose
®
Part
Number
Vendor Part Number Qty. Note
- CARTON KIT, CONSISTS OF
ITEMS 7, 8 AND 15 BELOW
312215 - 1
1 CD ROM - 1
2 OWNER’S MANUAL 303150 4301-7273+0 1
3 QUICKSTART GUIDE 303149 4301-7299+0 1
4 POLYBAG - 1497-4122+0 2 4
5 T1 TONEMATCH AUDIO ENG REF - 1
6 NYLON CARRY BAG 042534 SVC-SIEN11+BAG 1
7 UPPER PACKING TRAY 307723 SVC-SIEN11+TRAYU 1
8 LOWER PACKING TRAY 307724 SVC-SIEN11+TRAYL 1
9 RJ-45 ETHERCON CABLE 042536 SVC-SIEN11+CABLE 1
10 L2 CARRIAGE 298750 4155-2721+0 1
11 RETENTION SCREW 298751 4155-2731+0 1
12 POLYBAG - 1497-2812+0 1 4
13 L2 MOUNTING ARM 298749 4135-7071+0 1
14 POLYBAG - 1497-7222+0 1 4
15 GIFT BOX (CARTON) 298754 1481-0701+1 1

Bose T1 ToneMatch Specifications

General

Sample rate	48 kHz
Channels quantity	- channels
Digital sound processing	- bit
DJ mixer	-
Backlight	Yes
Backlight color	Blue
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Weight and Dimensions

Depth	208.9 mm
Width	165.5 mm
Height	67.6 mm
Weight	970 g
