Setting Up
Connecting the multi-disc changer to your Acoustic Wave
®
music system
On the back of the multi-disc changer there are two cables (Figure 3) that connect to your
Acoustic Wave
®
music system.
1. Insert the two connectors of the AUX input cable into
AUX IN
jacks on the back of the
Acoustic Wave
®
music system. Be sure to match the colors of the connectors and jacks:
red to red, and white to white
.
2. Insert the plug of the AC power cable into the AC power receptacle on the back of the
Acoustic Wave
®
music system.

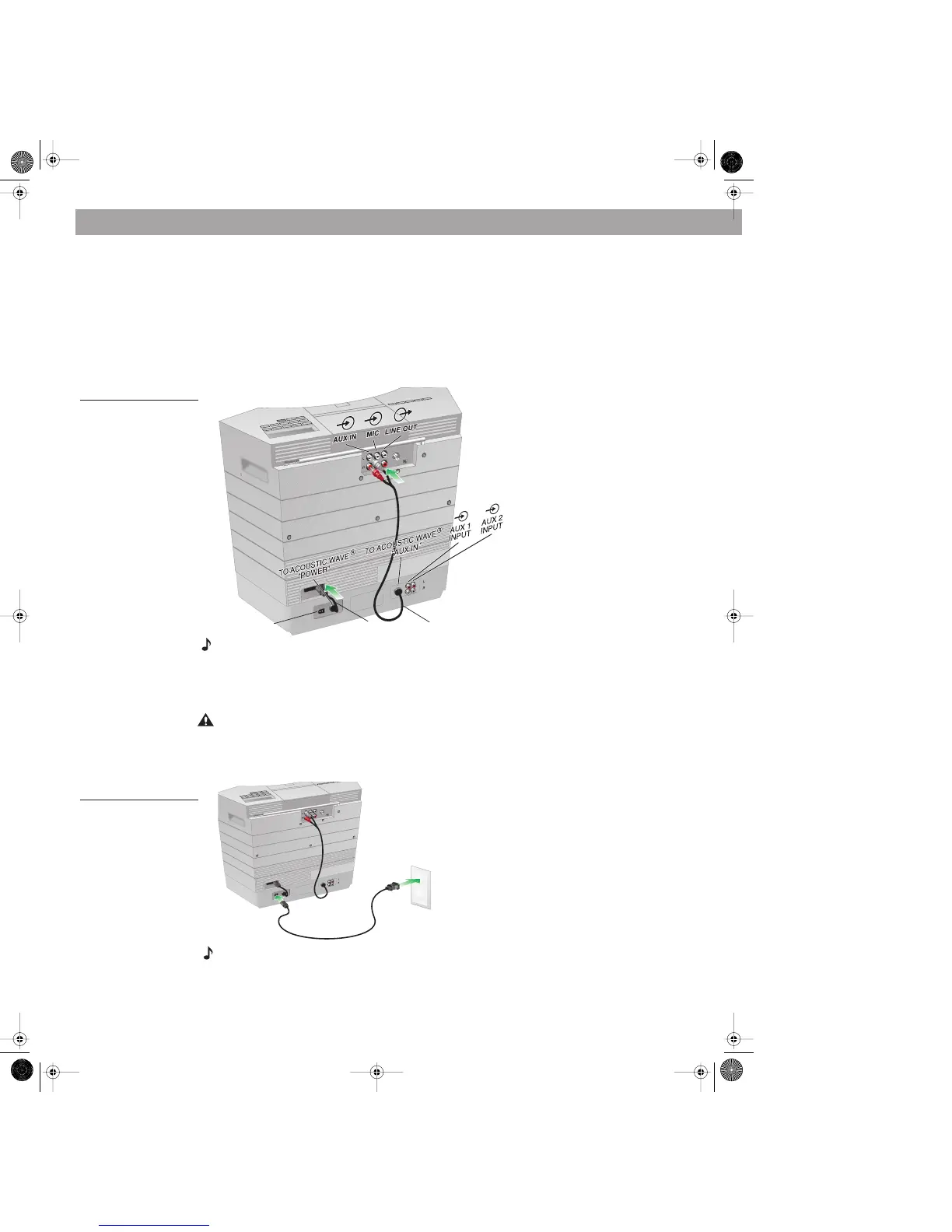

Figure 3
Connecting the multi-disc
changer to the Acoustic
Wave
®
music system
Note:
The changer comes supplied with a detachable power cord, similar to the one provided
with the Acoustic Wave
®
music system. You will need to use only one of these two supplied
power cords.
3. Plug the small end of the detachable power cord into the power jack on the back of the
changer (Figure 4).
CAUTION:
If you will be connecting auxiliary components to the changer, refer to “Connect-
ing other sound sources” on page 13.
4. Plug the other end of the power cord into an AC (mains) wall outlet and your setup is
complete.
Figure 4
Plugging in the power cord
Note:
When the multi-disc changer turns on after you plug it in, “PLEASE WAIT” flashes on its
display for a few seconds. When the flashing stops, you can load and play the changer.
AC power cable
AUX input cable
Power jack
