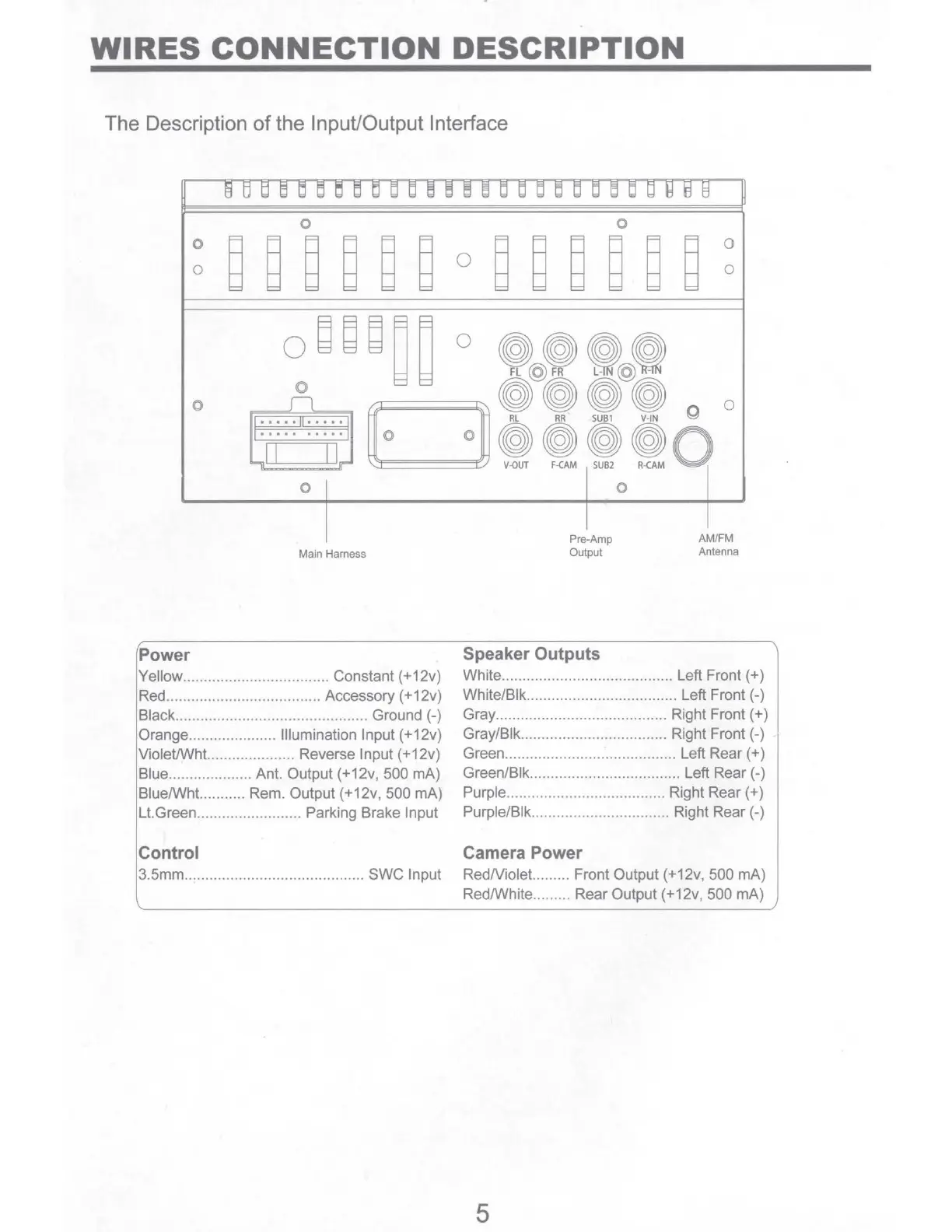

WIRES CONNECTION DESCRIPTION
The Description of the lnpuUOutput Interface
Power
0
0
0
0
Main Harness
Yellow ................................... Constant (+12v)
Red ................ ... . .. ............ .. . Accessory (+12v)
Black .............................................. Ground (-)
Orange ..................... Illumination Input (+12v)
Violet/Wht... ...... .. . .. ....... Reverse Input (+12v)
Blue .................... Ant. Output (+12v, 500 mA)
Blue/Wht. .......... Rem. Output (+12v, 500 mA )
Lt.Green . .. .................... .. Parking Brake Input
Control
3.5mm ........................................... SWC Input
Pre-Amp
Output
Speaker Outputs
0
0
0
AM/FM
Antenna
White ......................................... Left Front (+)
White/Blk .................. ... ............... Le ft Front (-)
Gray .. ... ........... .. ....................... Right Front (+)
Gray/Bl k.. ................... ... ......... .. Right Front (-)
Green ............... .. . .. ..................... Left Rear (+)
Green/Blk .................................. .. Left Rear (-)
Purple ...................................... Right Rear (+)
Purple/Blk ................................. Right Rear (-)
Camera Power
RedNiolet. ........ Front Output (+12v, 500 mA )
Red/White ......... Rear Output (+12v, 500 mA )
5
