Boss DM-2 Delay - Page 7

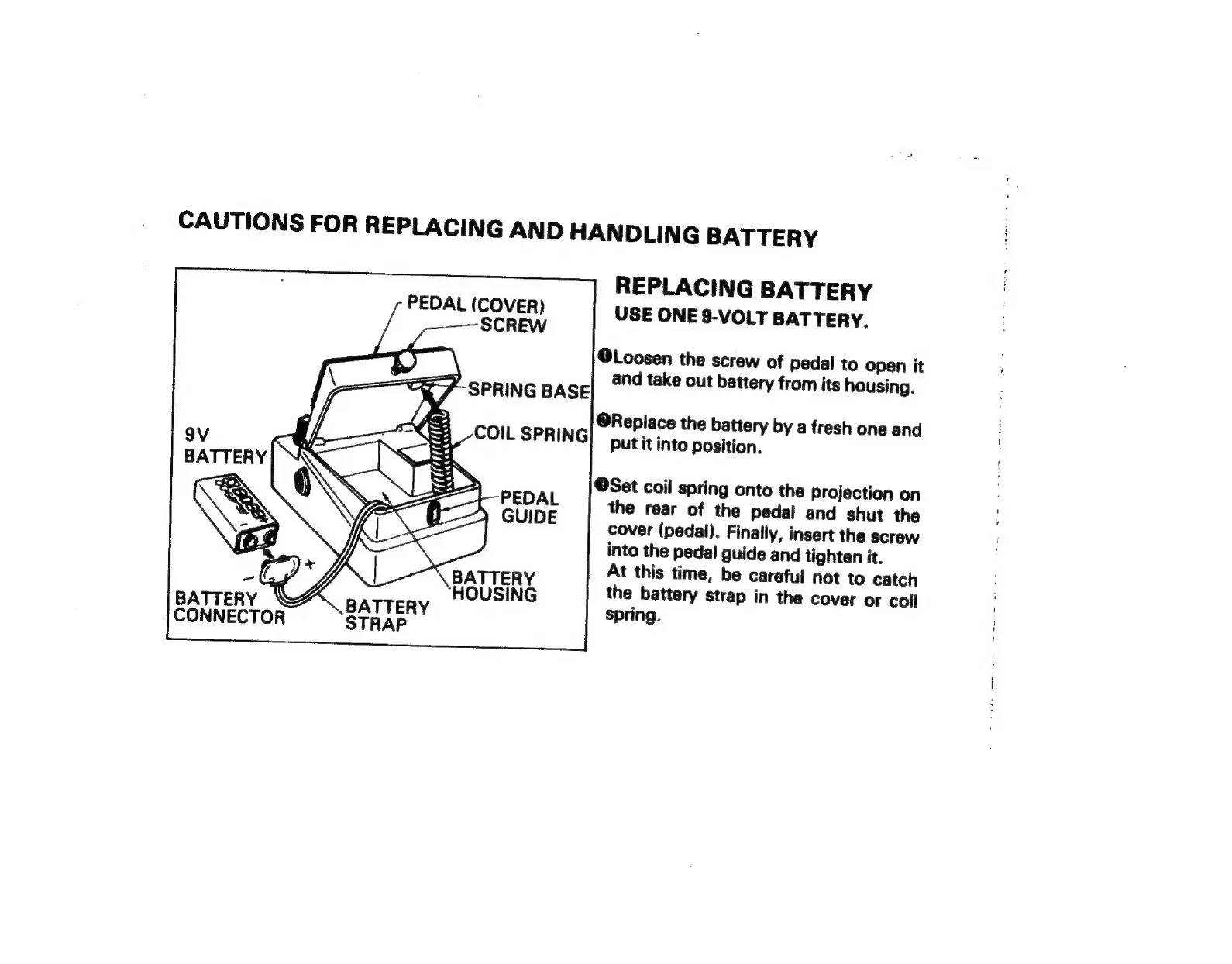

CAUTIONS
FOR
REPLACING
AND
HANDLING
BATTERY
REPLACING
BATTERY
PEDAL
(COVER)
USE
ONE
9-VOLT
BATTERY.
@Loosen
the
screw
of
pedal
to
open
it
and
take
out
battery
from
its
housing.
@Replace
the
battery
by
a
fresh
one
and
put
it
into
position.
@Set
coil
spring
onto
the
projection
on
the
rear
of
the
pedal
and
shut
the
cover
(pedal).
Finally,
insert
the
screw
into
the
pedal
guide
and
tighten
it.
At
this
time,
be
careful
not
to
catch
the
battery
strap
in
the
cover
or
coil
spring.
