Advanced Use (Settings)
Using Pedals to Control the DR-01s
If footswitches (sold separately: FS-5U, FS-6, FS-7) are connected to the CTL 1, 2 jack, you can
control the DR-01s without removing your hands from your instrument.
You can assign various functions to pedals and use them to control the DR-01s, or use pedals to
play percussion sounds or to recall a pre-specied favorite.

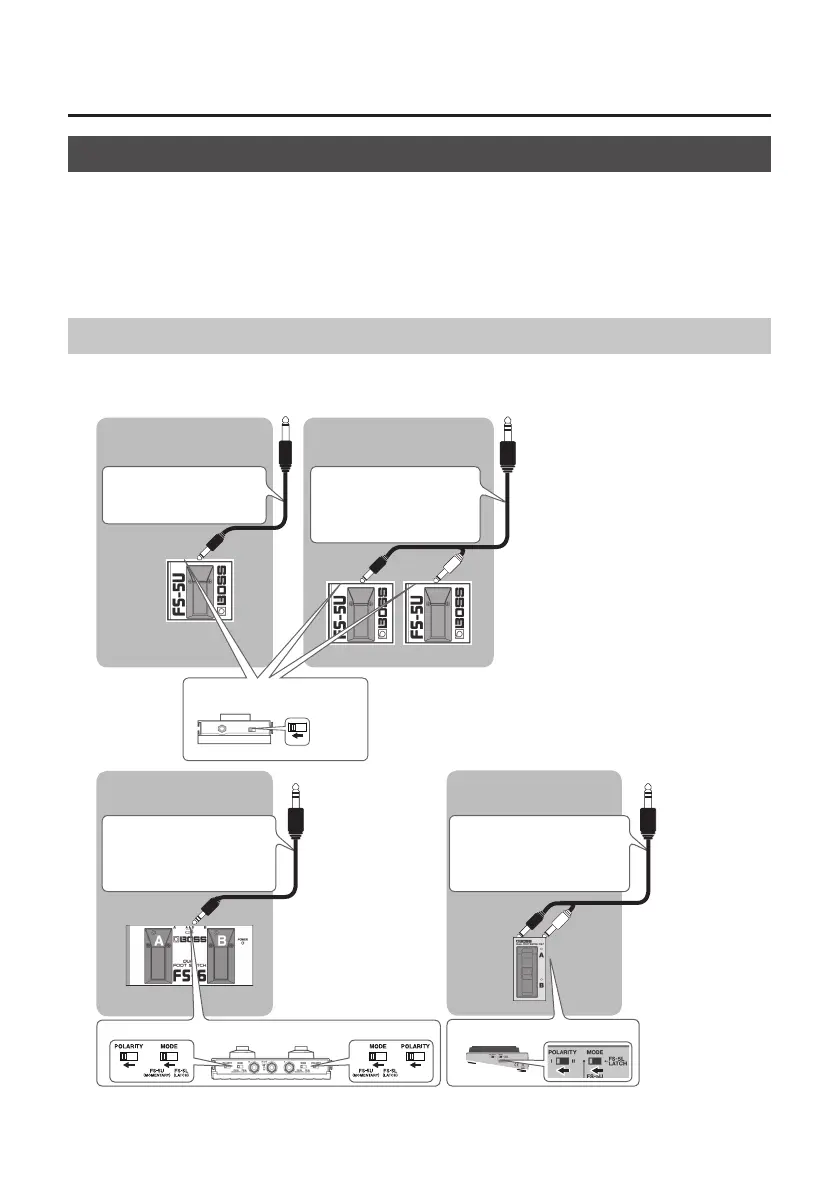

Connecting Pedals
* To prevent malfunction and equipment failure, always turn down the volume, and turn o all
the units before making any connections.
When Connecting an
FS-5U
When Connecting Two
FS-5Us
1/4” phone type ,
1/4” phone type
Stereo 1/4” phone type
,
1/4” phone type x 2
CTL 1
CTL 2 CTL 1
Polarity switch
When Connecting an
FS-7
When Connecting an
FS-6
Stereo 1/4” phone type
,
Stereo 1/4” phone type
Stereo 1/4” phone type
,
1/4” phone type x 2
CTL 2
CTL 2
CTL 1
CTL 1
Mode, Polarity switch Mode, Polarity switch
