Boss EQ-200 - STRUCT and TYPE Parameters; LINK, MIDI, and PC Parameters

Overall Settings (Menu)
9
Parameter
Explanation

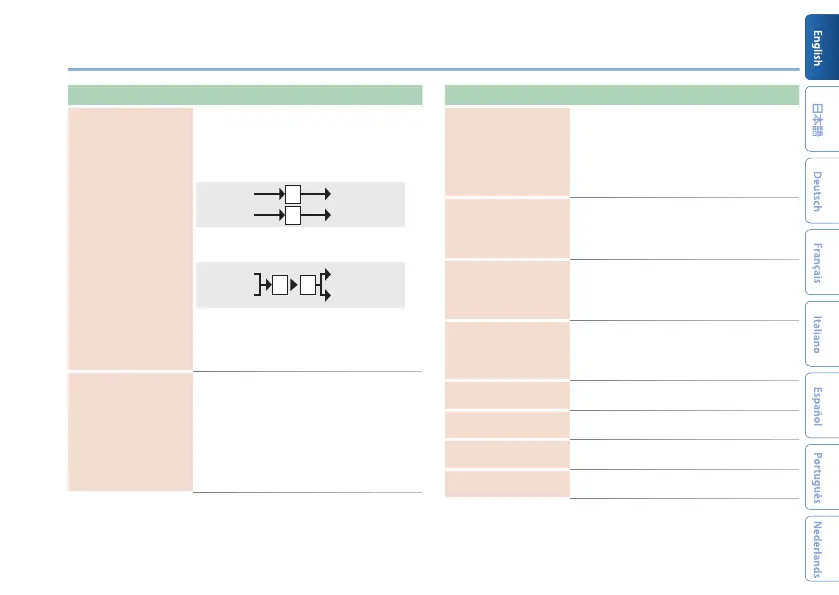

STRUCT (STRUCTURE)
Species how the A and B channel
equalizers are connected.
PARA
(PARALLEL): INPUT/OUTPUT jacks A
and B are connected to channels A and B
respectively.
INPUT A OUTPUT A
INPUT B OUTPUT B
A
B
SERIES: The A and B channel equalizers
are connected in series.
INPUT A OUTPUT A
A
INPUT B OUTPUT B
B
The input is mixed to mono, and the same
signal is output from A and B.
& For details, refer to “About STRUCT
(STRUCTURE)” (p. 10).
TYPE
Changes the center frequencies of the
sliders.
30.800.12K: 30/60/120/200/400/800/1.6k/
3.2k/6.4k/12.8k (as printed on the panel)
32/1k/16k: 32/63/125/250/500/1k/2k/4
k/8k/16k
28/880/14k:
28/55/110/220/440/880/1.75k/3.5k/7k/14k
Parameter
Explanation
LINK
Species whether the equalizer settings
are shared by channels A and B.
OFF: Channels A and B can be set
independently.
ON: Channels A and B use the same
settings.
EXT FROM
(MEMORY EXTENT FROM)
EXT TO
(MEMORY EXTENT TO)
Species the extent of memory switching
(MEMORY EXTENT FROM–TO).
MAN, M-1–4
RX CH
(MIDI RECEIVE CHANNEL)
Species the MIDI receive channel.
If this is “OFF,” MIDI messages are not
received.
1–16, OFF
TX CH
(MIDI TRANSMIT CHANNEL)
Species the MIDI transmit channel.
If this is “OFF,” MIDI messages are not
transmitted.
1–16, RX (RECEIVE), OFF
PC IN
Species whether program changes are
received (ON) or not received (OFF).
PC OUT
Species whether program changes are
transmitted (ON) or not transmitted (OFF).
CC IN
Species whether control changes are
received (ON) or not received (OFF).
CC OUT
Species whether control changes are
transmitted (ON) or not transmitted (OFF).
