Boss FDR-1 - Operating the Unit; Initial Setup and Gain Adjustment; Tone Adjustment

10
Operating the Unit
fig.FDR-1_operation1.eps

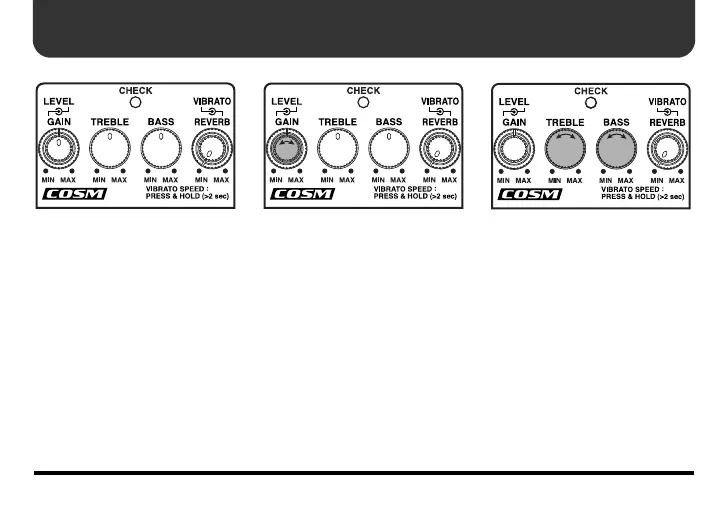

1. After you have made the
necessary connections
(p.
7,
p. 8), set the panel
knobs as shown in the
illustration.
2. Depress the pedal switch
to turn the effect on. (The
CHECK indicator lights
when the effect is on.)
fig.FDR-1_operation2.eps
3. Adjust the gain (the
amount of distortion)
with the GAIN knob.
* Setting both knobs at extremely
high levels may also result in
increased noise.
fig.FDR-1_operation3.eps
4. Adjust the tone with the
BASS knob and TREBLE
knob.
