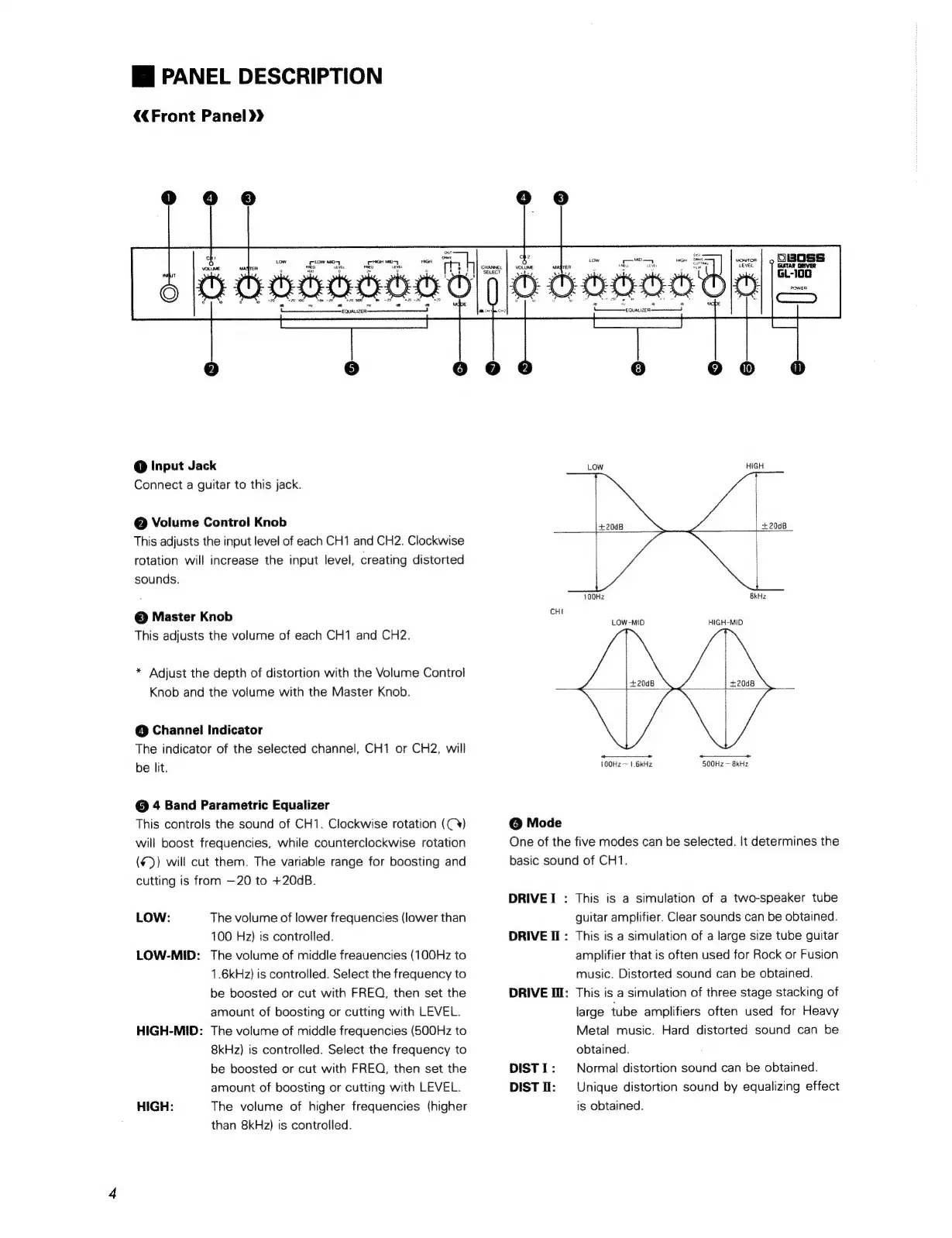

Mi PANEL DESCRIPTION
«(Front Panel)
i i ay we
ford 0 behets
eee CA es eer
@ Input Jack
Connect a guitar to this jack.
@ Volume Control Knob
This adjusts the input level of each CH1 and CH2. Clockwise
rotation will increase the input level, creating distorted
sounds.
© Master Knob
This adjusts the volume of each CH1 and CH2.
* Adjust the depth of distortion with the Volume Control
Knob and the volume with the Master Knob.
@ Channel Indicator
The indicator of the selected channel, CH1 or CH2, will
be lit.
@ 4 Band Parametric Equalizer
This controls the sound of CH1. Clockwise rotation (C¥)
will boost frequencies, while counterclockwise rotation
(¢)) will cut them. The variable range for boosting and
cutting is from —20 to +20dB.
LOW: The volume of lower frequencies (lower than
100 Hz) is controlled.
LOW-MID: The volume of middle freauencies (100Hz to
1.6kHz) is controlled. Select the frequency to
be boosted or cut with FREQ, then set the
amount of boosting or cutting with LEVEL.
HIGH-MID: The volume of middle frequencies (500Hz to
8kHz) is controlled. Select the frequency to
be boosted or cut with FREQ, then set the
amount of boosting or cutting with LEVEL.
HIGH: The volume of higher frequencies (higher
than 8kHz) is controlled.
LOW HIGH
1OOHz 8kHz
LOW-MID HIGH-MID
é
#20dB
+20d8
}O0Hz~ |.6kHz 500Hz ~ 8kHz
CHI
©@ Mode
One of the five modes can be selected. It determines the
basic sound of CH1.
DRIVEI : This is a simulation of a two-speaker tube
guitar amplifier. Clear sounds can be obtained.
DRIVE II: This is a simulation of a large size tube guitar
amplifier that is often used for Rock or Fusion
music. Distorted sound can be obtained.
DRIVE II: This is a simulation of three stage stacking of
large tube amplifiers often used for Heavy
Metal music. Hard distorted sound can be
obtained.
DISTI: Normal distortion sound can be obtained.
DIST: Unique distortion sound by equalizing effect
is obtained.
