Boss LS-2 User Manual

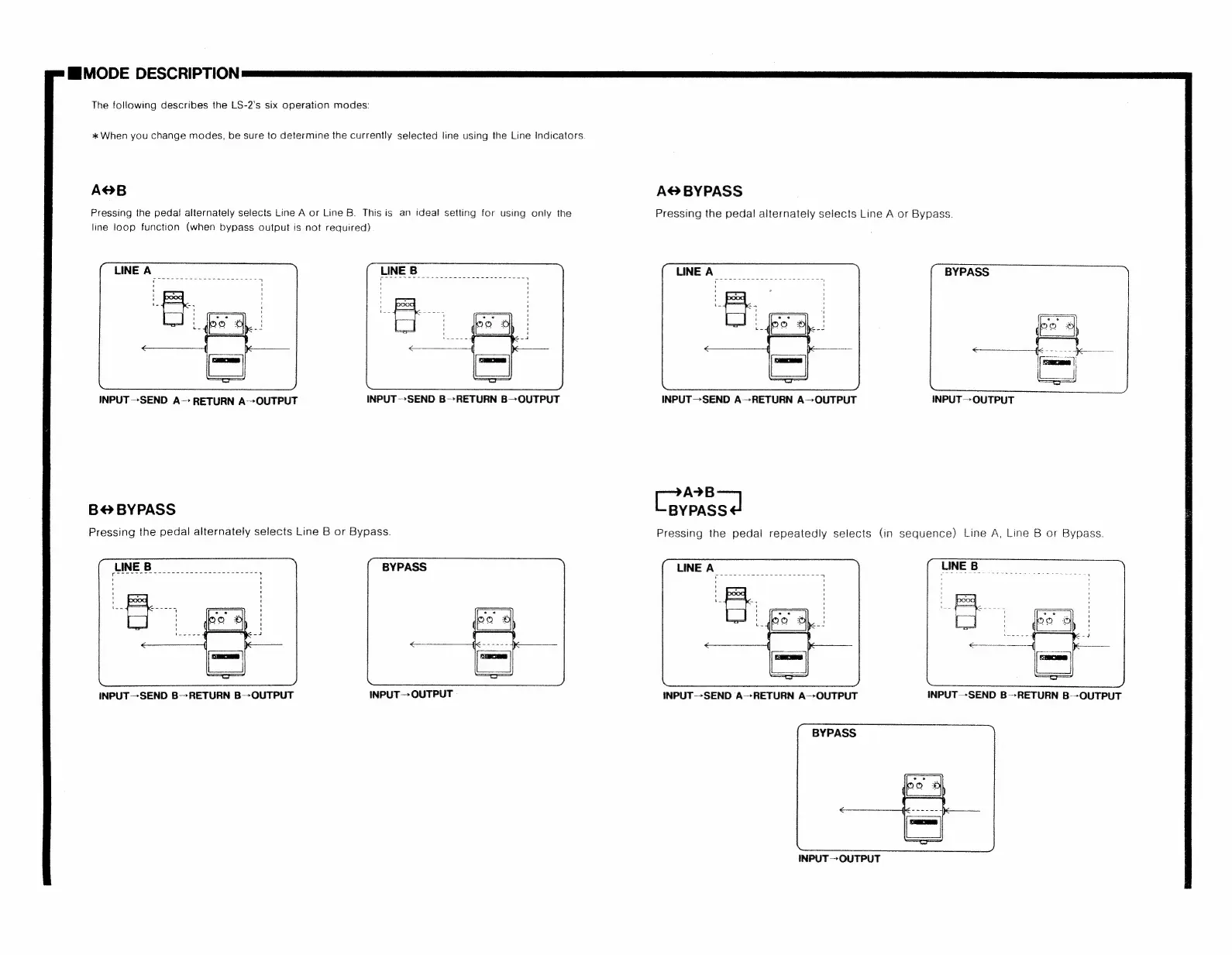

MIMODE DESCRIPTION
The following describes the LS-2’s six operation modes:
* When you change modes, be sure to determine the currently selected line using the Line Indicators.
A@B
Pressing the pedal alternately selects Line A or Line B. This is an ideal setting for using only the
line loop function (when bypass output is not required)
INPUT-SEND A— RETURN A—-OUTPUT INPUT->SEND B->RETURN B->OUTPUT
B& BYPASS
Pressing the pedal alternately selects Line B or Bypass.
INPUT--SEND B->RETURN B--OUTPUT INPUT — OUTPUT
A® BYPASS
Pressing the pedal alternately selects Line A or Bypass.
BYPASS |
INPUT--SEND A--RETURN A—OUTPUT INPUT-OUTPUT
Bee
BYPASS
Pressing the pedal repeatedly selects (in sequence) Line A, Line B or Bypass.
INPUT—-SEND A-—->RETURN A—OUTPUT INPUT—SEND B--RETURN B--OUTPUT
BYPASS
INPUT-OUTPUT

Boss LS-2 Specifications

General

Type	Line Selector
Bypass Switching	Buffered Bypass
Power Supply	9V DC
Connectors	1/4" Input/Output Jacks
Accessories	Owner's Manual
Inputs	2 x 1/4" (A, B)
Controls	Mode selector, Level knobs for A and B channels
Dimensions	73mm (W) x 129mm (D) x 59mm (H)
Weight	420g (excluding battery)
