HEATING & BRAZING KIT SETUP
1. Make sure you have the valve on the fuel regulator in the off position.
2. Check the seal in the regulator is seated properly and not kinked or raised.
3. Screw the Fuel regulator onto the fuel bottle in a clockwise direction to tighten. And place into the carry case.
CONNECTS TO CGA 600 THREAD
4. Make sure you have the valve on the Oxygen regulator in the off position.
5. Check the seal in the regulator is seated properly and not kinked or raised.
6. Screw the Oxygen regulator onto the Oxygen bottle in a clockwise direction to tighten, and place into the carry case
CONNECTS TO M12x1 THREAD
7. Attach the blowpipe to the handle using the spanner supplied, do not over tighten
8. Screw the required tip onto the blowpipe. Using the spanner supplied, do not over tighten
9. Attach the hose to the handle with the numbers facing up, orange hose on the left, tighten anti-clockwise and blue hose on
the right tighten clockwise using the spanner supplied, do not over tighten
10. Attach the hose to the fuel and oxygen regulators
• Orange hose connected to the fuel regulator tighten anti-clockwise using the spanner supplied
• Blue hose to the Oxygen regulator tighten clockwise using the spanner supplied
DO NOT OVERTIGHTEN
IGNITION PROCEDURE
1. Make sure the valves on the torch handle are closed
2. Turn the Oxygen regulator on until it is fully open, and Turn the Fuel regulator on until
it is fully open.
3. Turn the Red Fuel dial anti-clockwise to open the flow of fuel, and immediately light
the torch using the flint lighter provided in the kit
4. Adjust the fuel dial on the torch until the yellow flame flows right from the tip of the
nozzle.
5. Turn the blue dial on the torch handle anti-clockwise to introduce oxygen to the flame.
NOTE:

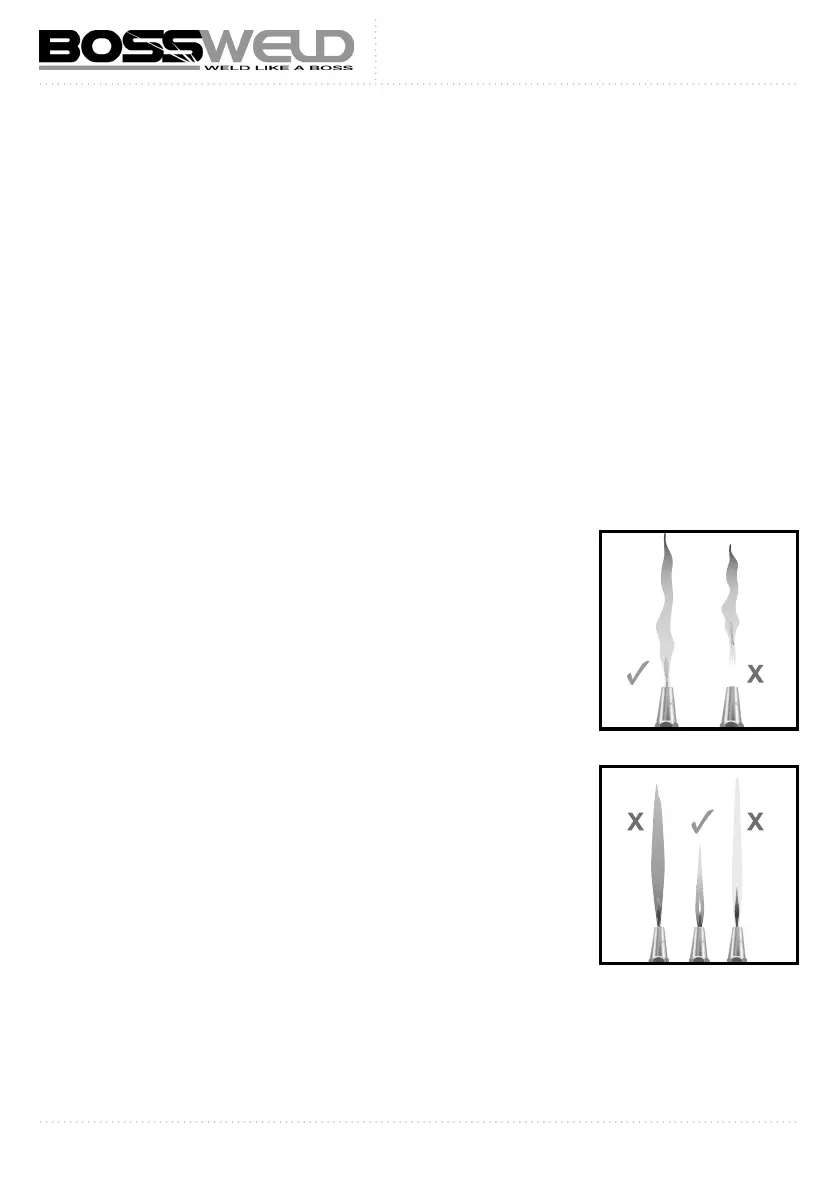

• Not enough oxygen will produce a orange flame
• Excess oxygen will produce a transparent flame.
• The ideal flame is a blue flame with a cone shape.
SHUT DOWN PROCEDURE
1. Turn The Fuel dial off from the torch handle, This will extinguish the flame.
2. Turn the Oxygen dial off from the torch handle.
3. Shut the Fuel regulator off and Shut the Oxygen regulator off.
NOTE:
When not in use, or during transport, unscrew the gas cylinders from the regulators.
