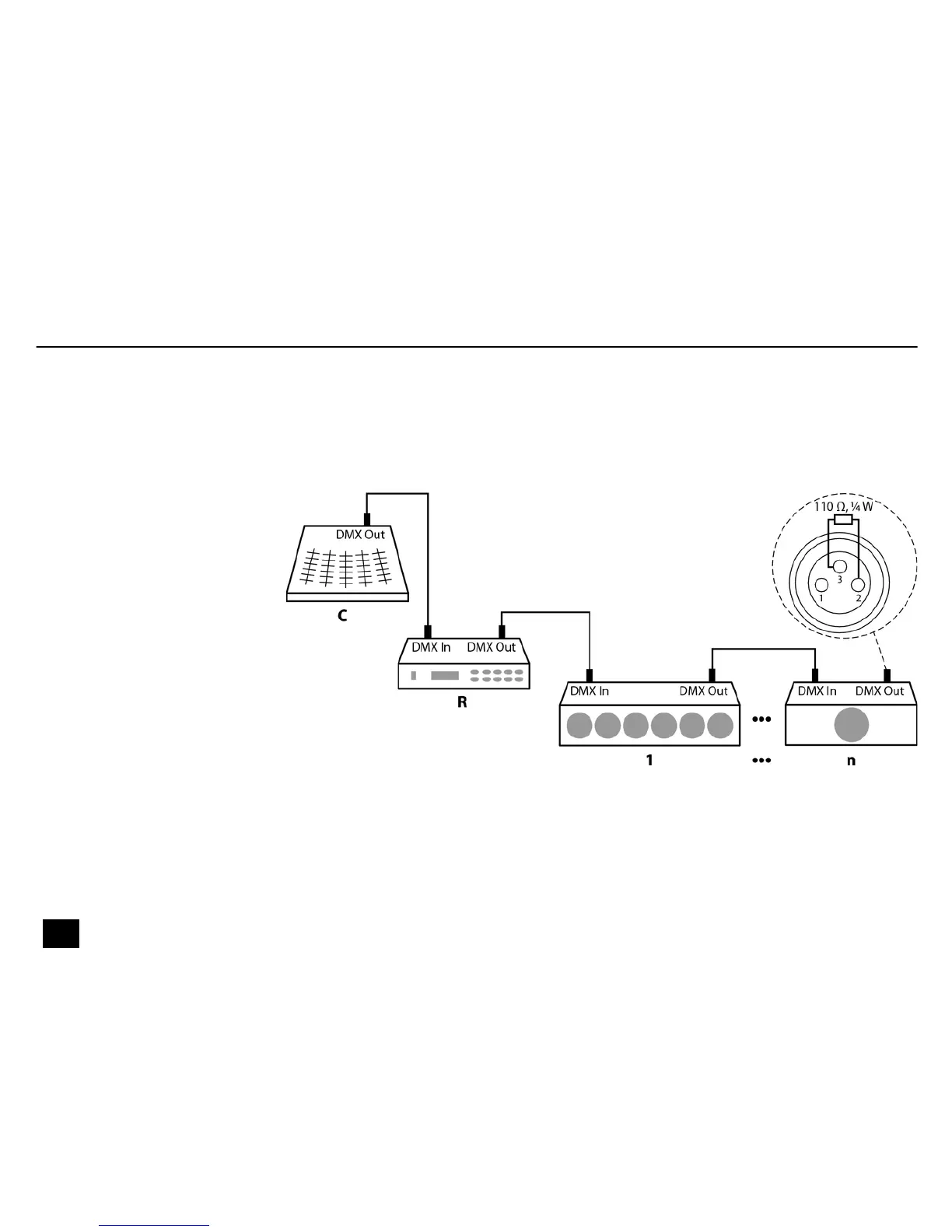

Connect the DMX input of the DMX recorder (R) to the DMX output of a DMX controller (C).
Connect the output of the DMX recorder (R) to the first DMX device (1), such as a spotlight.
Connect the output of the first DMX device (1) to the input of the second one and so on, to
form a series connection. Make sure that the output of the last DMX device (n) in the chain is
terminated by a resistor (110 Ω,
¼
W).
DMX connections
Installation and starting up
16
SD-10
DMX recorder
