7. Functional Units 7.
7.7 Cage
7.7
The cage has a dynamic channeling of holes for optimum air flow
during drying.
7.8 Cage Drive
7.8
The cage drive is an adjustable V-belt drive with 3 V-belts.
7.9 Button Trap
7.9

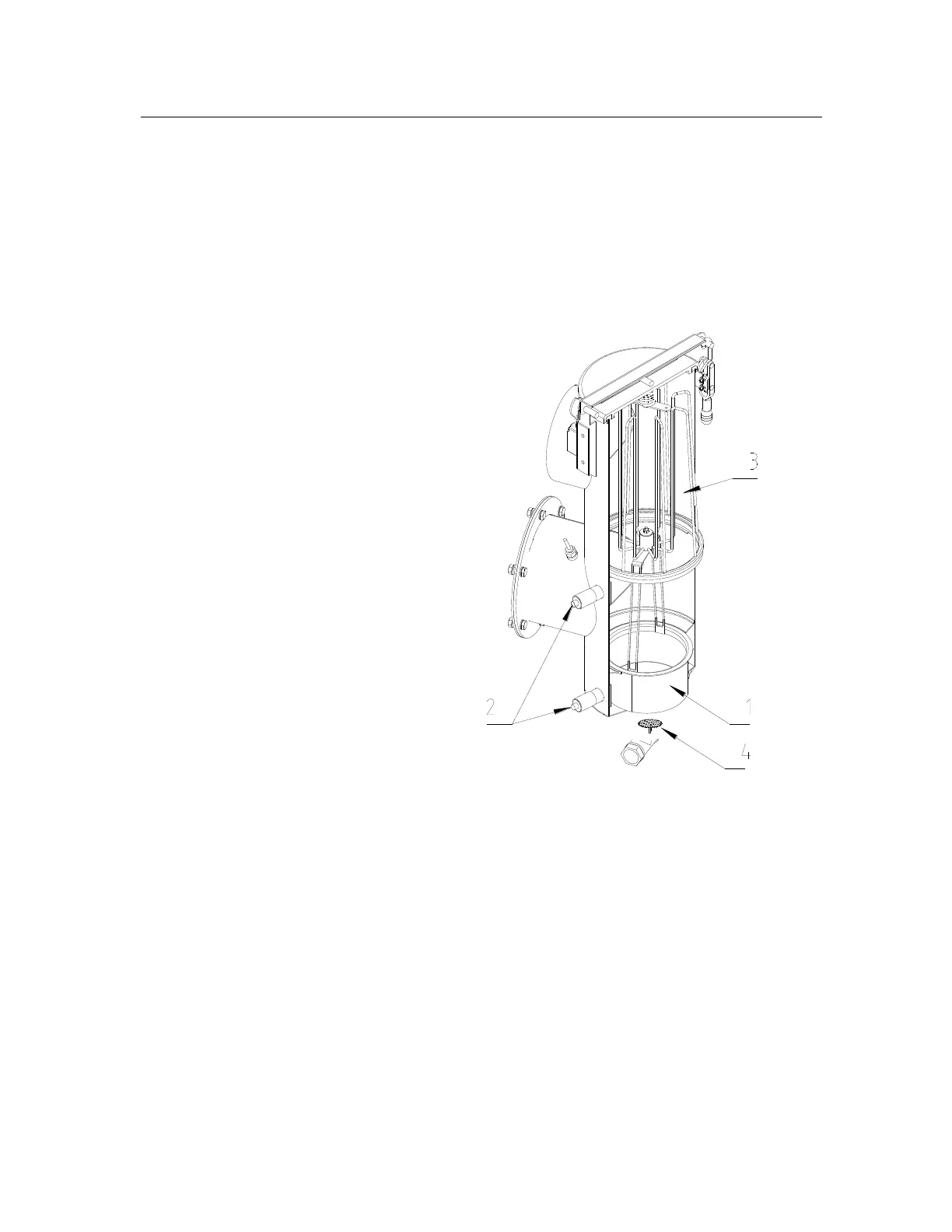

The button trap strainer (1) catches large
impurities (such as buttons, etc.) and lint that
are in the detergent solution. Never operate
the system without the button trap strainer!
(Risk of damaging the solvent pump).
Additionally there is a perforated disk below
at the outlet tube (4). During the drying, a
flow of air dries the dirty lint in the button trap
strainer.
7.10 Level Controller
You can adjust the low and high levels with a
capacitive sensor. (2)
7.11 Lint Filter
The lint filter (3) catches the lint that is carried
along in the air flow. The lint filter is in the button
trap housing. Never operate the system without
the lint filter! Never use a damaged lint filter! Make
sure that the lint filter sits firmly in place. (Risk of
lint on the cooling register)
