BÖWE M21 - 10 Operating and Monitoring Systems

55
M21-M26-M30

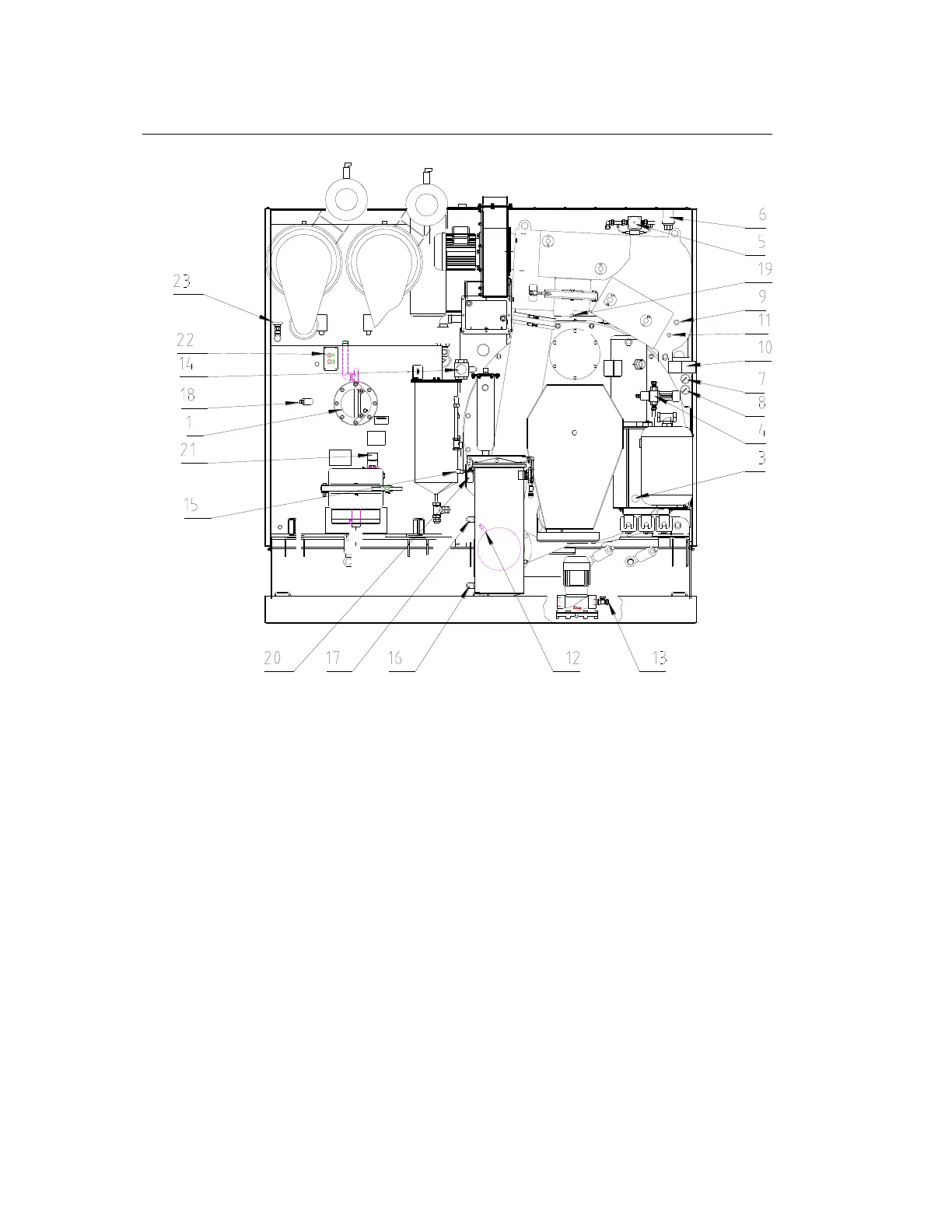

10. Operating and Monitoring Systems
10.
707763-07-0
1
Sight-glass, still
19
Limit switch, additional lint filter
3
Sight-glass, refrigeration unit
20
Limit switch, button trap
4
Cooling water regulator, refrigeration unit
21
Limit switch, still
5
Cooling water regulator, distillation
22
Lamps green - red
6
Low cooling water level switch
23
Manual valve, distillation steam
7
Low pressure gauge (refrigerating)
8
High pressure gauge (refrigerating)
9
Safety temperature limiter after cooler
10
High and low pressure controls, refrigeration
unit
11
Thermal sensor, aftercooler
12
Thermal sensor, cage housing outlet
13
Thermal sensor, solvent
14
Drying time controller
15
Sensor, water-sensitive
16
Sensor, low level
17
Sensor, high level
18
Overfill sensor, distillation
