11. Maintenance 11.
Crossline
707769-23-0

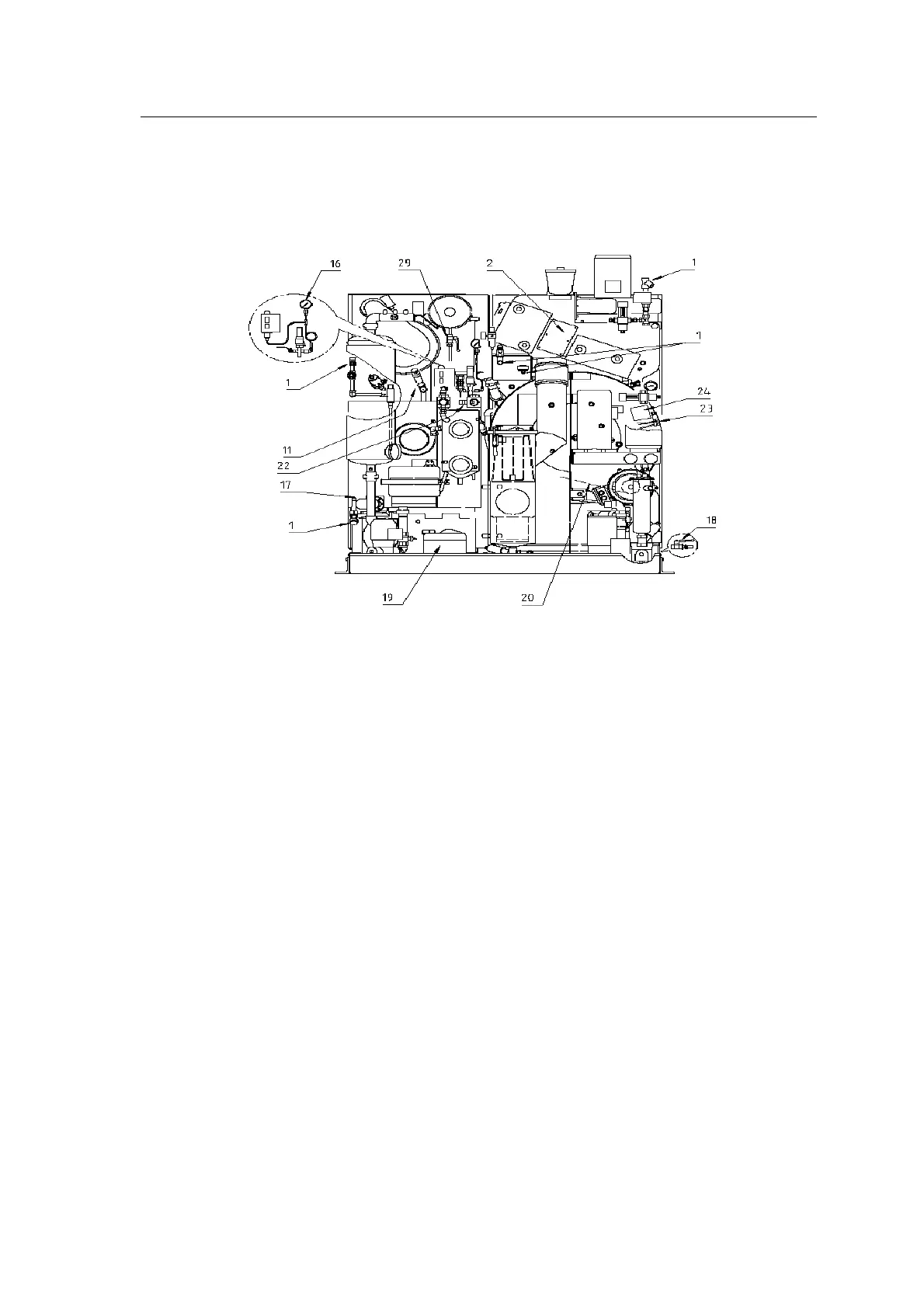

1 Strainer 22 Drying controller
2 Inspection cover, airshaft 23 Grease nipple, cage
3 Compressed air drain 24 Inspection cover, cage flange
4 Sight-glass, water separator 25 Sight-glass, still
5 Sight-glass, safety separator * 26 Still rake-out door
6 Water drain valve 27 Venting and aeration filter (carbon bag)
7 Rinsing water separator 28 Limit switch
8 Draining safety separator * 29 Manual valve, adsorption filter outflow *
9 Draining water separator
10 Process water drain valve - Overfill sensor, disposal vessel *
11 Gas displacement line connection
12 Lint filter
13 Button trap strainer
14 Sieve pump protector
15 Pressure gauge steam generator Slimsorba (elec) *
16 Pressure gauge steam pressure distillation(elec)
17 Filler stub for water (elec)
18 Solvent filling valve
19 Process water collecting tank
20 V belt
21 Sight-glass, tank 3
* Option
