11.5.3. Water Separator Without Safety Separator
Dispose of the process water according to the regulations in your country.
You must clean the water separator routinely (and always after the distillation system has boiled
over). The unit does this automatically with a fixed maintenance program P54 or as an integrated
part of the so-called multi-maintenance program P49.
Start one of the maintenance programs listed above weekly.
You can run another program at the same time as the maintenance program.
Sequence of the maintenance program, see point 11.5.2
After the maintenance has completed, the horn sounds and the program ends. The cycle counter
is reset to 0.

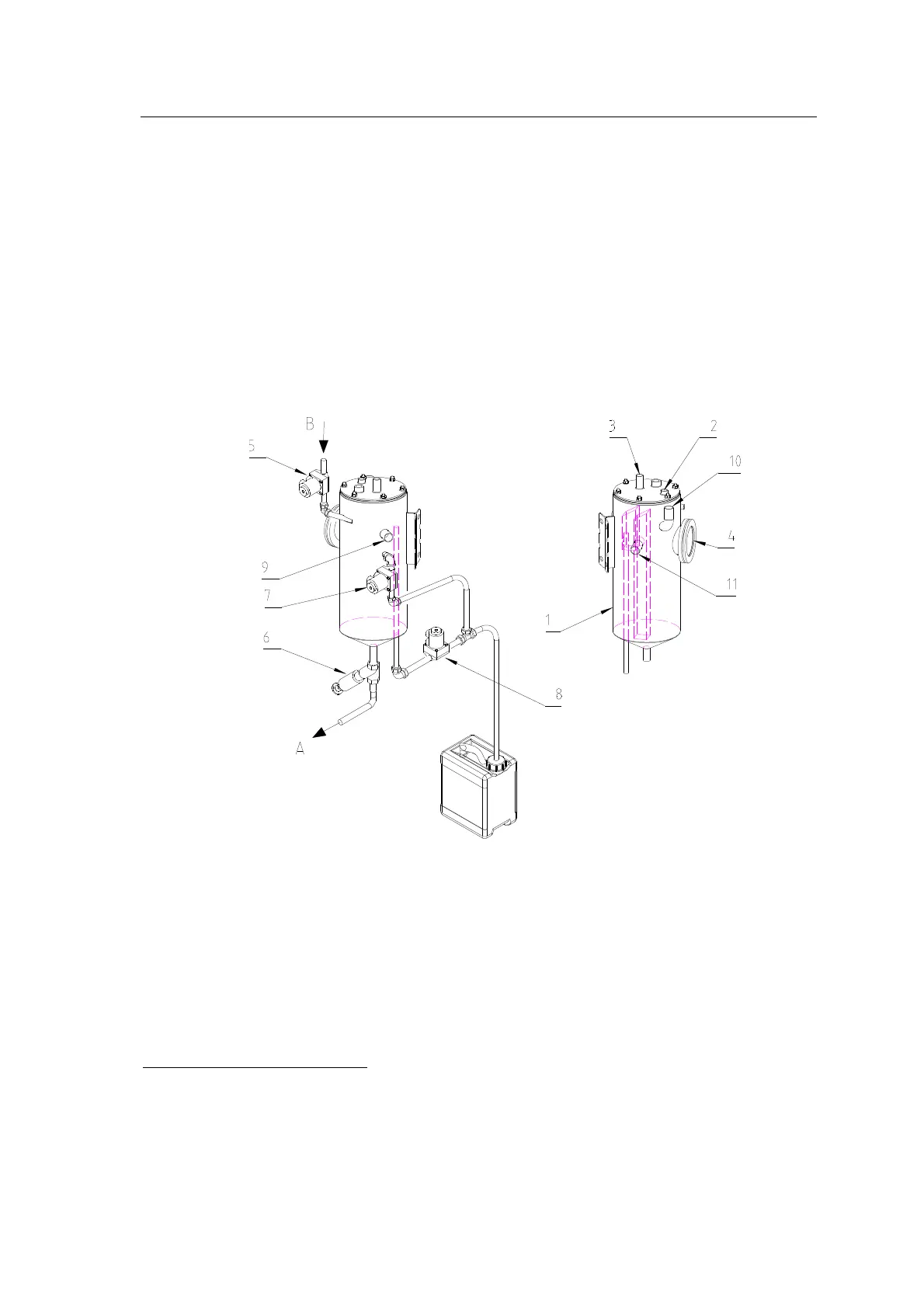

707769-26-0
1 Water separator
2 Ventilation and aeration atmospheres
7 Drain, water phase from water
separator
3 Aeration, tank compensation 8 Water overflow
4 Sight-glass, water separator 9 Inlet, drying
5 Rinsing, water separator 10 Distillation inlet
6 Drain, water separator 11 Perc overflow to clean tank
A – Pumping to distillation
B – Pump line from clean tank
Semi-automatic water separator:
If the machine is equipped with a semi-automatic water separator, the valves 13, 11, and 7 are to be
operated manually.
Upon start of the maintenance program P54 you are lead through the program by various notes.
With the multi-maintenance program P49 there is no rinsing of the water separator integrated!
