88

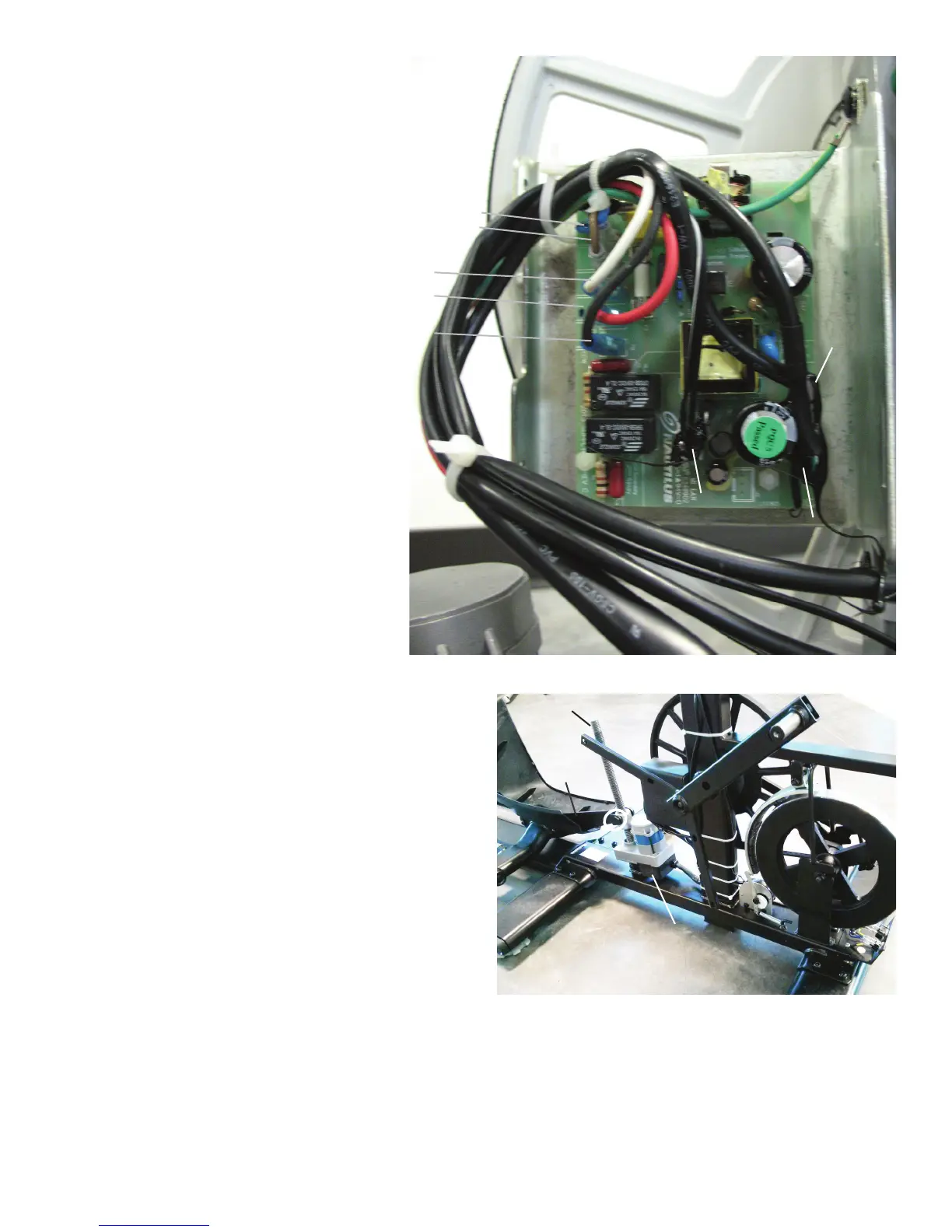

21. Disconnect the Lift Motor cable from
the Motor Control Board after noting the
connector locations.
Note: Be sure to note where all cables
attach for re-assembly.
22. Remove the zipties that hold the
cables.
Power Inlet (line)
Power Inlet (neutral)
Lift Motor Wire (to
Console)
Lift Motor position
potentiometer
Servo Control
Lift motor common
(neutral)
Lift Motor CW (line)
Lift Motor CCW (line)
23. Using the 18mm socket and wrench and 18mm open end
wrench,loosenandremovetheindicatedhexheadbolts(byoval)
that attach the Incline Adjuster Assembly to the Lift Motor shaft. Set
the bolts aside for reassembly.
Lift Motor Assembly
Incline
Adjuster
Assembly
Lift Motor Shaft
