Bowflex BXE116 - Page 89

89

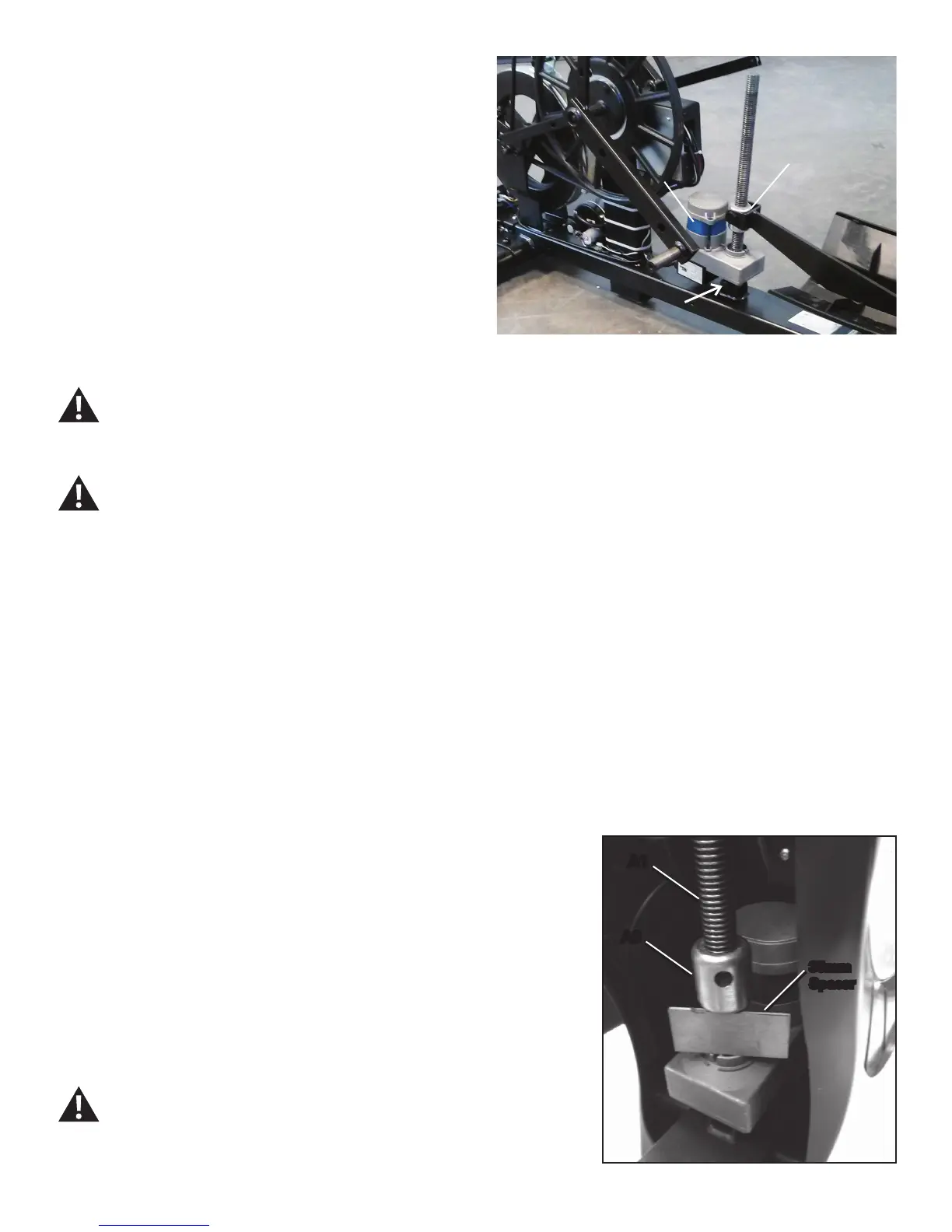

Lift Motor Collar
Nut
Lift Motor Assembly
24.Removetheindicatedhardware(byarrow)thatattachestheLiftMotor
Assembly to the Frame.
NOTICE: Do not crimp any cables.
25. Remove old Lift Motor assembly, and discard.
26. Install the replacement Lift Motor assembly and hardware to the
Frame.
Note: Do not connect the Incline Adjuster Assembly at this stage.
27. Connect the Lift Motor cable to the proper locations on the MCB. Secure the cables with zipties.
Use the top screw to attach the green Lift Motor ground wire to the Frame. Be sure not to crimp any cables.
28. Turn the power on.
Machine is on. Current is active. There is risk of electrical shock.
29. From the Power Up Mode screen, push and hold down the PAUSE/STOP button and Down arrow button for 3 seconds until the Console displays
the TOTAL RUN HOURS.
30. Push and hold the PAUSE/STOP and DOWN arrow buttons for 3 seconds until the FIRMWARE VERSION STRING is displayed.
31. Push the DOWN arrow button until it displays ENTR INCL TST and push ENTER to start the test.
32. The Console will display INCLINE TEST and work through the numbers 1,2,3 as the motor moves. INCLINE TEST PASS will be displayed when
done and successful.
33.Whenthemotorhasstoppedturning,adjustthenut(A2)ontheshaft(A1)to35mmabovetheLiftMotorbase,usingaruleror35mmspacer.
34.Adjustthenut(A2)upwardawayfromthemotorbaseuntiltheholesinthenutalignwiththe
holesintheInclineAdjuster(J)bracket.Installthehexheadbolts(K)tosecurethebracketto
the nut.
35.PushtheENTERbuttontoexittheTSTmenu,andthenpushPAUSE/ENDtogobacktothe
Power-Up Mode screen.
36.Pushthe15*liftpresetbuttontoconrmcorrectoperation.Pushthe1*liftpresetbuttonto
conrmcorrectoperation.
Disconnect all power and allow to sit for 5 minutes.
A1
A2
35mm
Spacer
