Bowflex BXE116 - Page 90

90

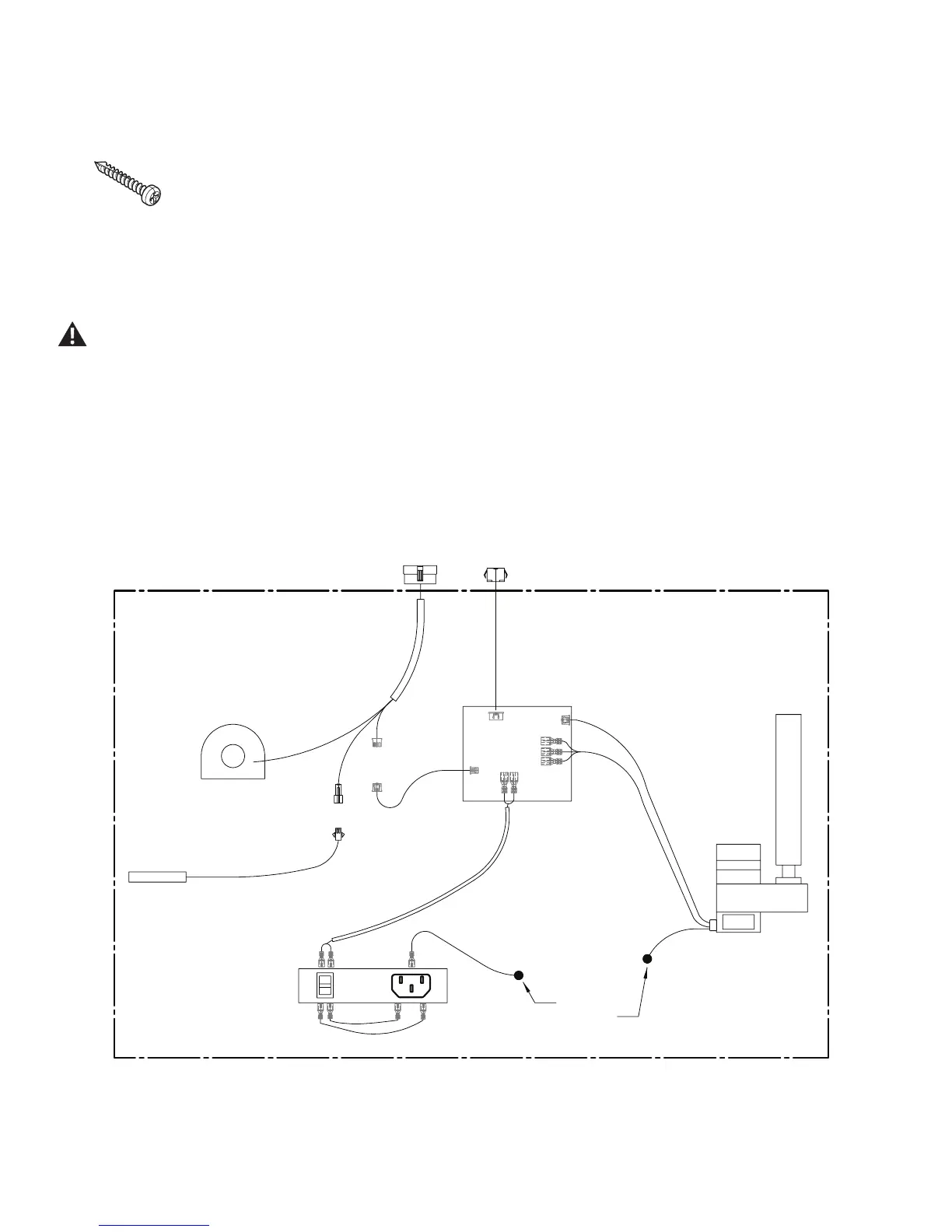

SWITCH
PWR
3 2
4 1
L N
G
WIRELESS HR MODULE
CONSOLE
PCB
SERVO
SPEED
SENSOR
MCB
TO HR CONTACTS
LIFT MOTOR
ON/OFF
EARTH
GROUND
FAN
RIGHT
SPEAKER
LEFT
SPEAKER
USB PCB
WIRELESS HR
REMOTE
RESISTANCE
REMOTE
INCLINE
CONSOLE MAST
ENGINE
LEFT HANDLEBAR RIGHT HANDLEBAR
37.Re-assemblethemachineinthereverseorderofwhenthepartswereremoved.PuttheLeftShroudinpositionrsttoalignthescrewsforthe
RightShroud.Installthetopscrewsrst.BesurethetabsintheMotorizedLiftCoversnapintotheSideShrouds.
NOTICE: This step may require two people. Be sure not to crimp any cables.
Note: Self-tapping screws attach the Shrouds to the Frame.
38. Inspect your machine to ensure that all hardware is tight and components are properly assembled.
Do not use until the machine has been fully assembled and inspected for correct performance in accordance with the Owner’s
Manual.
