95

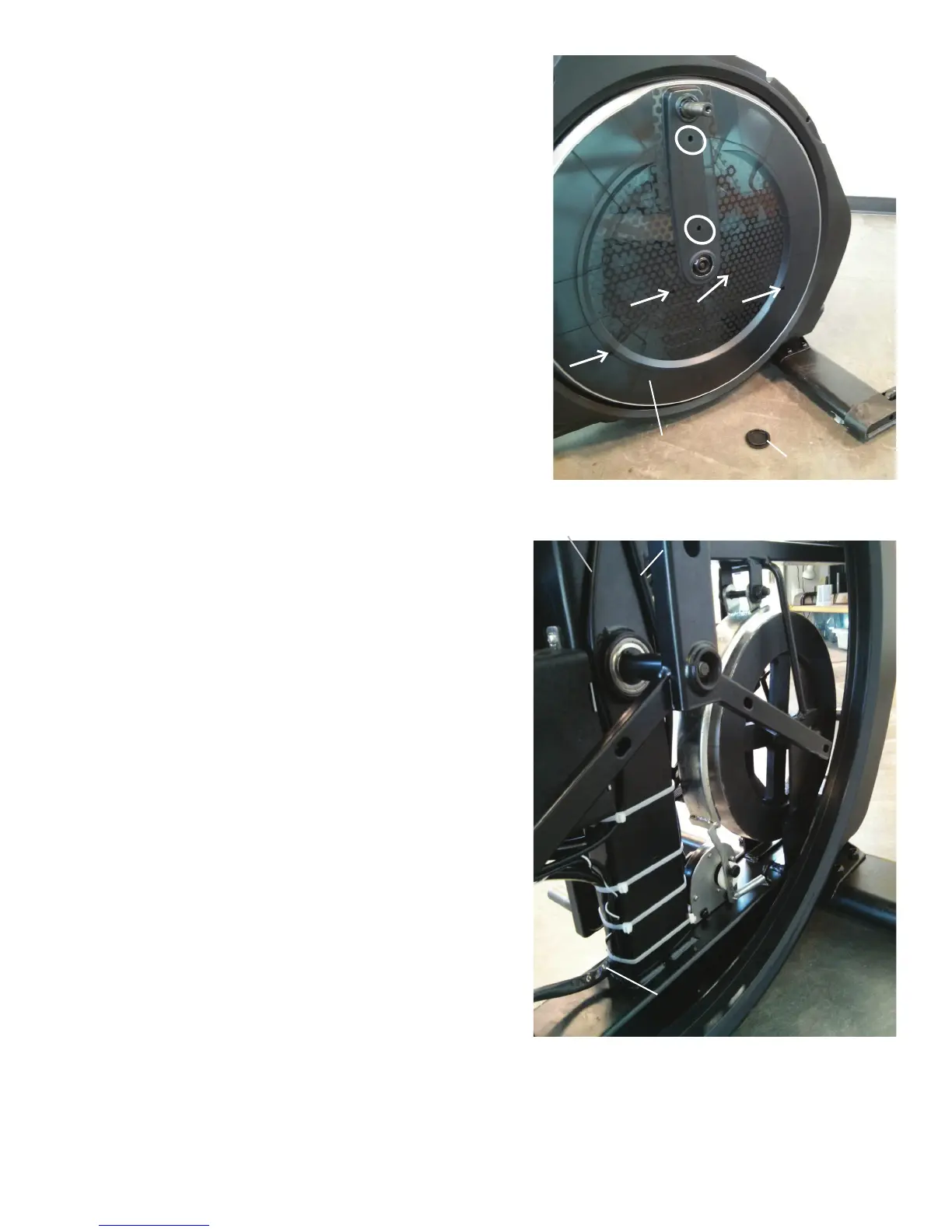

14.Usingasmallstandardscrewdriver,gentlyprytheCapoffofthe
center of the Right Crank Cover.
15.Usinga#2Phillipsscrewdriver,removethe6indicatedscrews(ovals
andarrows)fromtheRightCrankCover.
NOTICE: To assist with re-assembly, observe that the white arrows
are the longer screws.
16.ObservethecableroutingfromtheMotorControlBoard(MCB)
Assembly on your machine.
• PowerInletCable(PowerswitchtoMCB)
• LiftMotorCable,Lower(LiftMotortoMCB)
• LiftMotorWire,Upper(MCBtoConsole)
• ServoControlWire(MCBtoServoMotor)
• SpeedSensorCable(SpeedSensortoServoMotor)
• Input/Output(I/O)Cable(ServoMotortoConsole)
Note: Be sure to note where all cables are routed for re-assembly.
Crank Cover
Cap (removed from
center of Crank Cover)
MCB
Cover
Input/Output (I/O) Cable
Lift Motor Cable
Lift Motor Cable
