BowFlex C7:  Why isn't the resistance shown on the console?
about:blank
4/5
2. Check if the main cable is crimped or damaged. Using a Phillips head screwdriver, remove the 4 screws from the back
of the console. Lift the console and inspect the cable. If the cable coming from the console is damaged, order a
Console[12152.H]. If the cable coming from the frame is damaged, order a Main Data Cable[12152.I].
3. If the issue persists, check the Resistance Sensor. Using a Phillips head screwdriver, remove the 4 screws attaching the
fender to the frame above the flywheel (reference 2).

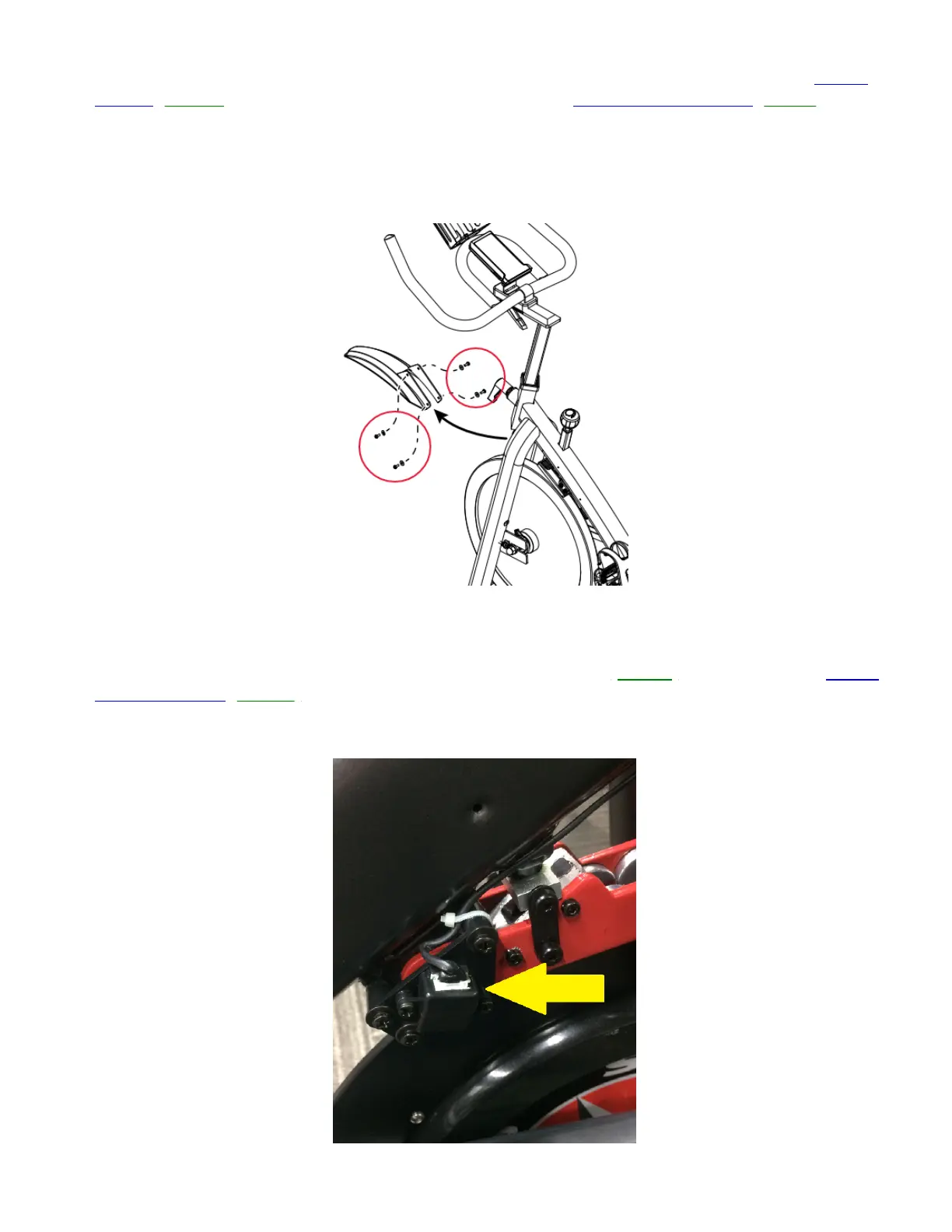

(Reference 2)
The fender is attached to the frame by 4 screws, shown on the left side of the image circled in red.
4. The Resistance Sensor (reference 3) is located on the right-hand side of the bike. Unplug the sensor wire and firmly
plug it back in. Check to see if the resistance registers on the console now[12152.J].If the issue persists, order a
Resistance Sensor[12152.K].
(Reference 3)
The yellow arrow indicates the location of the Resistance Sensor.
