Bowflex® TreadClimber® Assembly and Owner’s Manual

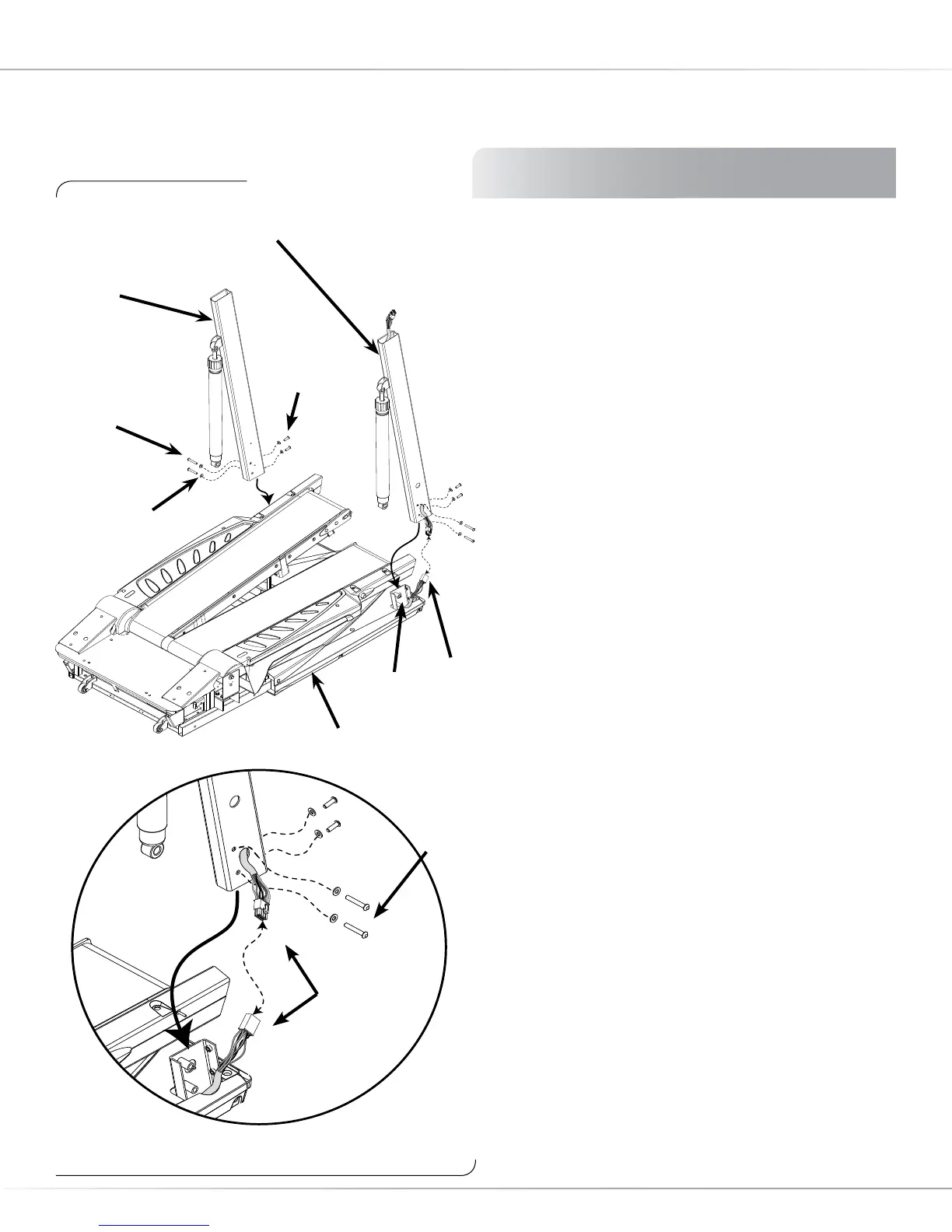

Figure 2: Installing Upright Supports
Left Upright Support
Right Upright Support
Base Assembly
Flat Washers
Wiring
Harness
1 inch Screw
1-3/4 inch Screw
Continued Step 1: Installing Upright Supports
1-3 Verify that the wiring harness connectors are
accessible at the top and bottom of the Right
Upright Support.
1-4 Connect the wiring harness from the bottom of
the right upright to the Lower Control Board by
connecting the pin connectors (see Figure 2).
1-5 Repeat Steps 1-2 and 1-3 on Left Upright Support to
install onto the Base Assembly support bracket.
ASSEMBLY PROCESS
Wiring Harness Close -up
Pin Connectors
Upright Support
Bracket
NOTE: Install side
screws first, then
front screws.
To Next Page
