Ensure the maximum permissible operating pressures are not exceeded.
NB: Before the oil cooler is disconnected it must be allowed to cool and
be depressurized. The supply and return from the cooler should
be isolated to minimise uid loss.
2. Installation
2.1 Transport / storage
The oil cooler must be drained prior to transportation. Once drained
and dry, the oil cooler must only be stored indoors in a non-aggressive
atmosphere. The connections should be capped to avoid ingress of dirt and
contaminants.
2.2 Fitting
Before tting, the cooler should be checked for visible signs of damage. The

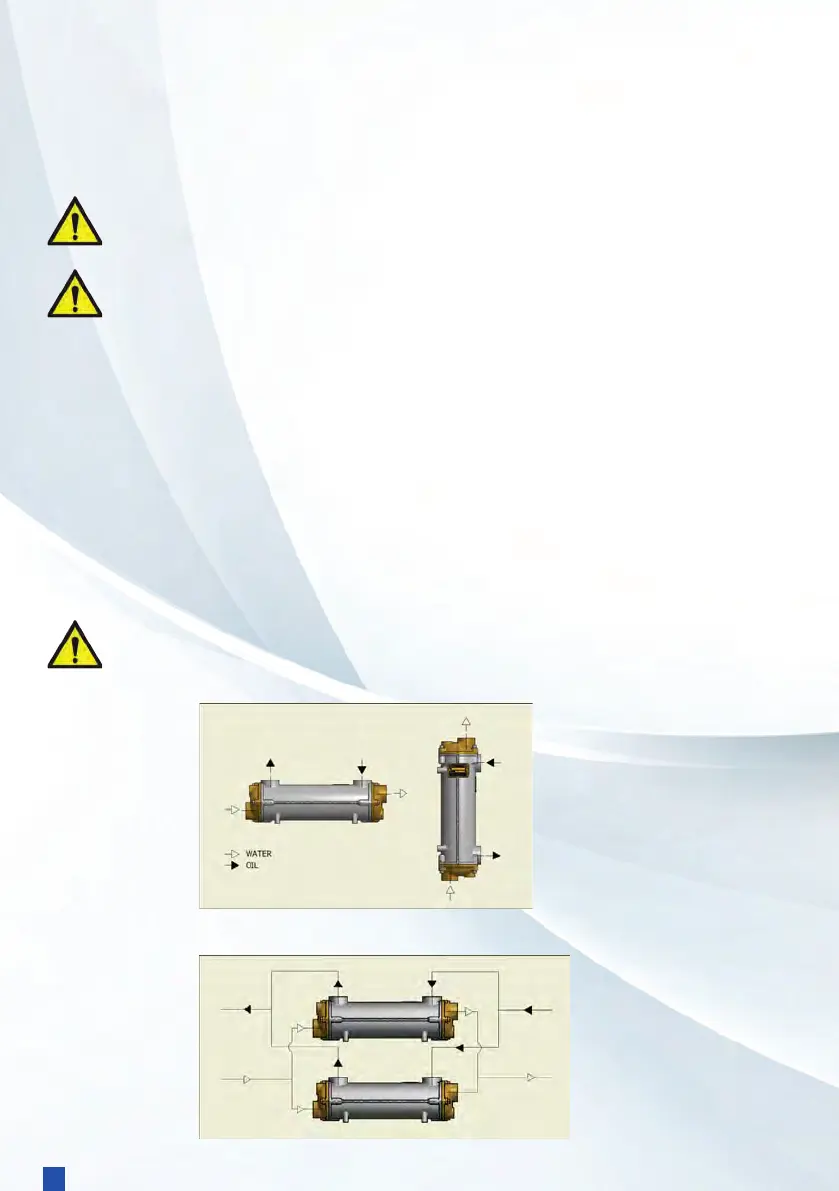

oil cooler should be connected in counterow so that the uids ow in opposite
directions, as shown in the illustration below:
1.4 Potential Hazards
Take Care
2
4
The maximum permissible operating temperature must not exceed:
Oil side: 120º C
Cooling Water side: 110ºC
Variants with higher temperature and pressure ratings are available. Please
contact the Sales for further details
Caution
Take Care
Multiple units can be connected in parallel.
