BOXER 600HD - Section 2 - Operating Controls; Component Locations; Right Front View

2.1
Section 2 - Operating Controls
Component Locations
Right Front View

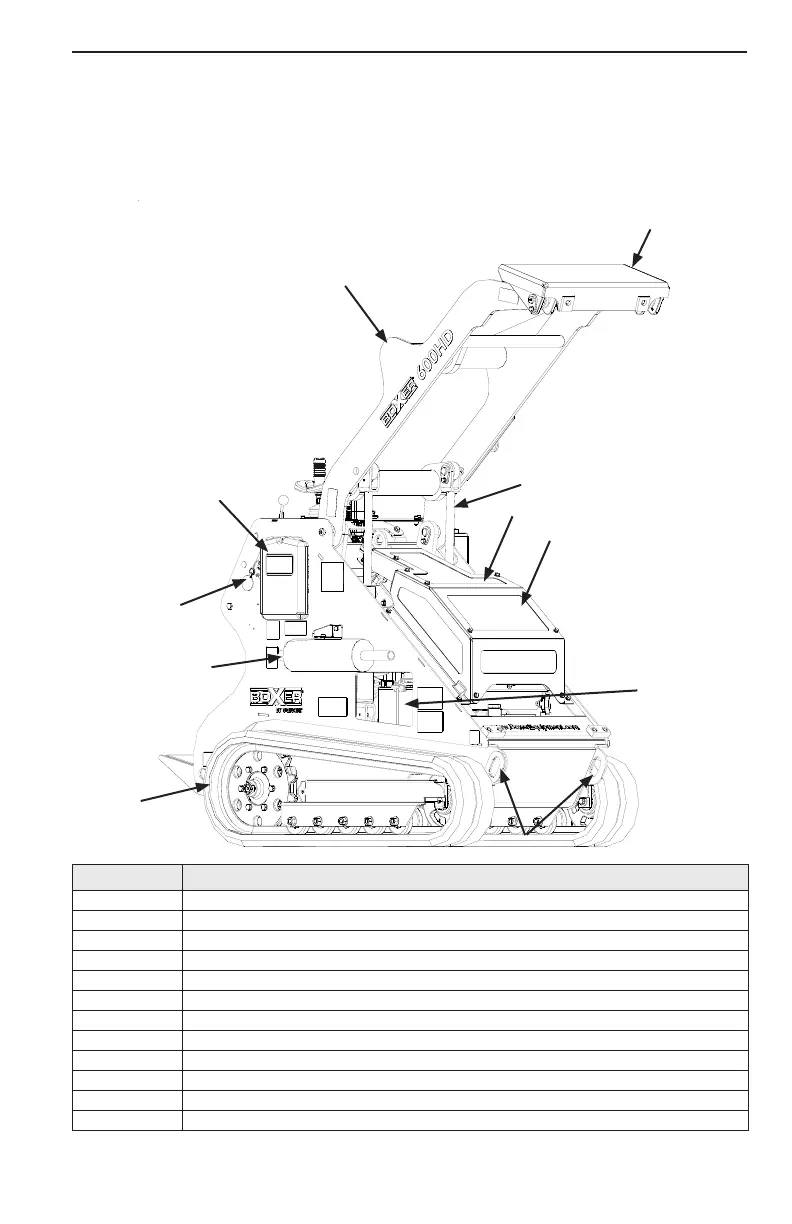

Item No. Description
1 Attachment mounting plate
2 Loader arms
3 Boom lift cylinder
4 Hydraulic cooler
5 Document holder
6 Engine radiator
7 Ignition switch and hour meter
8 Front tie-down ring
9 Right track assembly
10 Battery
11 Mufer
6
1
3
2
5
7
8
11
9
10
4
