Routine Service and Maintenance
4.3
3. Check engine oil:
a. Make sure that the engine is OFF.
b. Pull out dipstick (Item 1, Figure 4–2) and look for both the full and add oil lines. The
correct level is between those two lines.

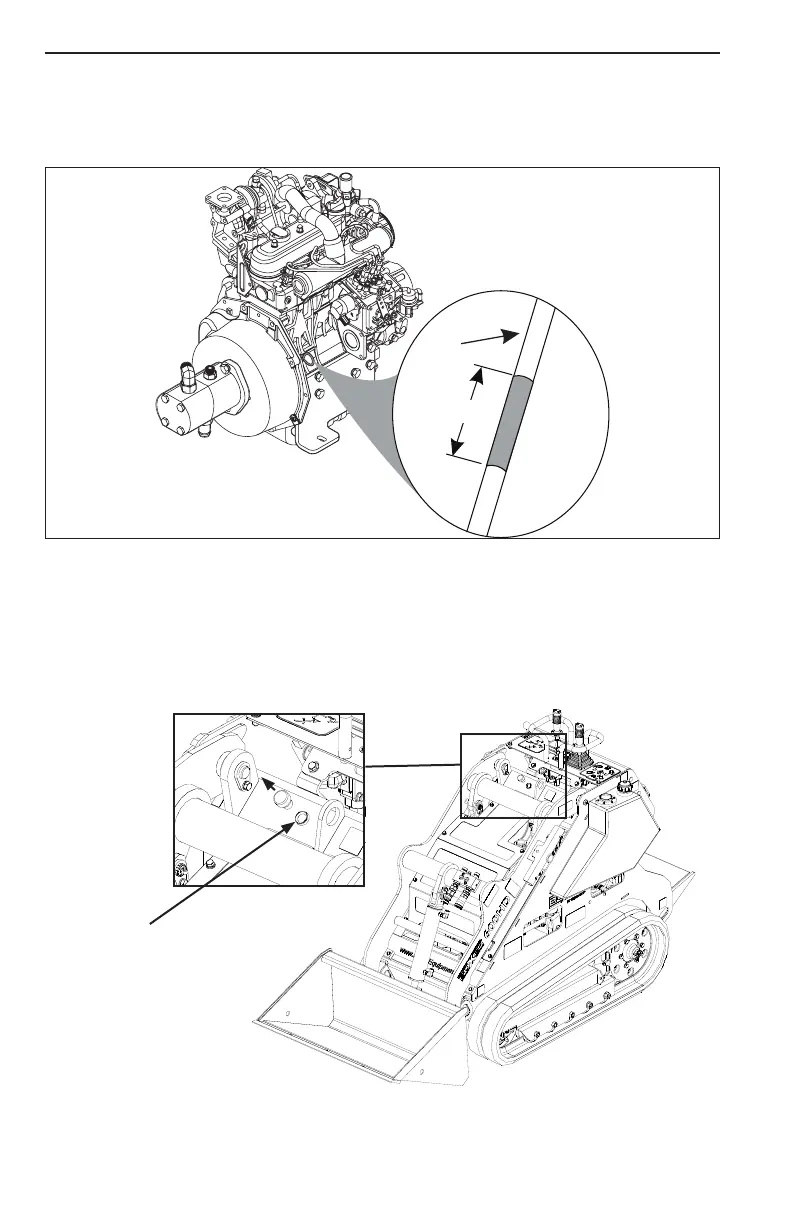

Figure 4-2 Oil Level Check
c. If the engine oil level is below the add line, carefully add the proper amount of oil
through the engine oil ller (Item 1,
Figure 4–3) The oil ll port is remotely located
adjacent to the boom arm pivot, as shown in gure below . It is important to add the
correct type of engine oil as stated in the engine manual.
NOTE: Make sure to reinstall and secure the oil ller cap.
OK
x
x
x
x
x
F
A
1
1
Figure 4-3 Engine Oil Fill Port
