BOXER 600HD - Page 64

Routine Service and Maintenance
4.11

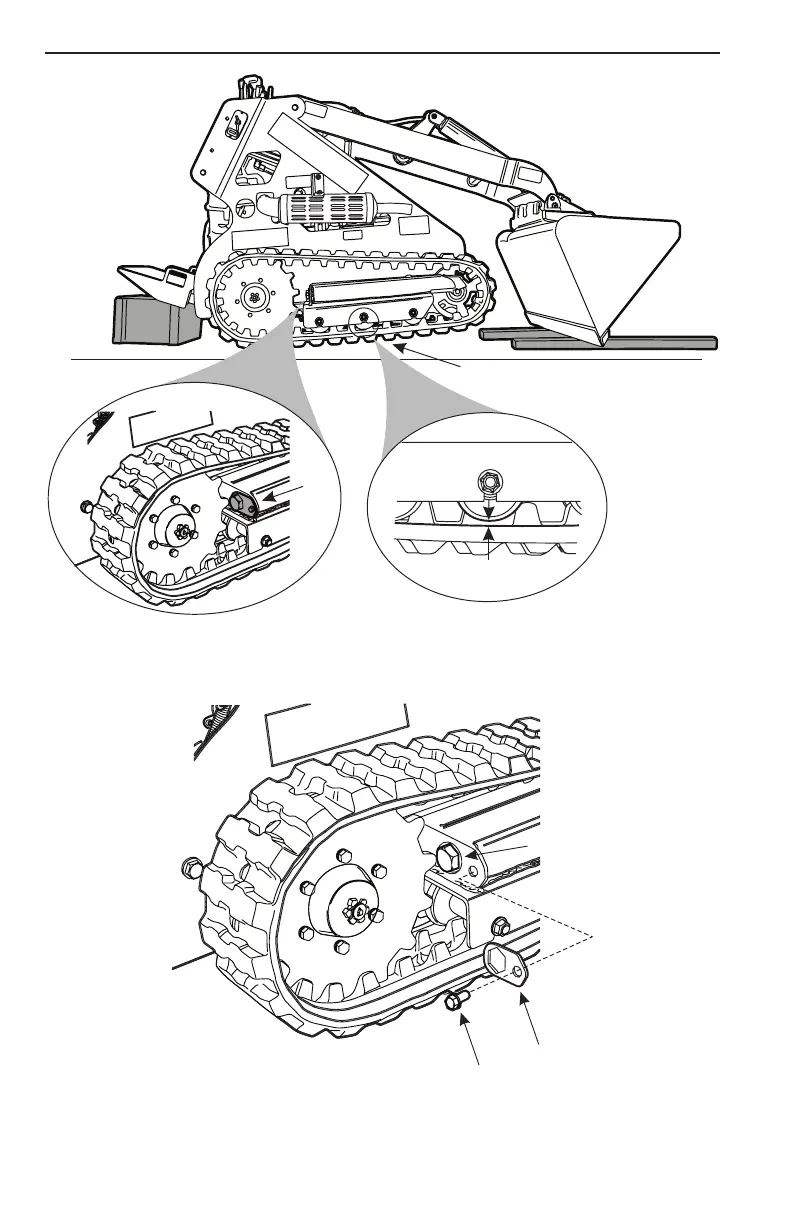

Figure 4-11 Track Deection Measurement and Adjustment
e. Remove track tension lock plate bolt (Item 1, Figure 4–12) using a 9/16” wrench.
f. Remove the adjustment bolt lock plate (Item 2, Figure 4–12).
Figure 4-12 Track Adjustment Bolt Lock Plate
3
2
1
1/4” -3/8”
1
2
