BOXER BM 125 - Removal & Fitment of Seat

Removal & Fitment of Seat
Removal of Seat
• Remove 2 nos. M5 Allen bolts using allen
key on LH & RH.
• Lift the seat from rear side & pull it toward
rear side.
Fitment of Seat
• Match & insert the bracket ('1' of Fig. 'B')
of seat with slot ('2' of Fig. 'B') provided
below the fuel tank on chassis.
• Push seat towards fuel tank and align lugs
('3’ & ‘4’ of Fig. ‘B') with bracket on
chassis & tighten 2 nos M5 allen bolts on
LH/RH side.

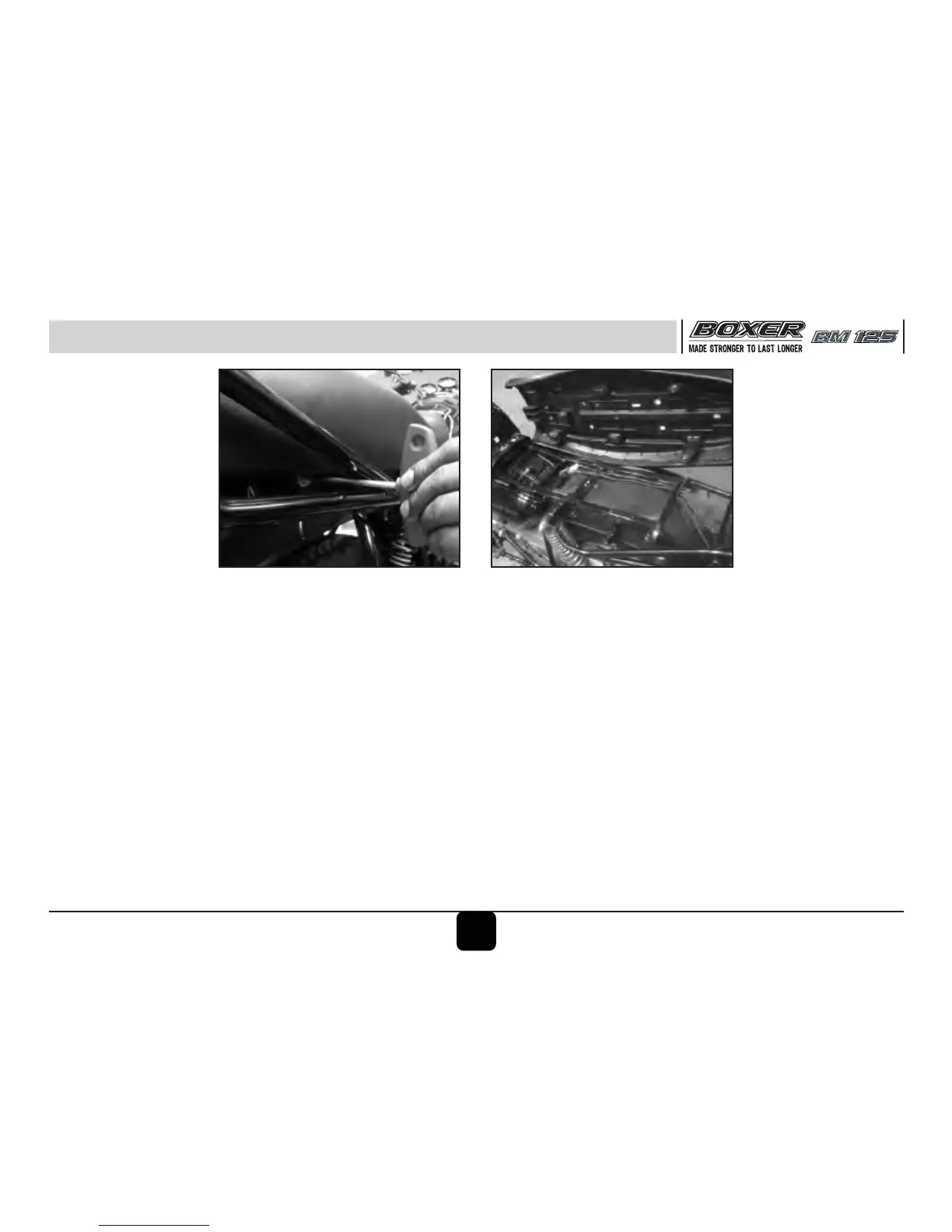

Fig. BFig. A
12
