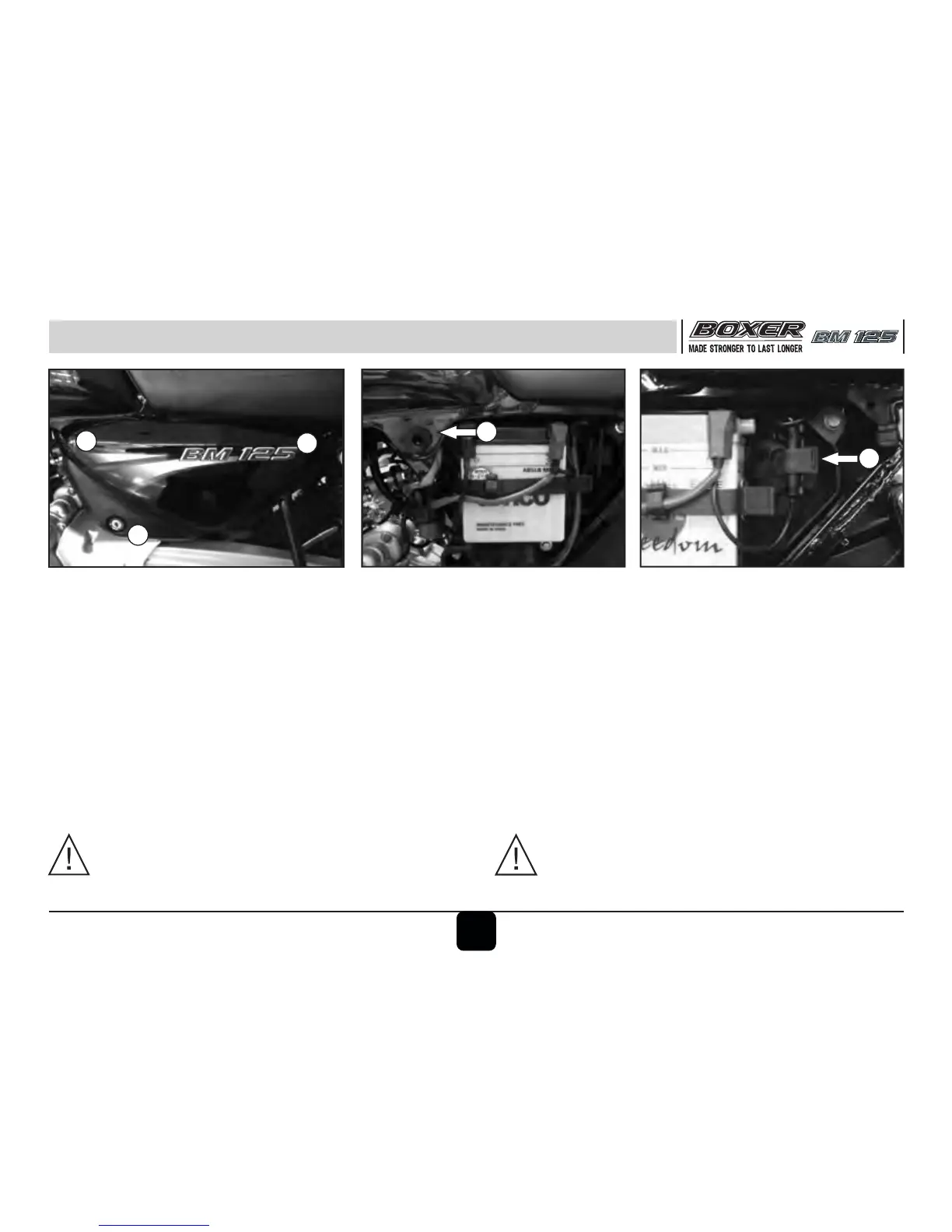

BOXER BM 125 - Removal & Fitment of Side Covers

Removal & Fitment of Side Covers-LH
Fitment of Side Cover LH
• Match & insert the side cover in the
chassis lug "C" & then slide the cover LH
towards rear side.
• Match ‘B’ lug provided on front side of side
cover with hole provided on fuel tank &
press side cover inside.
Removal of Side Cover LH
• Insert the key into the cover lock (A) and
turn the key clockwise.
• Hold the cover with both hands and pull
front side (B) first & slide rear side (C)
toward front side. Take out ‘Side cover
LH’.
CAUTION : Remove cover as described
above, otherwise cover lugs may break.
A
B
C
CAUTION : Ensure tool kit is fully
inserted in tool kit slot.
9
B
C
